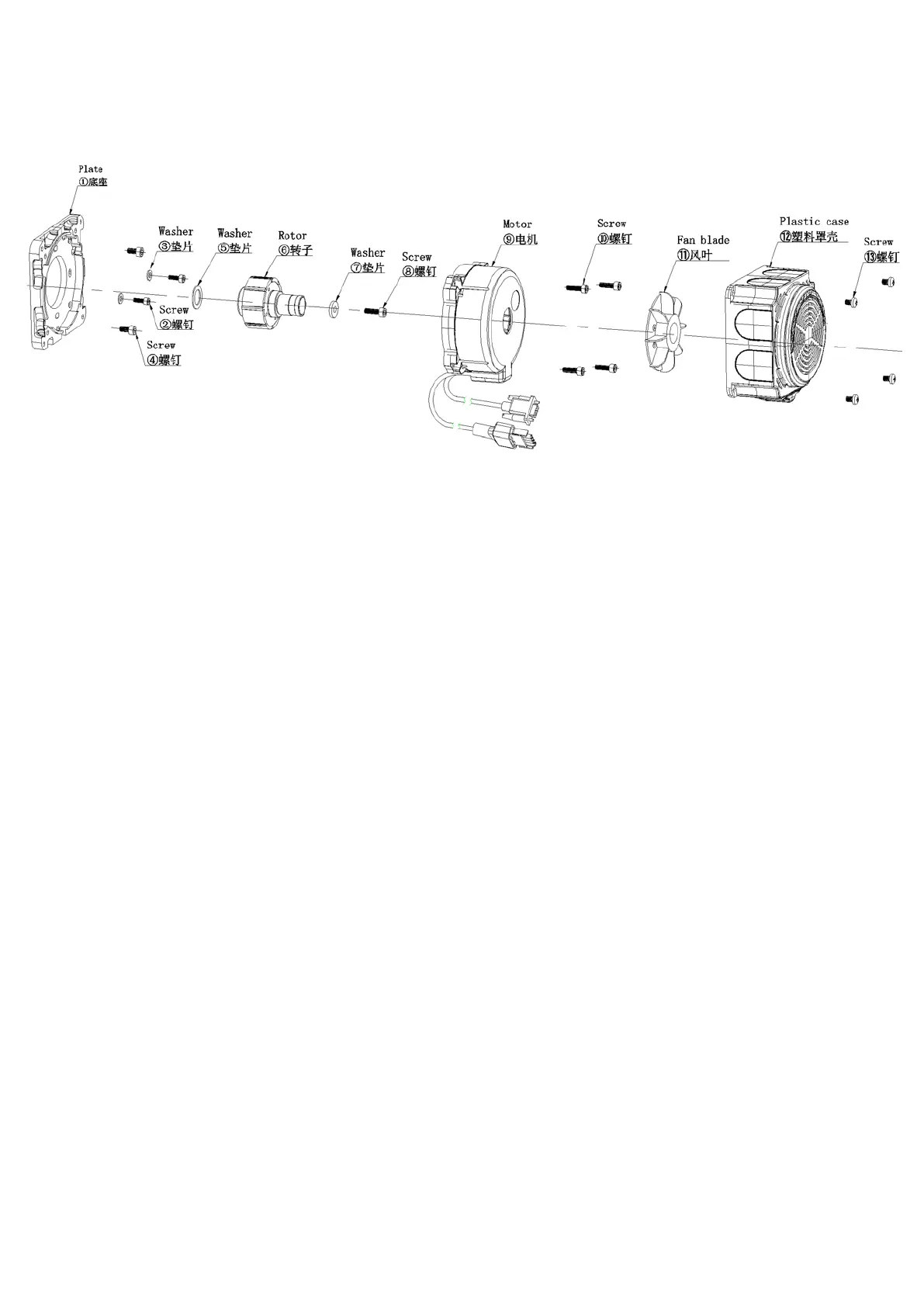

2.直驅電機安裝示意圖:
Schematic diagram of the installation of direct drive motor
直驅電機安裝共 6 步驟：Motor installation of a total of 6 steps
（1）裝底板：Install Plate
a）拆掉縫紉機上的手輪、皮帶、皮帶罩。
Remove the hand wheel, belt cover and wind blade on the sewing machine.
b）如安裝圖所示將圖①底板用圖②④螺釘,圖③墊片鎖在對應的縫紉
機孔位上。
According to the above install picture, use the screw(picture②④) ,
washer(picture③) installing the plate(picture①) into the sewing machine
head.
（2）裝轉子：Install rotor
a)如安裝圖所示將圖⑤墊片放置縫紉機軸上，將圖⑥轉子裝入縫紉機
軸上，用⑥上的螺釘鎖緊，將⑦墊片與圖⑧螺釘固定⑥轉子於縫紉機
軸上
According to the above install picture, put the washer(picture⑤) into the
sewing machine axis, then put the rotor(picture⑥) to the sewing machine
axis, use the screw(of picture⑥) to fix it,) ,use washer(picture⑦)andthe
screw(picture⑧)to fix rotor(picture⑥) in to the sewing machine axis
