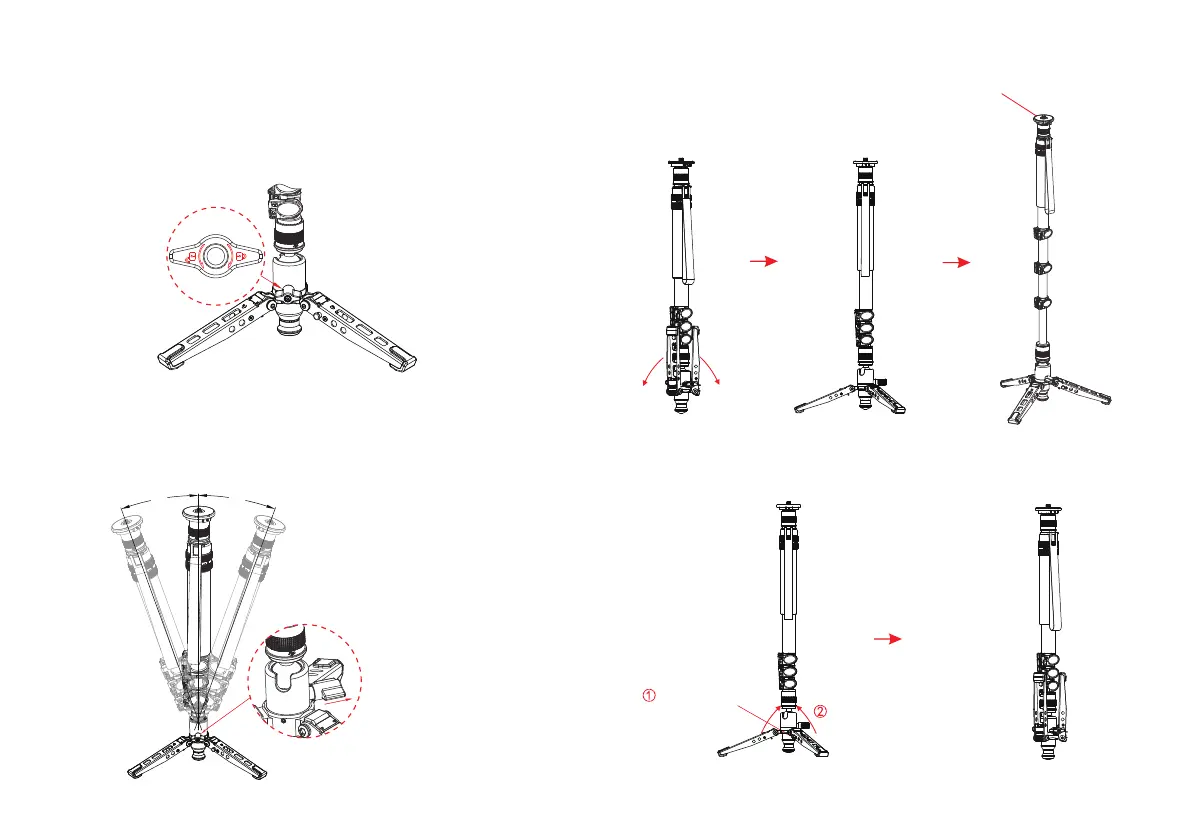

4. Friction Adjustments and All-Round 36° Tilting
4.1 Use the Ball Locking Knob to lock the ball or adjust the friction.
4.2 Loosen the Ball Locking Knob to tilt the monopod 36° in any
direction.
Clockwise Turn: Secure
Counter-clockwise Turn: Unlock
Pull out the knob to change
its position.
5. Tripod Base Setup
5.1 Open the base.
5.2 Fold up the base
Open up the base
in the direction
of the arrow
Press the Release
Button
Fold up the base in the
direction of the arrow
Attach a head or other
photography equipment
to the Mounting Platform.
36°
36°
