AG 02 V4 35 / 80
Seite / Page 35

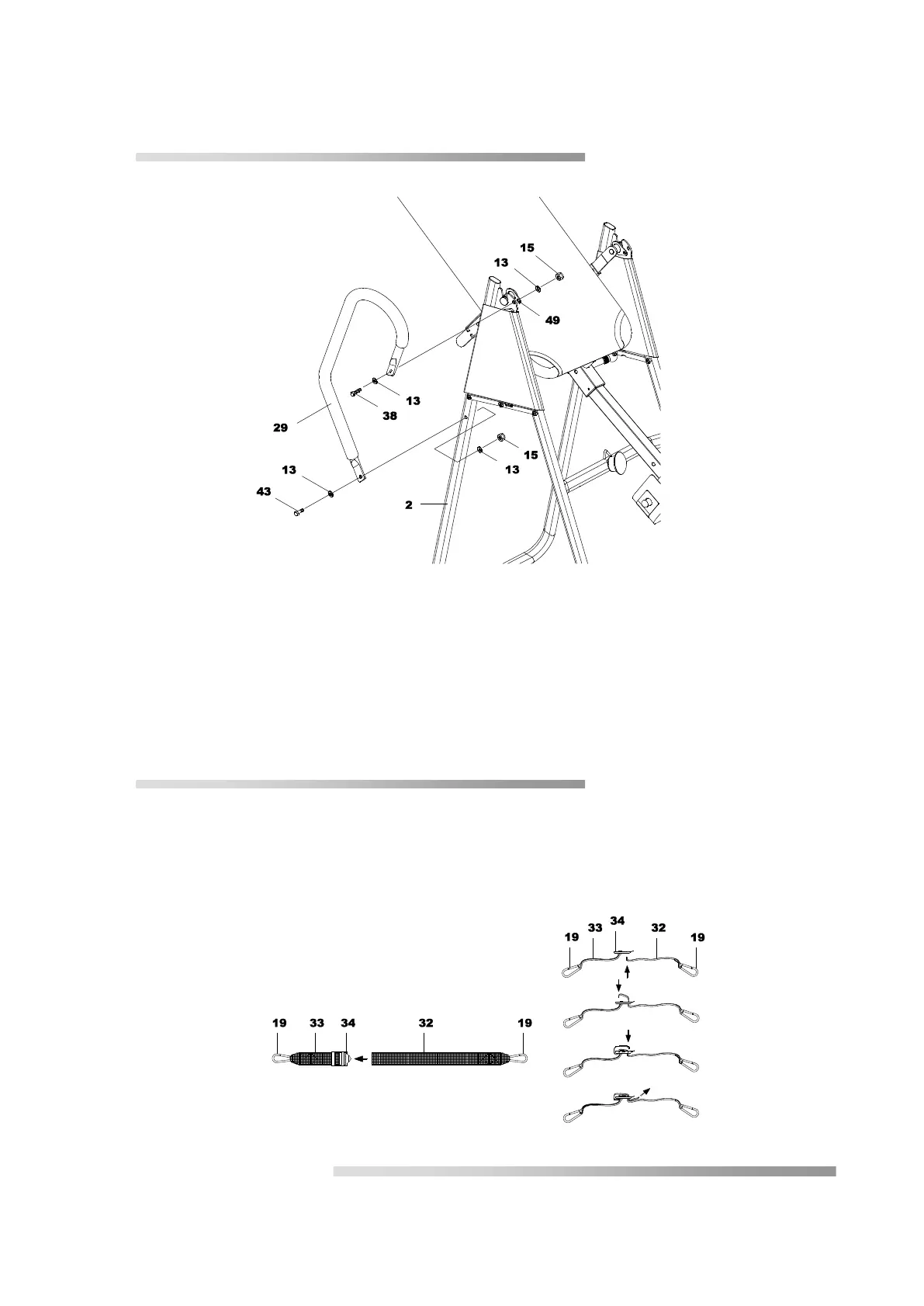

Fastening the grips
Fasten the upper end of the bar grip (29) on the rear U-frame (2) and the pivot arm reinforcement
plates (49) using a hex-head screw (38), a counternut (15) and two washers (13).
Fasten the lower end of the bar grip (29) on the rear U-frame (2) using a hex-head screw (43), a
counternut (15) and two washers (13).
Repeat this procedure for the other bar grip.
Step 8
Fasten the nylon strap to the strap buckle (34) by pulling the end of the strap through the
underside of the strap buckle, over the pre-mounted strap (33) to form a loop and down
through the strap buckle. Now slide the strap back over itself to form a loop, through the
strap buckle and tighten.
