Seite / Page 34

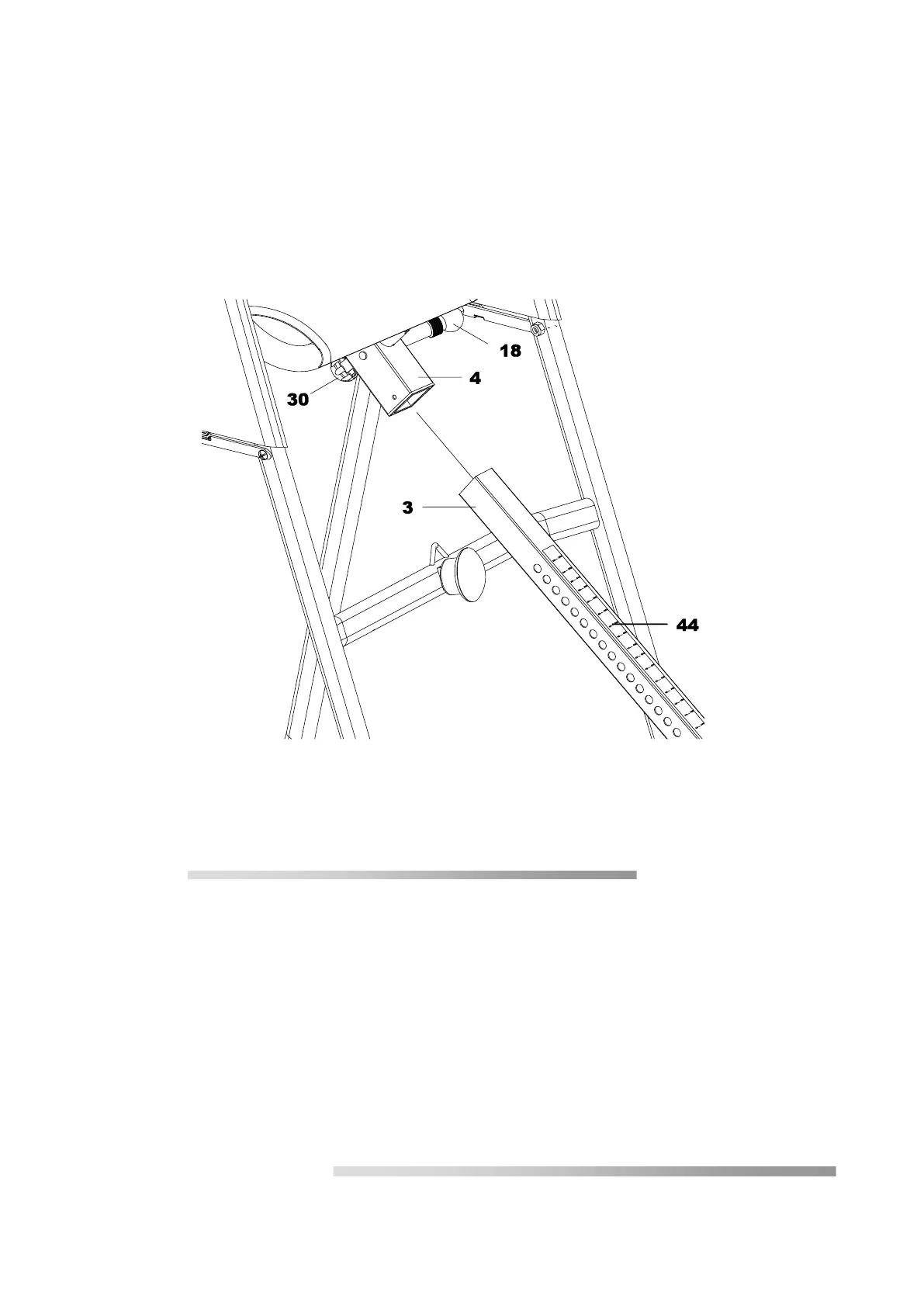

Step 7
Slide the arm (3), with the scale at the top, into the square tube at the lower end of
the table (4). Pull out the large spring button (18) as you do so. Slide the arm
upwards until you reach the desired height value. Refer to the scale affixed to the
arm. You have achieved the correct setting when the desired height on the scale is
positioned at the edge of the table's square tube.
Release the spring catch as soon as the desired height is set and allow it to audibly
engage. Make sure that the spring button "springs" into the correct position. To be
certain, screw the star knob (30) into the threaded openings located at the rear of the
table's square tube and tighten firmly.
