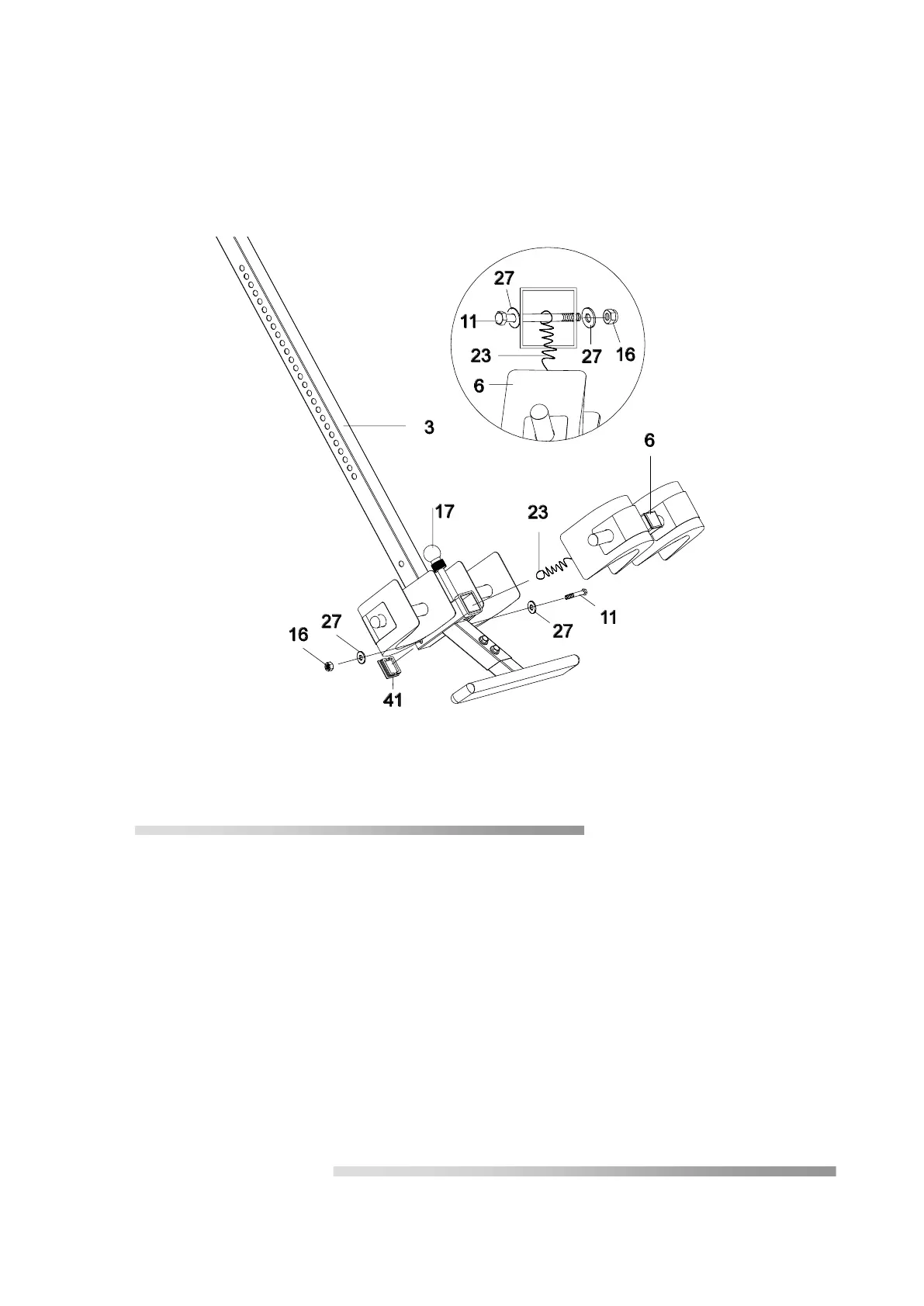

Step 6
Attach the Adjustable Instep Frame (6) to the Adjustable Boom (3) by inserting the Adjustable Instep
Frame (6) into the square bracket on the boom. Slide the Adjustable Instep Frame (6) completely into
the square bracket, insert the M6x47 Hex Head Bolt (11) with a Ø16xØ6.5x1.0 Washer (27) halfway
through the square bracket, slide the M6x47 Hex Head Bolt (11) through the ring at the bottom of the
Spring (23), slide the M6x47 Hex Head Bolt (11) through the rest of the square bracket, and secure at
the other end with a Ø16xØ6.5x1.0 Washer (27) and M6 Lock Nut (16). Attach the Square End Cap
(41) onto the back of square bracket of Adjustable Boom (3).
Note: To slide the Adjustable Instep Frame (6) into the square frame, you must first pull out the Small
Spring Knob (17).
