Sitec 72x72 Timer - Connector Connection; Power Supply and Technical Data

SITEC Srl Elettronica Industriale
05030D23 – TIM_72_EN_R.3
Pag. 2 di 6

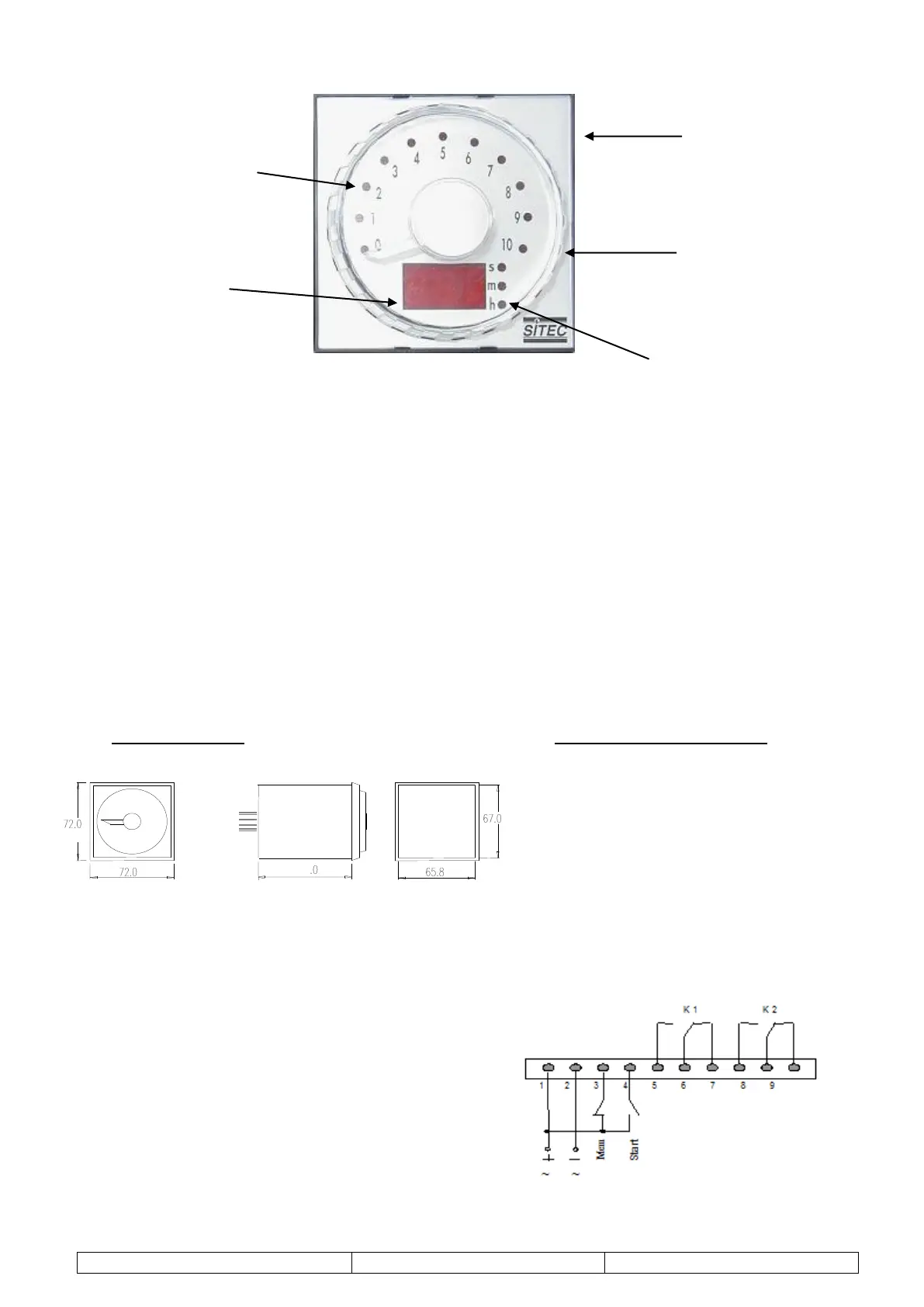

80
Dial of set
cycle time
11-LED graphic bar
Silk screen prints with
10- or 20-scale
Display no. 3
Minutes and tenths/second
on high luminosity display
Power supply : 24 VAC/DC +/-10% 50/60 Hz 250mA
End scale available : 10,20,30
Temperature Limits: Operation mode  -10 +60 °C
Store  -25 +70 °C
Relays : Elettric life  5x10^5 op.
Meccanical life  1x10^7 op.
Max load Current  16 A
Max Voltage  250 Vac
Input: 1 start counter + 1 memory counter
Output: 2 relays 16 A. (TR1,TR2)
Dimensions: Connector connection
no. 1 Power supply (+/~)
no. 2 Power supply (-/~)
no. 3 Memory command
no. 4 Start command
no. 5 R1 NA
no. 6 R1 common
no. 7 R1 NC
no. 8 R2 NA
no. 9 R2 common
no. 10 R2 NC
hole on panel: 68(h) x 67 mm
connector projection: 20 mm
embed length: 100 mm SIDE BOARD
connector: undecal model
Display: no. 3
EXTERNAL COMMANDS
