Sitec 72x72 Timer - Matching Connector Timer with Socket Undecal (Option); Time Scale Selection (DIP 1,2) and Units Time Selection (DIP 3,4); Selection Automatic Restart (DIP 5)

SITEC Srl Elettronica Industriale
05030D23 – TIM_72_EN_R.3
Pag. 3 di 6

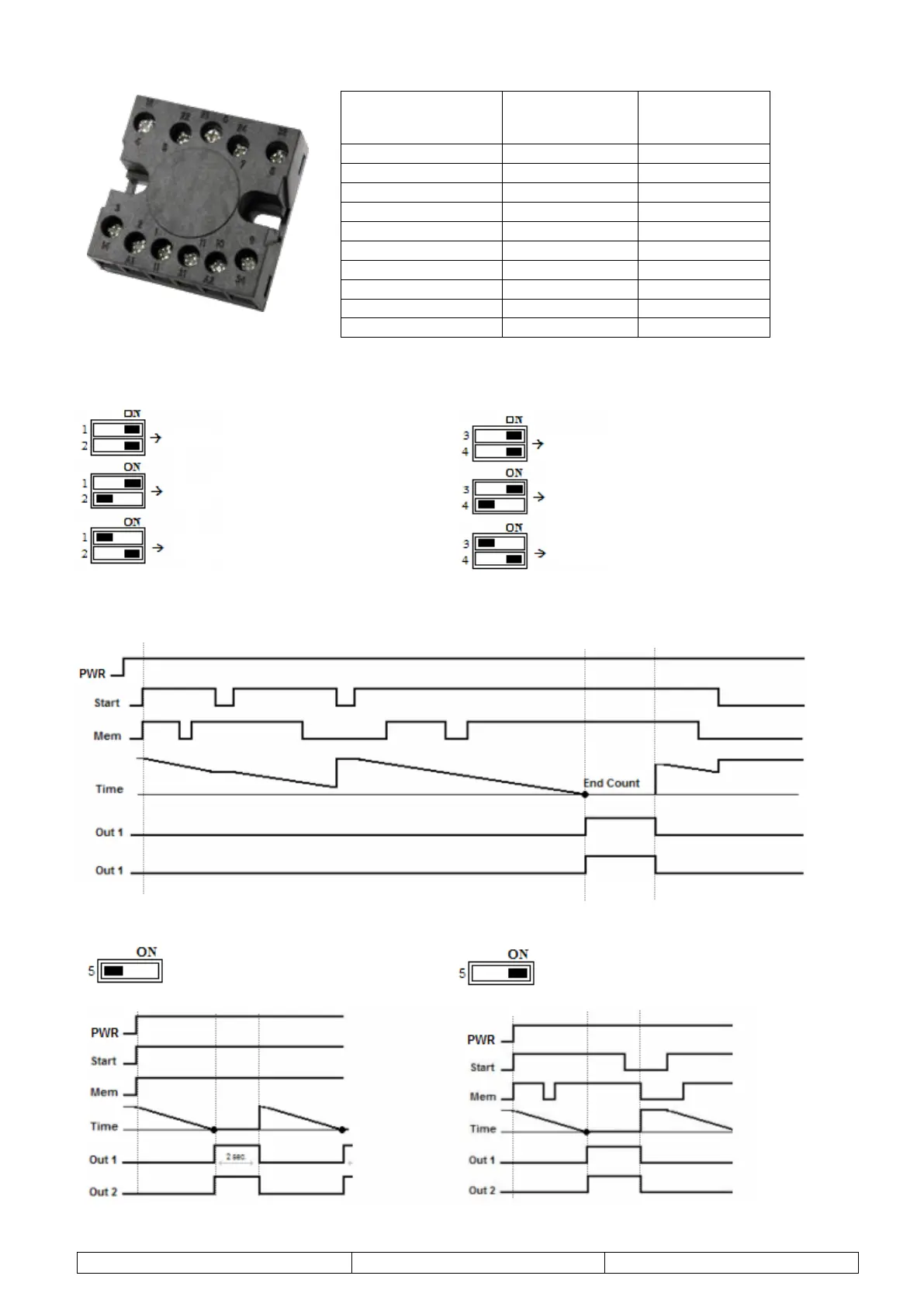

Matching connnector timer with soket undecal (option)
DESCRIZIONE
PINS CONNECTOR
TIMER UNDECAL
PINS SOCHET
UNDECAL
Power supply (+/)
1
11 - 1
Power supply (-/)
2
A1 - 2
Memory command
3
14 - 3
Start command
4
12 - 4
R1 NA
5
22 - 5
R1 common
6
21 - 6
R1 NC
7
24 - 7
R2 NA
8
32 - 8
R2 common
9
34 - 9
R2 NC
10
A2 - 10
Time scale selection (DIP 1,2) Units time selection (DIP 3,4)
Scale 10
Minutes
Scale 20
Seconds
Scale 30
Hours
Time diagram counter cycle
Selection Automatic Restart (DIP 5)
(Automatic Reset) (Reset from “start” + ”mem” signals)
