SJ SwaLLow - Lithium Mode

BATTERY CHECK
WAIT PLEASE. . . .
CHG 0:00 00000
LI + 3.00A 11.800V
BALANCER CON.
NOT CONNECTED
BALANCER CON.
CONNECTED
BALANCER CON.
NOT CONNECTED
BALANCER CON.
CONNECTED
8
Operating Instructions

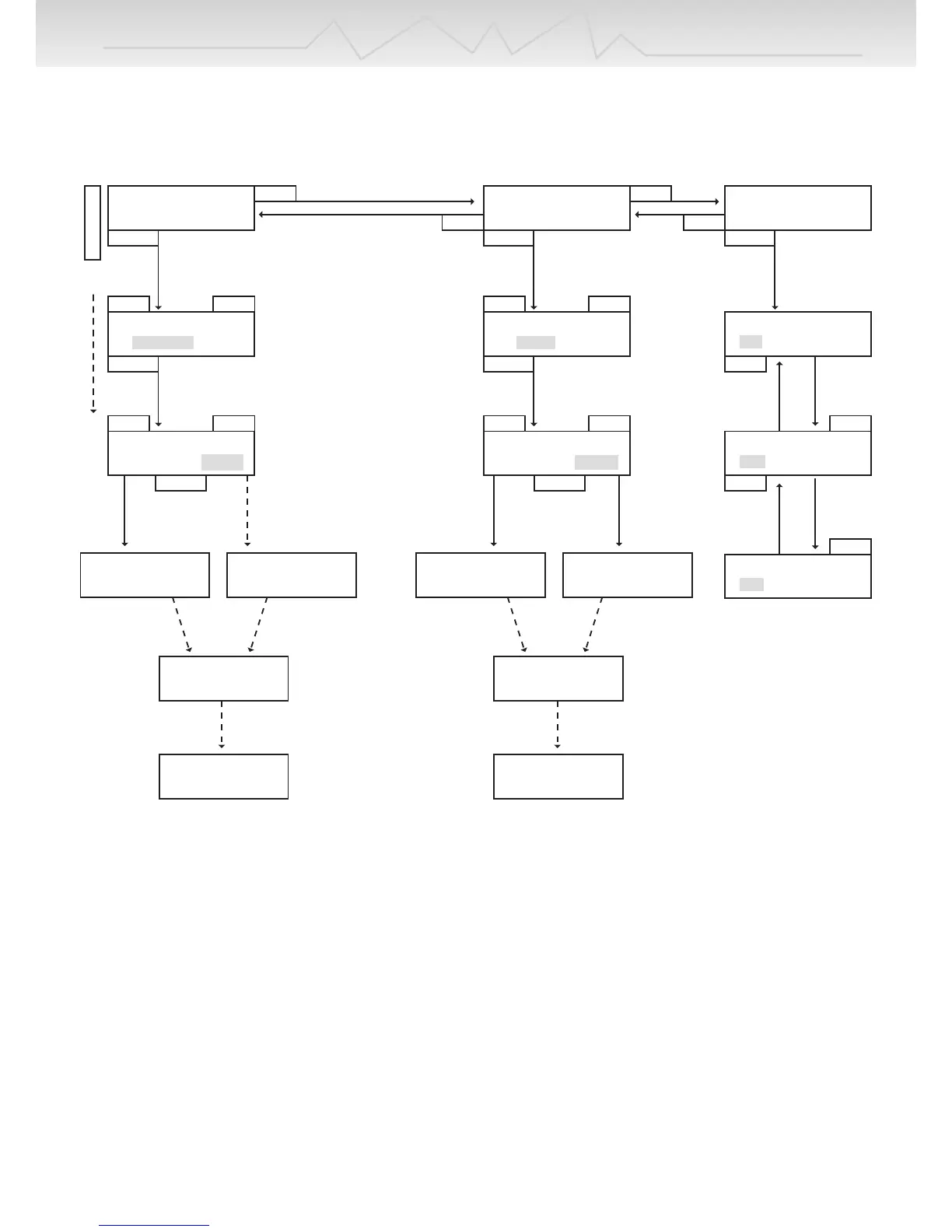

6. Lithium MODE ( Li-Ion / LiPo / LiFe )
LiIo CHARGE
C=3000mAh 10.8Vp
LiIo DISCHARGE
D=0.50 A 10.8Vp
Lithium type
LiIo
LiIo CHARGE
C=3000mAh 10.8Vp
LiIo DISCHARGE
D=0.50A 10.8Vp
Lithium type
LiIo
LiIo CHARGE
C=3000mAh 10.8Vp
LiIo DISCHARGE
D=0.50A 10.8Vp
Lithium type
LiPo
Lithium type
LiFe
BATTERY CHECK
WAIT PLEASE. . . .
DCH 0:00 00000
LI - 0.50A 9.800V
BATT TYPE
INC DEC INC DEC
INC DEC INC INC
INC
DEC
DEC
DEC
START START
ENTER ENTER
ENTER
ENTER
ENTER
DEC
INC
DEC
INC
This charger is capable of charging Lithium-Ion, Lithium-Polymer and LiFePO4 batteries up to 6 cells. This
charger uses “constant current / constant voltage“ in order to fully charge those lithium batteries. Constant
current is delivered during the fast charge. When the voltage of the Li-Ion, Li-Po battery and LiFePO4 reaches
approx 4.1V, 4.2V, and 3.7V per cell, the charger starts to change its charge method from “constant current” to
“constant voltage “. The “constant voltage“ allows the battery to dictate how much current the charger should
deliver for safe, full charges. When the current drops below approx 1/10 currents of user selected battery capac-
ity, the charger will stop charging as the battery is fully charged.
