c. Videos
Short instructional videos are available in the help section of
the apps.
More videos can be found on SKF Maintenance Products
YouTube page: www.mapro.skf.com/youtube

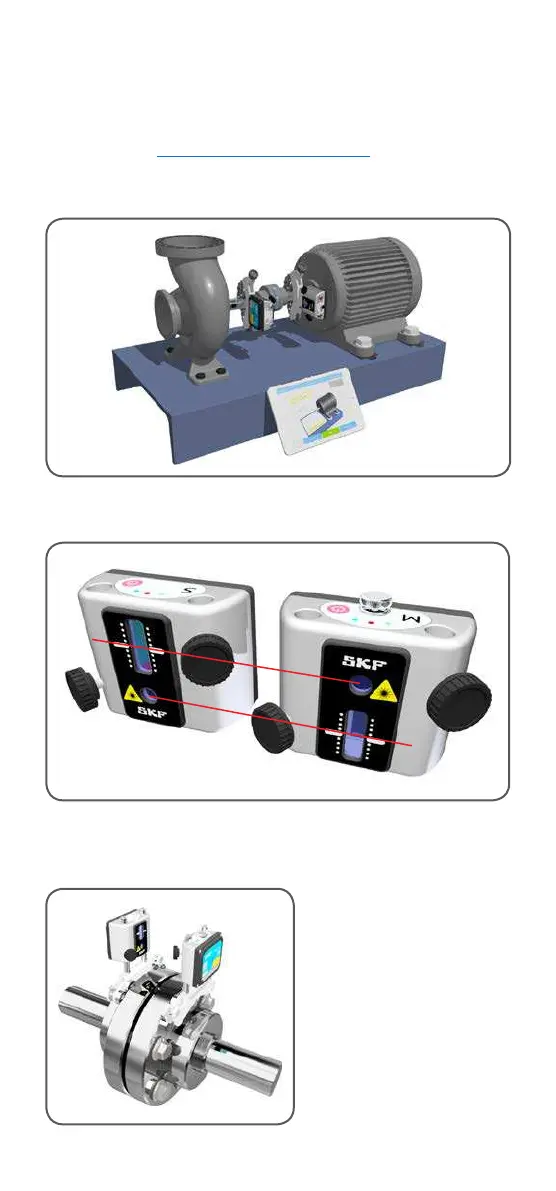

6. Mounting the measuring units
Mount the Measuring unit M on the Moveable machine.
Mount the Measuring unit S on the Stationary machine.
Adjust the measuring units angles and the laser lines to
the middle of the detectors using the “Sensor Status” page
in the apps.
The TKSA 71 can be
mounted directly on
couplings when needed.
