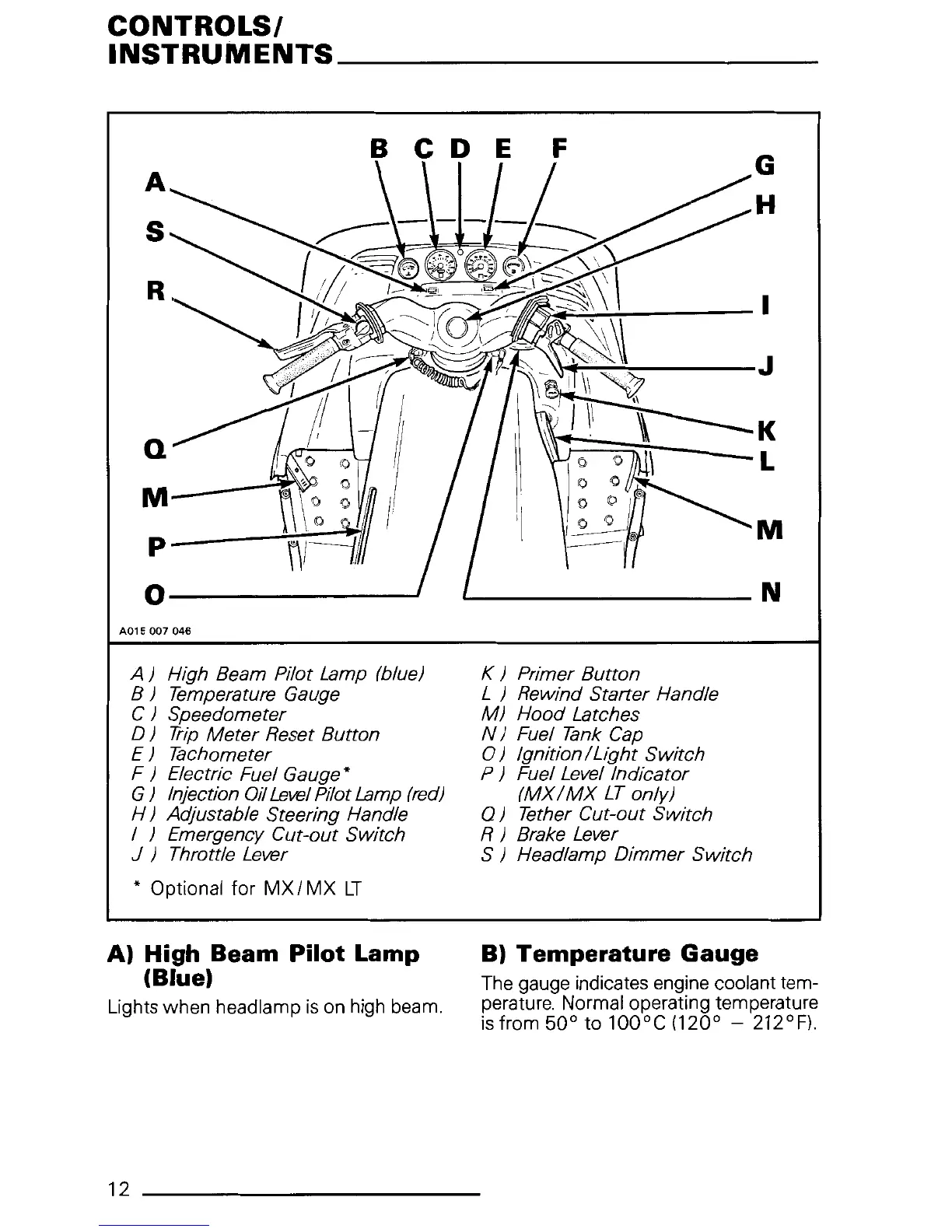

CONTROLS/
INSTRUMENTS
______________________
__
A
s
Q
M
p
0--------------~
A015
007 046
A ) High Beam
P1Jot
Lamp (blue)
B ) Temperature Gauge
C ) Speedometer
D )
Trip
Meter
Reset Button
E ) Tachometer
F ) Electric Fuel Gauge*
G)
Injection Oil
Level
Pilot Lamp
(red)
H)
Adjustable Steering Handle
I ) Emergency Cut-out Switch
J ) Throttle Lever
* Optional for
MX/
MX
LT
A)
High
Beam
Pilot
Lamp
(Blue)
Lights when headlamp
is
on
high beam.
G
H
M
~----------------N
K ) Primer Button
L ) Rewind Starter Handle
MJ
Hood Latches
N)
Fuel
Tank
Cap
0 ) Ignition I Light Switch
P ) Fuel Level Indicator
(MXIMX
LT
only)
0)
Tether Cut-out Switch
R ) Brake Lever
S ) Head/amp Dimmer Switch
B)
Temperature
Gauge
The gauge indicates engine coolant tem-
perature. Normal operating temperature
is
from
50°
to
100°C
(120°-
212°F).
12
-------------------------
