NOTE:
It may
be
necessary to
push against stopper if lever
is
hard to get
in
position.

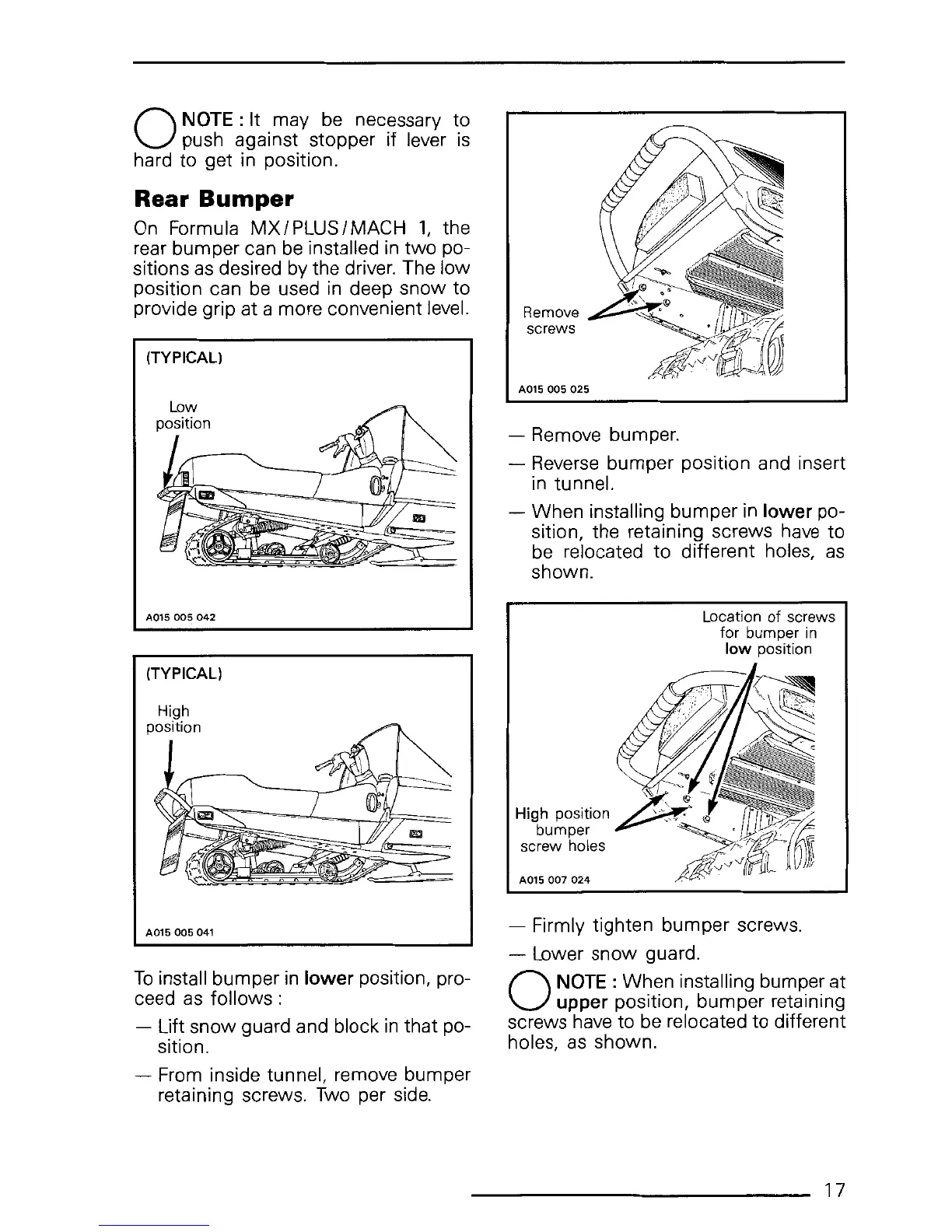

Rear
Bumper
On
Formula
MX
I
PLUS
I MACH
1,
the
rear bumper can
be
installed
in
two po-
sitions
as
desired
by
the driver. The low
position can
be
used
in
deep snow to
provide grip at a more convenient level.
(TYPICAL)
A015
005
042
(TYPICAL)
A015
005
041
To
install bumper
in
lower position, pro-
ceed
as
follows :
- Lift snow guard and block
in
that po-
sition.
- From inside tunnel, remove bumper
retaining screws.
Two
per
side.
Remove
screws
A015
005 025
- Remove bumper.
-
Reverse
bumper position and insert
in
tunnel.
- When installing bumper
in
lower po-
sition, the retaining screws
have
to
be
relocated to different holes,
as
shown.
High position
bumper
screw
holes
A015
007 024
Location
of
screws
for bumper
in
low position
- Firmly tighten bumper screws.
- Lower snow guard.
0
NOTE : When installing bumper at
upper position, bumper retaining
screws
have
to
be
relocated to different
holes,
as
shown.
17
