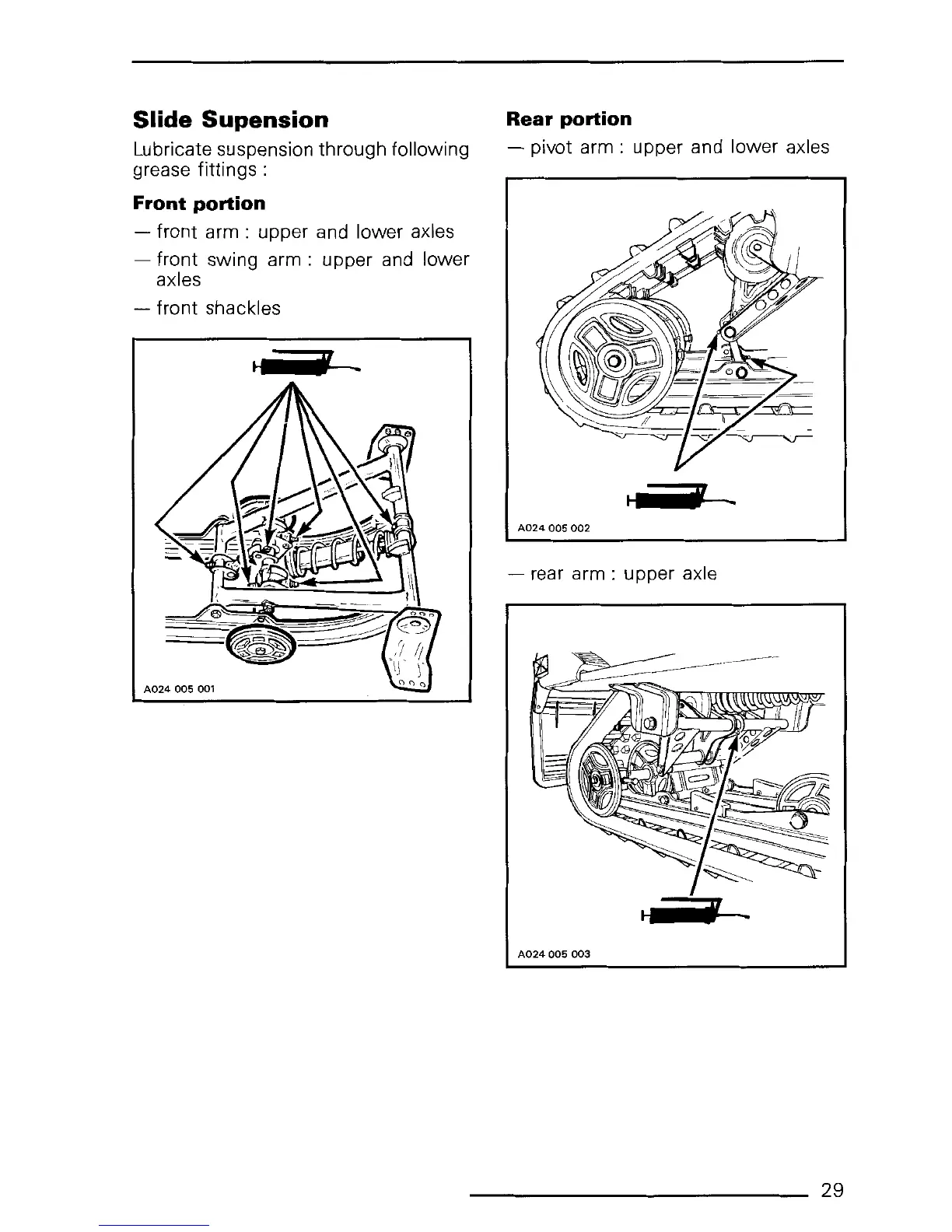

Slide Supension
Lubricate suspension through following
grease fittings :
Front portion
-front arm : upper and lower axles
-front swing arm : upper and lower
axles
-front shackles
Rear portion
- pivot arm : upper and lower axles
A024 005 002
- rear arm : upper axle
A024 005 003
29
