Section 06 ELECTRICAL
Sub-Section 06 (TESTING PROCEDURE)
06-06-1
TESTING PROCEDURE 6
GENERAL
The following chart gives the engine types with
their implemented system.
CDI System Identification
Nippondenso
The NIPPONDENSO CDI system has a separate
ignition coil which is mounted on the reservoir
cluster.
1. Ignition module is connected to the ignition
generator coil via a 3-wire connector (RED,
BLACK / RED and BLACK wires).
582 and 583 Engines
Ignition module stamped P / N : 070000-2281
Ignition coil stamped P / N : 129700-2982
Flywheel stamped P / N : 032000-7860
454, 494 and 670 Engines
Ignition module stamped P / N : 070000-2281
Ignition coil stamped P / N : 129700-2982
Flywheel stamped P / N : 032700-5900

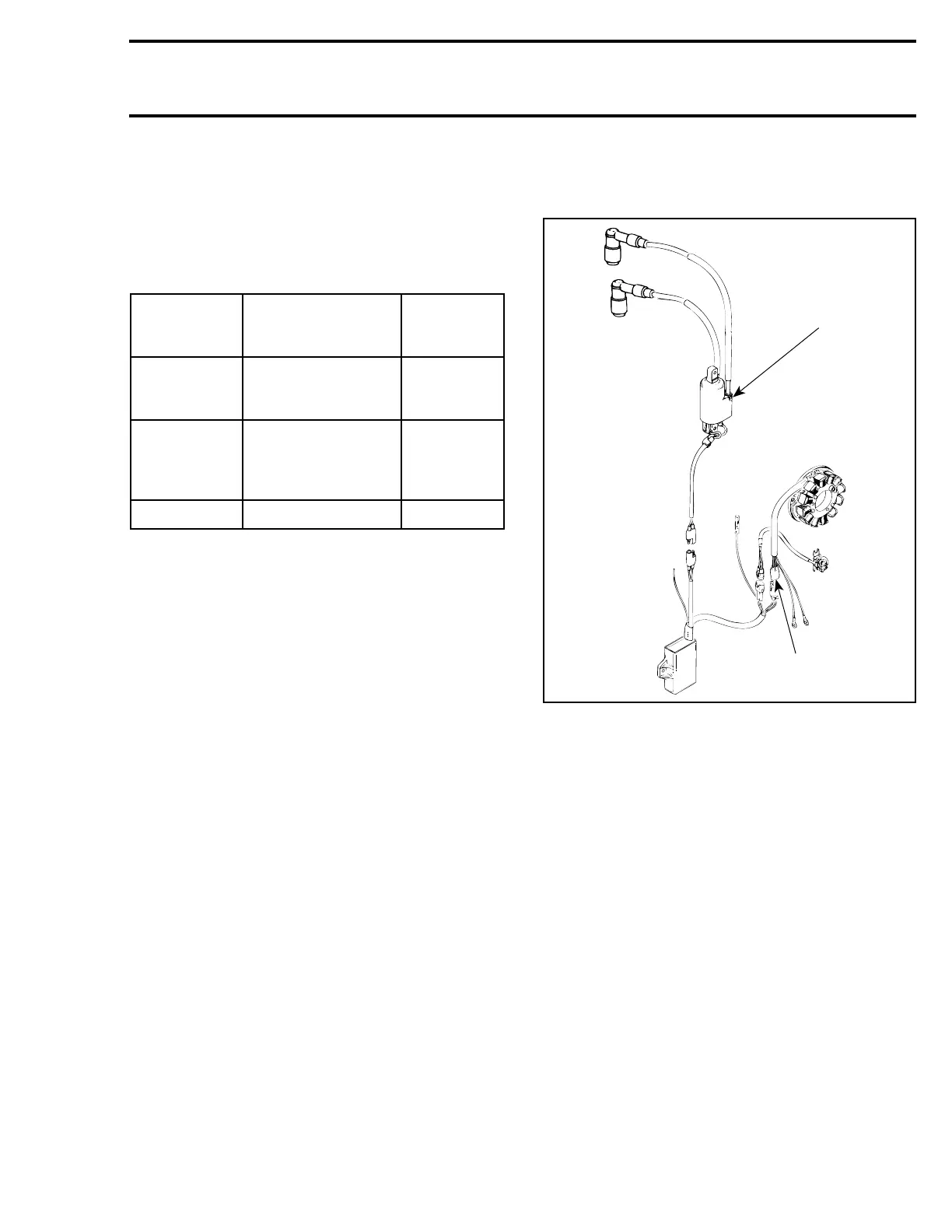

➀ NIPPONDENSO CDI TRIGGER COIL SYSTEM
1. Separate ignition coil mounted on reservoir cluster
2. Three-wire connector (RED, BLACK / RED and BLACK)
2. Ignition module is connected to the ignition
generator coil via a 3-wire connector (BLACK /
RED, WHITE and RED wires).
599 and 779 Engines
Ignition module stamped P / N : 070000-2341
Ignition coil stamped P / N : 129700-2990 or
129700-2991
Flywheel stamped P / N : 032000-7902
ENGINE
TYPE
IGNITION
SYSTEM
CHARGING
SYSTEM
OUTPUT
454, 494,
582, 583
and 670
➀NIPPONDENSO
(CDI)
TRIGGER COIL
220
599 and 779
➁NIPPONDENSO
(CDI)
TRIGGER COIL
WITH 3 H.T. COILS
220
503 ➂DUCATI (ADC) 240
