-8-
Model number 1817 1827 1830
Voltage rating 120V 60Hz 120V 60Hz 120V 60Hz
Amperage rating 9.5A 10A 10A
No load speed n
0
25,000/min n
0
10,500-25,000/min n
0
10,500-25,000/min
Collet capacities 1/4", 1/2" 1/4", 1/2" 1/4", 1/2"
On models 1817, 1827 & 1830 router motor unit must be used with either
fixed base type A, or plunge base Type B.
1
1
/
2
1
1
/
2
0

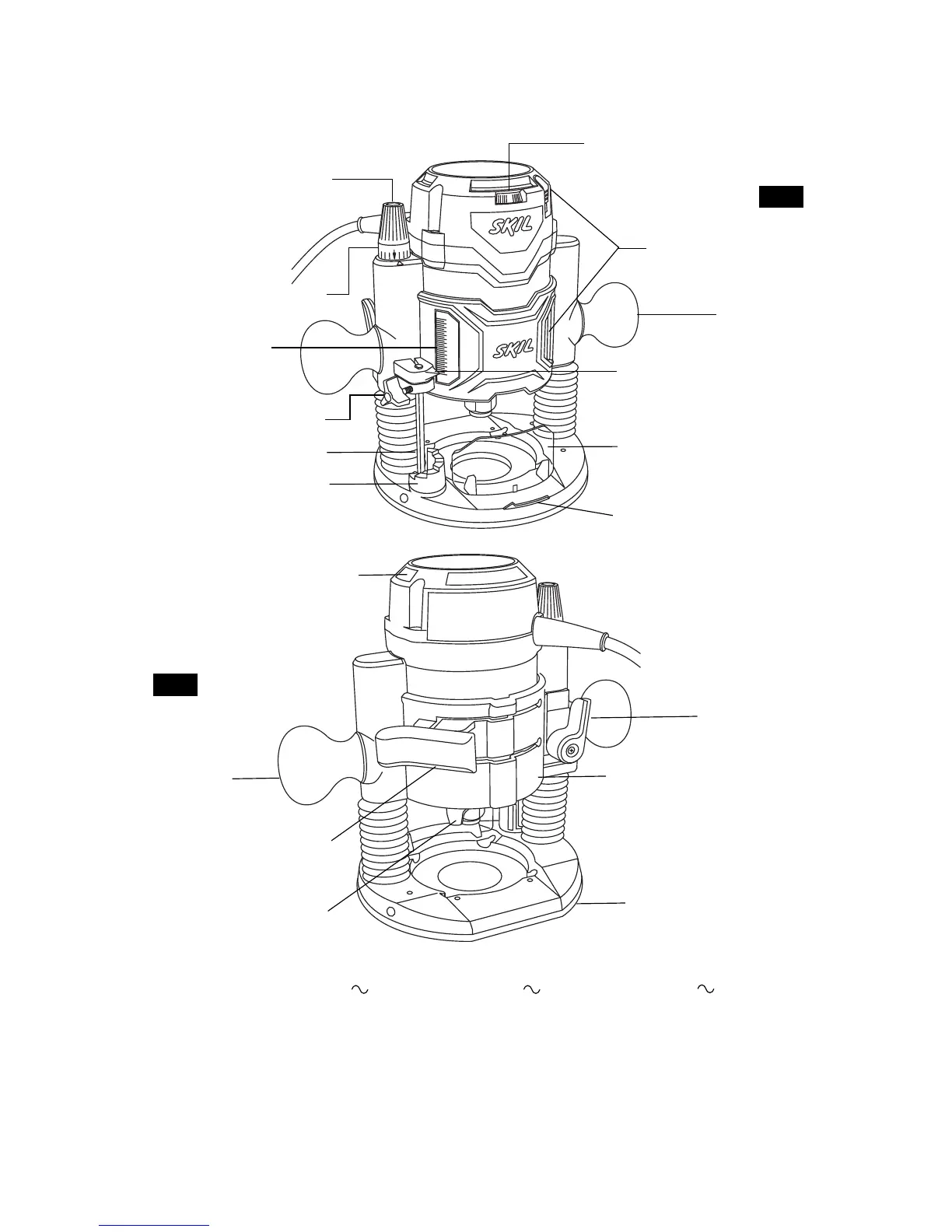

FIG. 3
FIG. 4
PLUNGE LOCK
LEVER
HANDLE
CHIP DEFLECTOR
BIT ROTATION ARROW
FINE
ADJUSTMENT
KNOB
VENTILATION
OPENINGS
BASE CLAMP
LEVER
SUB-BASE
DEPTH SCALE
DEPTH STOP TURRET
DEPTH ROD KNOB
DEPTH ROD
DEPTH INDICATOR
VARIABLE SPEED DIAL
(Model 1827 & 1830 only)
HANDLE
INDICATOR RING
2-POSITION
SLIDE "ON/OFF"
SWITCH
COLLET LOCK
Plunge Base Router
BASE (TYPE B)
