6
-

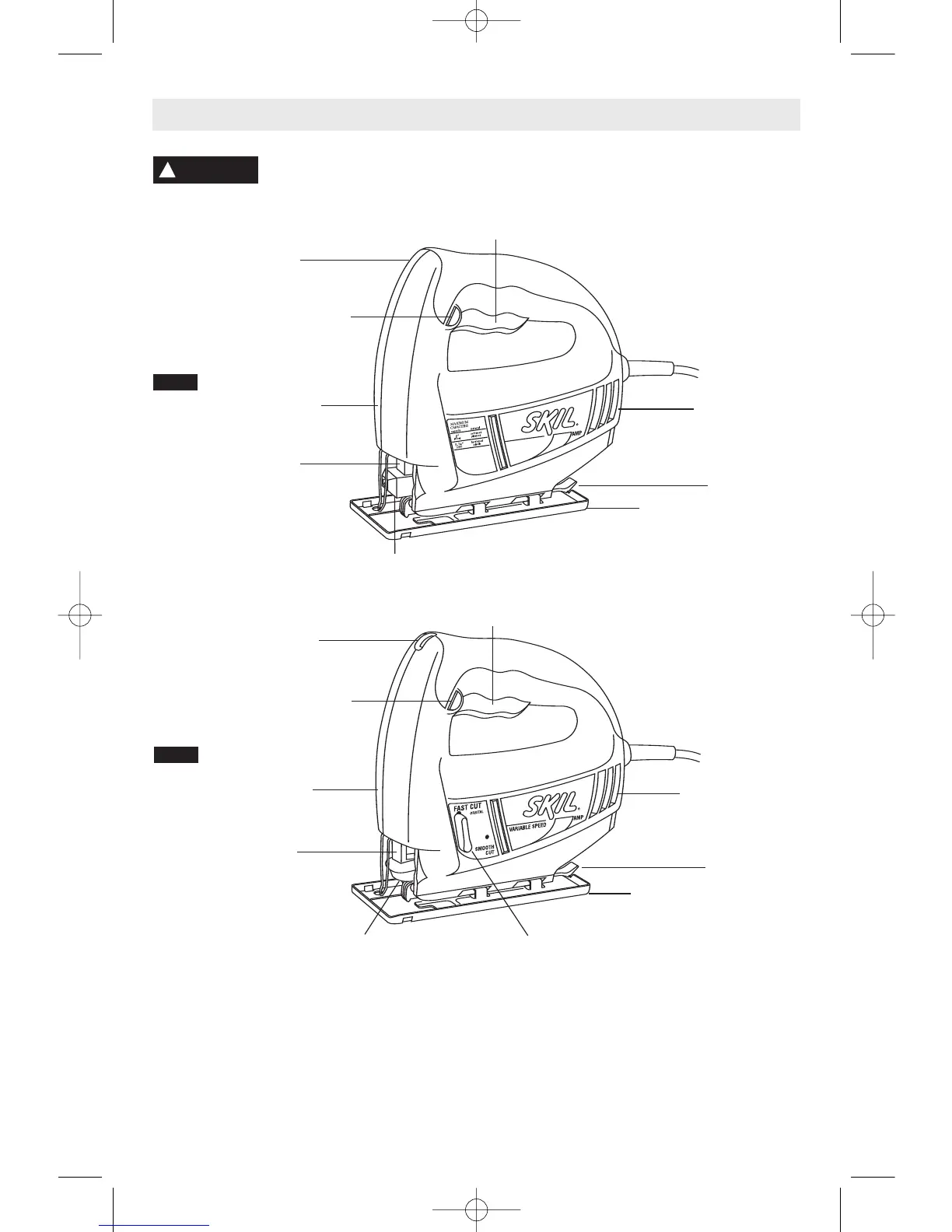

Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories
. Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING
“LOCK-ON”
B
UTTON
VENTILATION
OPENINGS
PLUNGER
BLADE
HOLDER
GEAR
HOUSING
Jigsaws
MAXIMUM CAPACITIES
Model Blade Blade Stroke
No. Thickness Action Length Wood Aluminium Steel
4240 Minimum .8mm - Maximum 1.5mm Standard 5/8" 2" 1/2" 1/4"
4280 Minimum .8mm - Maximum 1.5mm Standard 5/8" 2" 1/2" 1/4"
4380 Minimum .8mm - Maximum 1.5mm Orbital 5/8" 2" 1/2" 1/4"
NOTE: For tool specifications refer to the nameplate on your tool.
VARIABLE SPEED
CONTROL DIAL
“LOCK-ON”
BUTTON
VENTILATION
OPENINGS
FOOT
RELEASE
TAB
PLUNGER
GEAR
HOUSING
TOOL-LESS BLADE
CHANGE COVER
ORBIT CONTROL
LEVER
FOOT
FOOT
RELEASE
TAB
FOOT
TOP OF FRONT
HOUSING
TRIGGER SWITCH
TRIGGER
SWITCH
FIG. 1
FIG. 2
SM 1619X02133 12-06 12/12/06 2:30 PM Page 6
