6
-
Functional Description and Specifications
Disconnect the plug from the power source before making any
assembly, adjustments or changing accessories
. Such preventive safety
measures reduce the risk of starting the tool accidentally.
!
WARNING
MAXIMUM CAPACITIES
Model Blade Blade Stroke
No. Thickness Action Length Wood Aluminum Steel
4490
Minimum .7mm - Maximum 1.7mm
Orbital/Scroll 13/16" 3-1/8" 1/2" 1/4"
NOTE: For tool specifications refer to the nameplate on your tool.

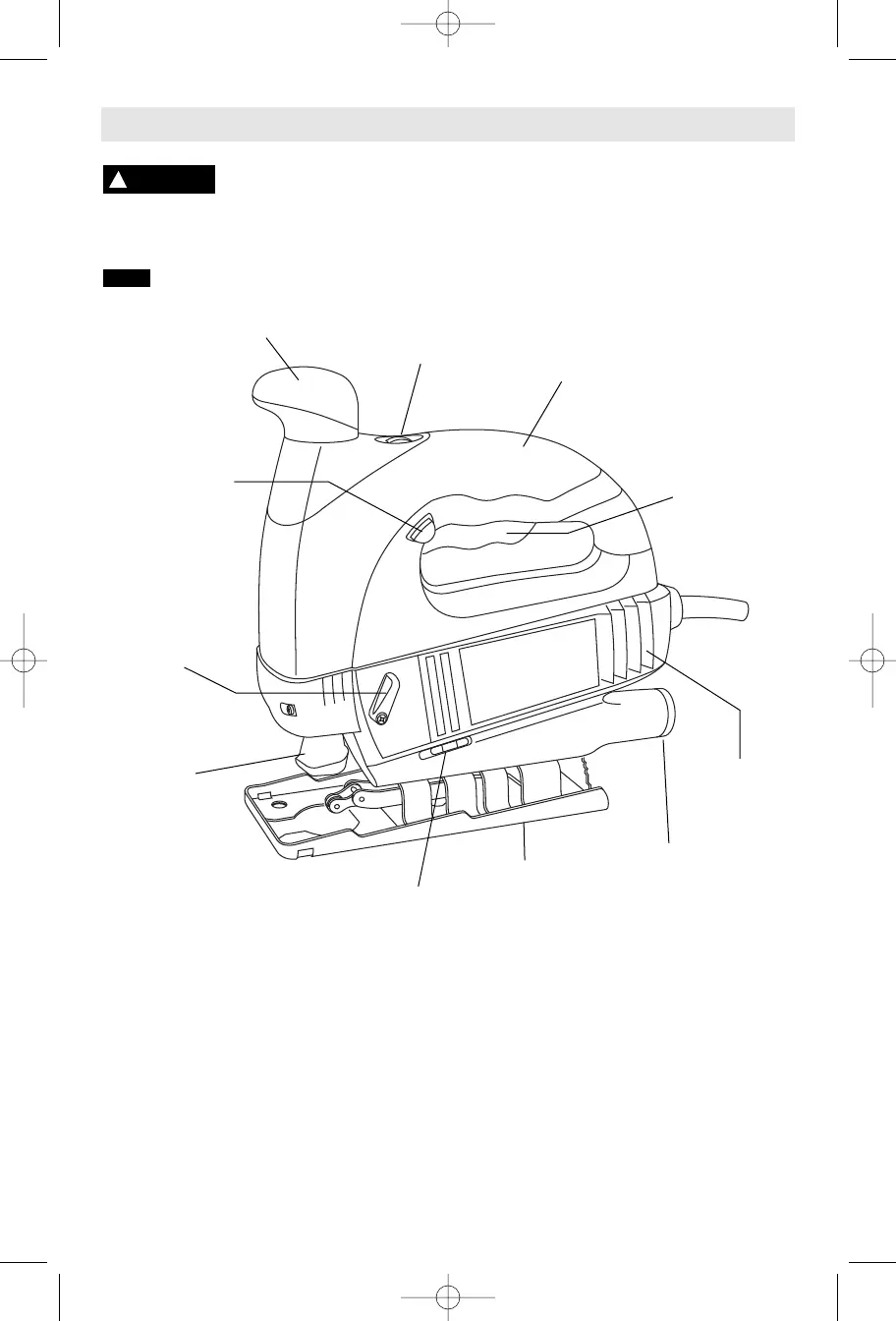

Jigsaw
TRIGGER
SWITCH
SCROLLING
KNOB
FOOT
VENTILATION
OPENINGS
DUST PORT / BLADE
STORAGE
COMPARTMENT
TOOL-LESS
BLADE
CHANGE
COVER
“LOCK-ON”
BUTTON
ORBIT / SCROLLING
CONTROL LEVER
VARIABLE
SPEED
CONTROL DIAL
RUBBERIZED
GRIP
FIG. 1
DUST BLOWER
SWITCH
