12
Mount and Adjust the Assist Handle
1. Remove the battery pack from the pole saw.
2. Loosen the wing nut and remove it with the clamp bolt from the assist handle (Fig. 3a).
3. Press the assist handle onto the handle pole and turn the assist handle upward so that it
points toward the top of the rear handle (Fig.3b).
4. Insert the clamp block and assemble the clamp bolt with the wing nut (Fig.3c).
5. Do not fully tighten the wing nut. Adjust the assist handle position so that it is between the
rear handle housing and the rear threaded sleeve of the telescoping pole(Fig.3d). The
handle should be adjusted so that your arm is straight when using the pole saw.
6. Press down the lock lever and tighten the wing nut so that the assist handle is secured
from being rotated or moved on the handle pole.

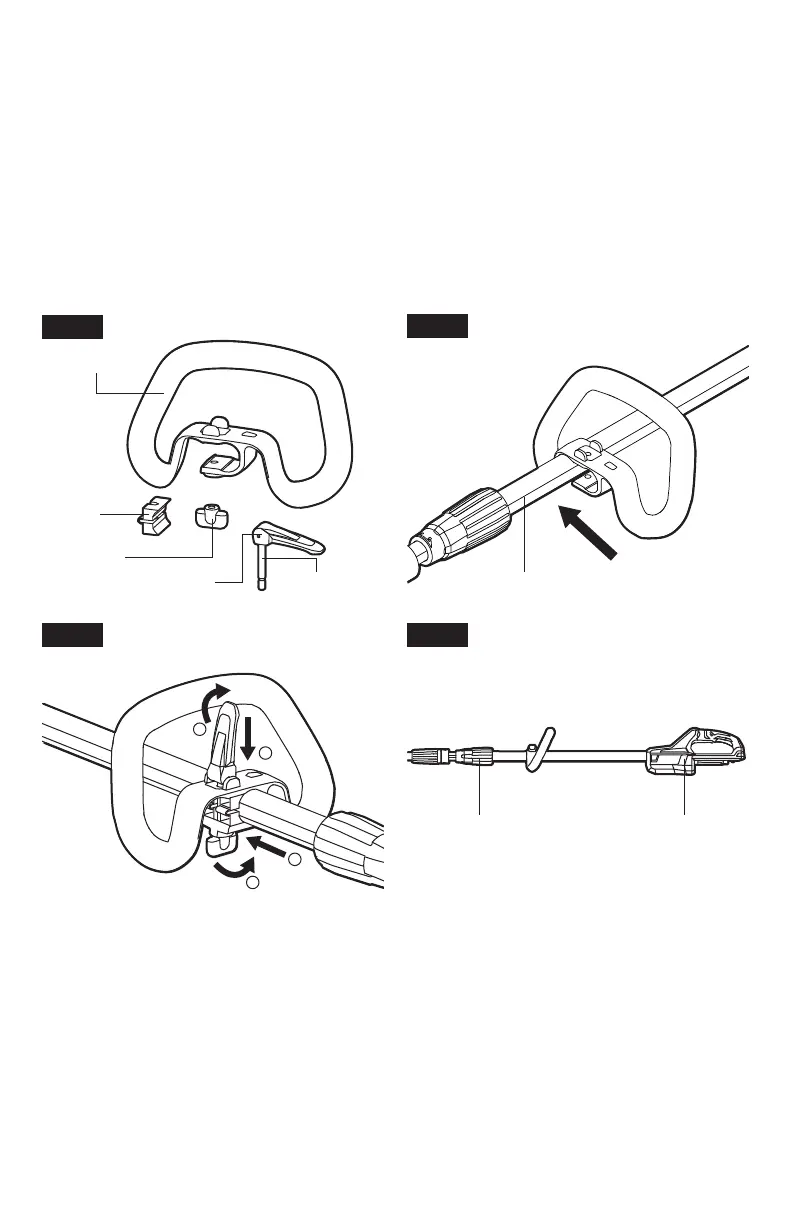

Fig. 3a
Assist Handle
Clamp
Block
Clamp BoltLock Lever
Wing Nut
Fig. 3b
Handle Pole
Fig. 3c
Fig. 3d
Rear Threaded
Sleeve
Rear Handle
Housing
