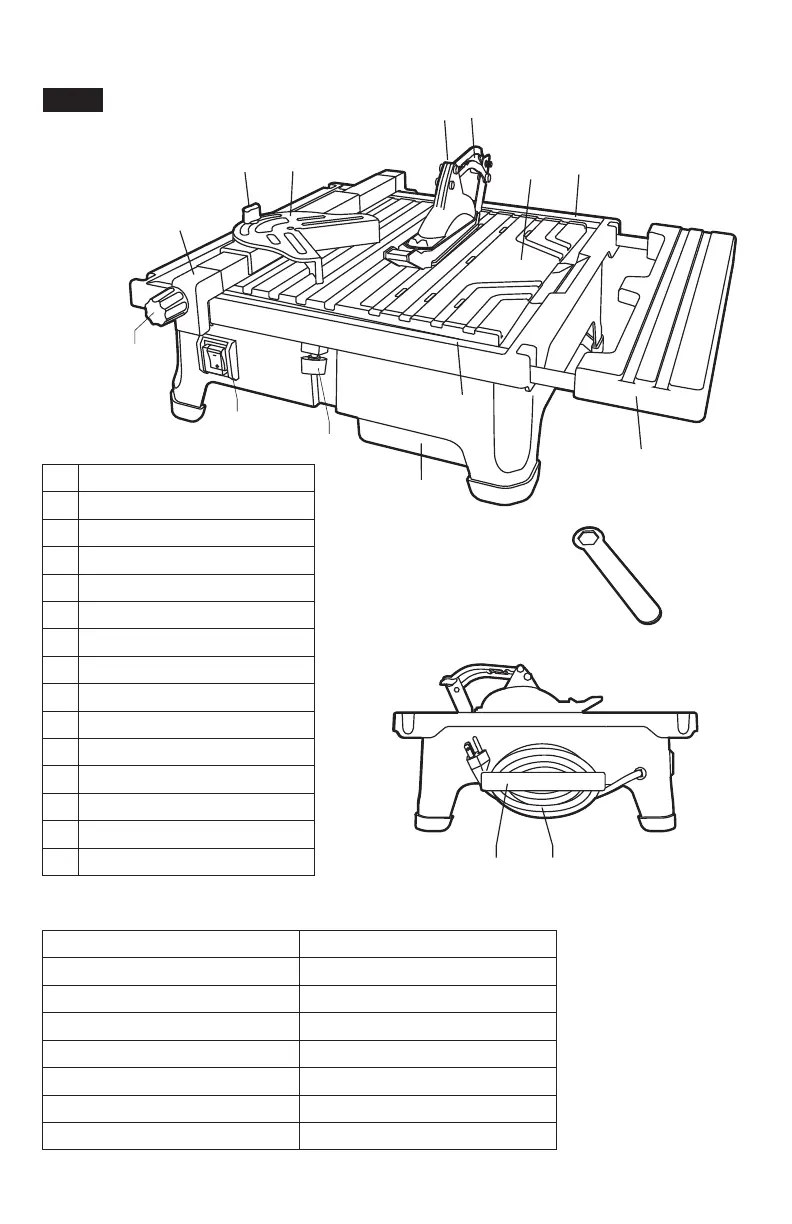

GETTING TO KNOW YOUR TILE SAW
1
5
3
8
6
7
11
9
12
10
2
4
10
13
15 14
Fig. 1
1. Top Guard
2. Guard Locking Knob
3. Miter Guide
4. Miter Guide Locking Knob
5. Fence
6. Fence Locking Knob
7. On/Off Switch
8. Side Extension Locking Knob
9. Water Reservoir
10. Ripping Scale
11. Side Extension
12. Bevel Table
13. Wrench
14. Cord
15. Cord Wrap
Wheel Diameter 7 in.
Wheel Arbor 5/8 in.
Rip Capacity (tile size) 18 x 18 in.
Diagonal Capacity (tile size) 12 x 12 in.
Bevel Capacity (tile size) 12 x 12 in.
Maximum Depth of Cut 3/4 in.
Rating 120 V~, 60 Hz, 5.0 Amps
No Load Speed 3,600 r/min. (RPM)
PRODUCT SPECIFICATIONS
