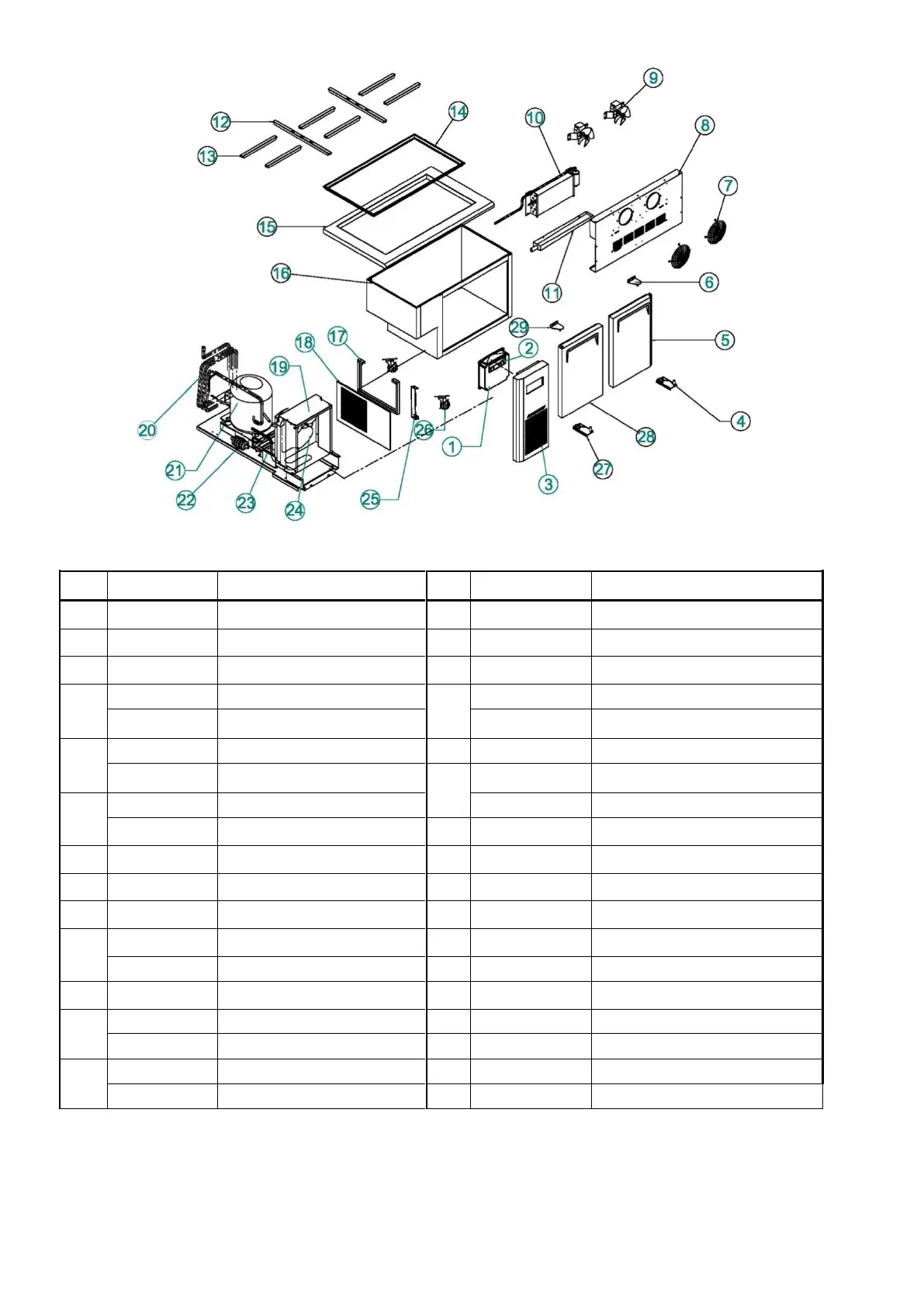

SKIPIO SUF9-1 - Page 12

11
SSR12-2
No
Part Cord
Part Name
No
Part Cord
Part Name
1
KR81410400
MAIN PCB
16
BR2AB00100
CABINET ASSY
2
KR81410300
FRONT PCB
17
KR92100302
UNIT BRACKET
3
KR81410704
UNIT FRONT COVER
18
KR81900104
UNIT SAID COVER
4
5
KR89910100
BOTTOM HINGE（R）
19
KF24900105
CONDENSER ASSYREF
KR2AF00102
DOOR（R）_1200
KF84900105
CONDENSER ASSYFRE
6
7
KR89910402
TOP HINGE（R）
20
BR24200105
SUCTION PIPE(B) 12 15
U609000103
FAN COVER
21
G2R5700200
COMP REF LX110 REF
8
BR21H00100
EVA DUCT SHR
G5R5700200
COMP FRE LX125 FRE
BR21700107
EVA DUCT SSR
22
BR84100100
FILTER DRYER
9
CM25000101
EVA FAN MOTOR
23
M729300102
DRAIN PAN
10
BR2AD00103
EVAP-ASSY
24
G8F5000200
CONDENSER FAN OTOR
11
BR21900104
EVA DRAIN GUIDE
25
KF82100208
UNIT SIDE BRACKET(A)
12
S722500104
PAN GUIDE
26
K3F3200901
LEVEL FOOT&CASTER
BR81800400
PAN GUIDE
27
KR89940100
BOTTOM HINGE（L）
13
BR81800301
PAN GUIDE
28
KR2AF00202
DOOR（L）_1200
14
BS20900100
PAN SUPPORTER SHR
29
KR89910302
TOP HINGE（L）
BR21800200
PAN SUPPORTER SSR
30
S488900302
HOOD LID
15
BS2FE00100
COUNTER TOP SHR
31
S485600202
HOOD
BR2FF00100
COUNTER TOP SSR
