CAUTION
■
When removing or inserting the variable loading floor, a distance of 15 cm
B
» Fig. 87 underneath the boot cover must be adhered to - risk of damaging
the boot lid seal.
■
The variable loading floor cannot be placed in the vehicle when the luggage
compartment cover is in the “park position” » page 83.
Note
After removing the variable cargo floor, place it down in such a way that it can-
not be damaged or soiled.
Folding up/down

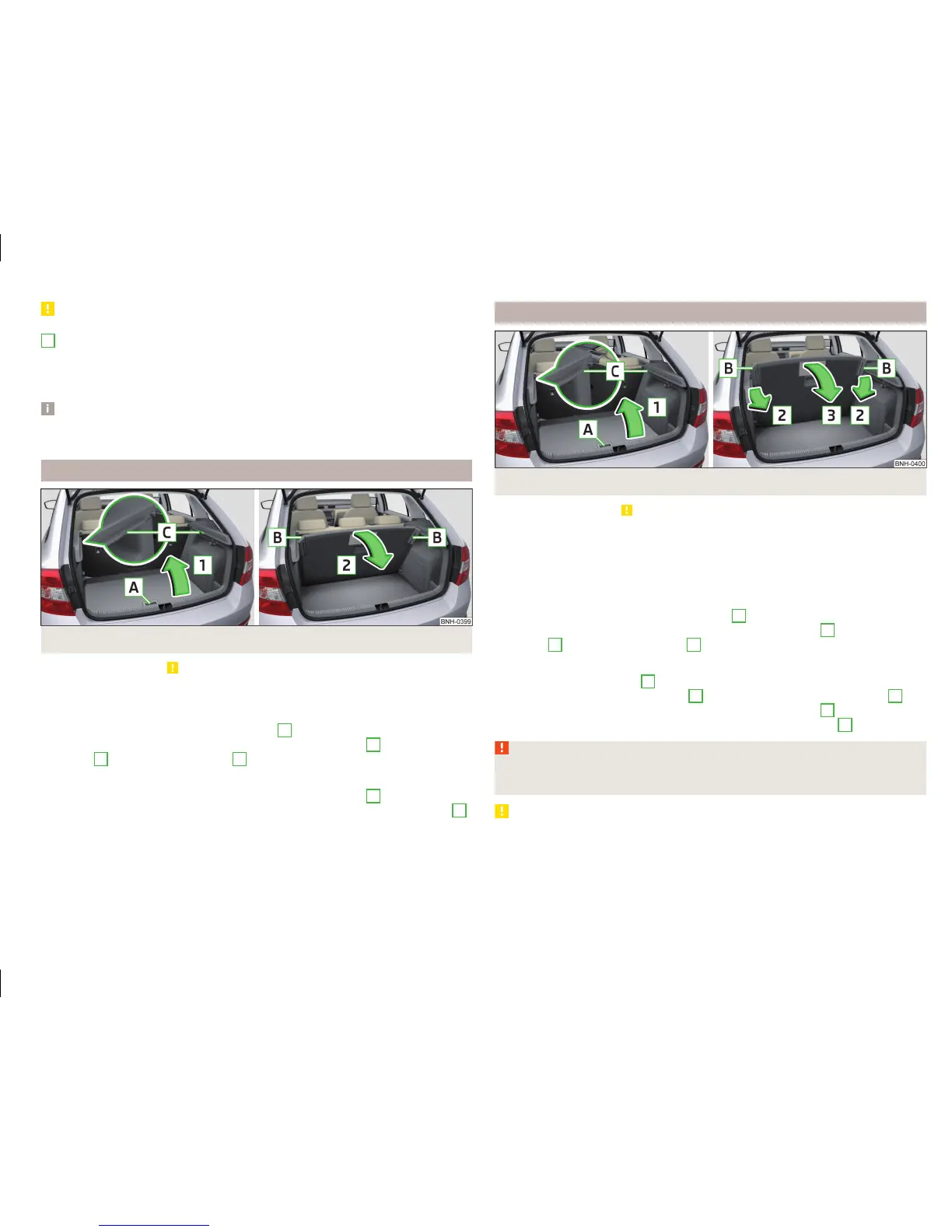

Fig. 88 Fold up/fold down variable loading floor
Read and observe on page 85 first.
The variable loading floor can be folded up in both positions (upper and lower).
Folding up
›
Grasp the variable loading floor at handle
A
» Fig. 88.
›
Lift the variable loading floor in the direction of the arrow
1
until the folding
corners
B
lock into place in area
C
.
Folding down
›
Grasp the variable loading floor in the middle or at handle
A
» Fig. 88.
›
Unlock the variable loading floor by pulling it in the direction of the arrow
2
.
“Parking position”
Fig. 89 Set parking position / fold down from the parking position
Read and observe
on page 85 first.
The variable loading floor can only be in set to the “parking position” when it is
in the lower position » page 86 and the luggage compartment cover has been
taken out » page 82.
Folding up
›
Remove the luggage compartment cover from the vehicle » page 82.
›
Grasp the variable loading floor at handle
A
» Fig. 89.
›
Lift the variable loading floor in the direction of the arrow
1
until the folding
corners
B
lock into place in area
C
.
Folding down
›
Push the folding corners
B
» Fig. 89 on both sides of the variable loading
floor in the direction of the arrow
2
and release these from positions
C
.
›
Grasp the variable loading floor in the middle or at handle
A
.
›
Fold down the variable loading floor in the direction of arrow
3
.
WARNING
The variable loading floor in the “parking position” restricts the driver's
view at the back.
CAUTION
■
The variable loading floor can only be in set to the “parking position” when it
is in the lower position and the luggage compartment cover has been taken
out.
■
If the variable loading floor is in the “parking position”, the “parking position”
on the luggage compartment cover cannot be set » page 83.
87
Transporting and practical equipment
