CAREL ir33 electronic controller
910
11
12
43
15
14
1312
8
7
6
5
5

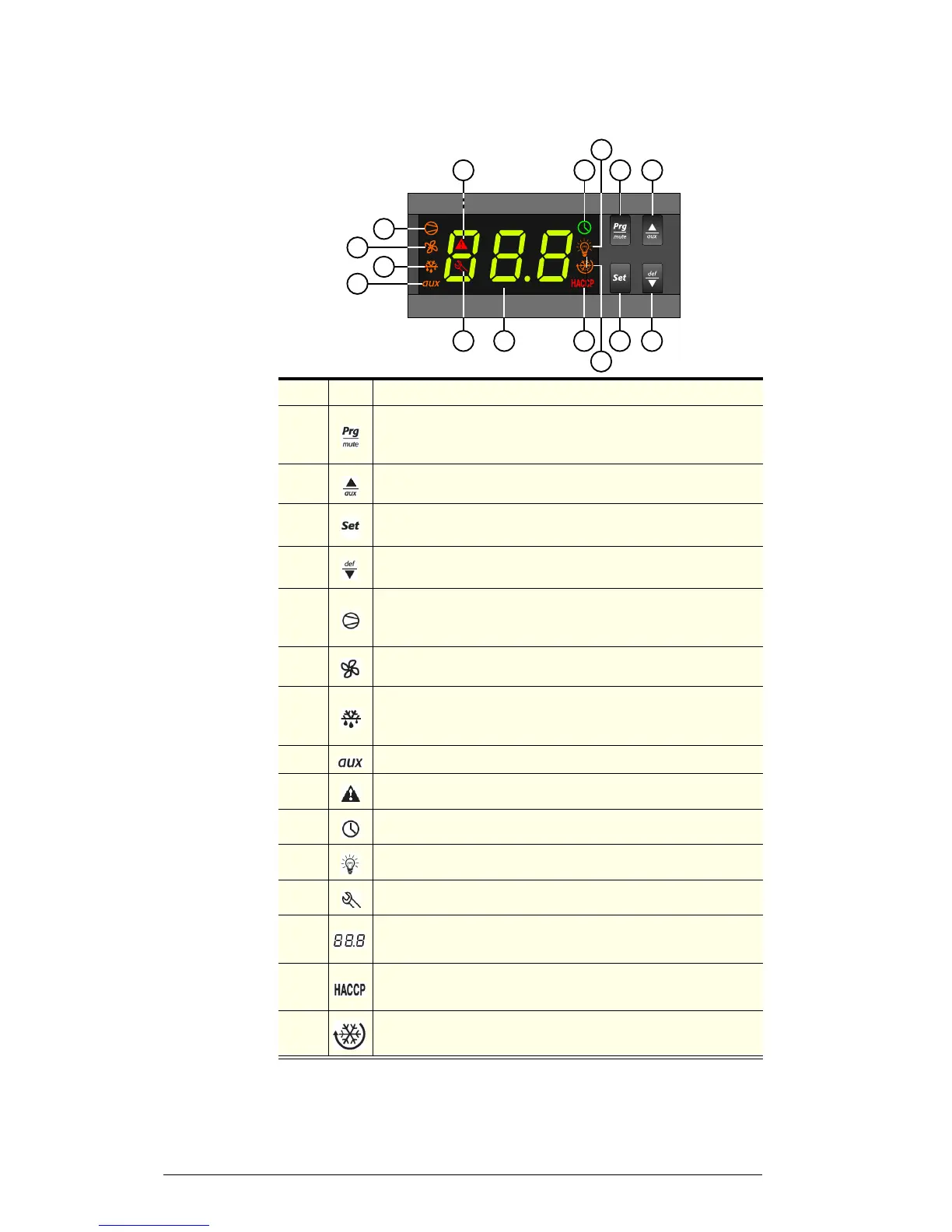

CAREL ir33 electronic
controller faceplate
Item Icon Function
1
Mute / program: Mutes the audible alarm (buzzer) and
deactivates the alarm relay. To initiate program sets, press for 5
seconds.
2 Up: To scroll settings up (in program mode).
3
Set point: If pressed for more than 2 seconds displays and / or
enables changing the temperature setpoint.
4
Manual defrost / down: Press for more than 5 seconds to initiate
manual defrost. To scroll settings down (in program mode).
5
Compressor: ON when the compressor and condenser fan
starts. Flashes when activation of the compressor is temporarily
delayed.
6 Fan: Shows when the fan is operational.
7
Defrost: ON when the defrost is activated. Flashes when the
activation of the defrost is temporarily delayed due to procedures
in progress.
8 Aux: n.a.
9 Alarm: Flashes in the event of alarms.
10 Clock: n.a.
11 Light: n.a.
12 Service: Flashes in the event of malfunctions.
13
DISPLAY: Shows the cabinet temperature. Flashes when the
door is open.
14
HACCP: n.a.
15
CONTINUOUS CYCLE: On when freezer is running in continuous
run mode.
