SKY-WATCHER Star Adventurer 2i User Manual

9

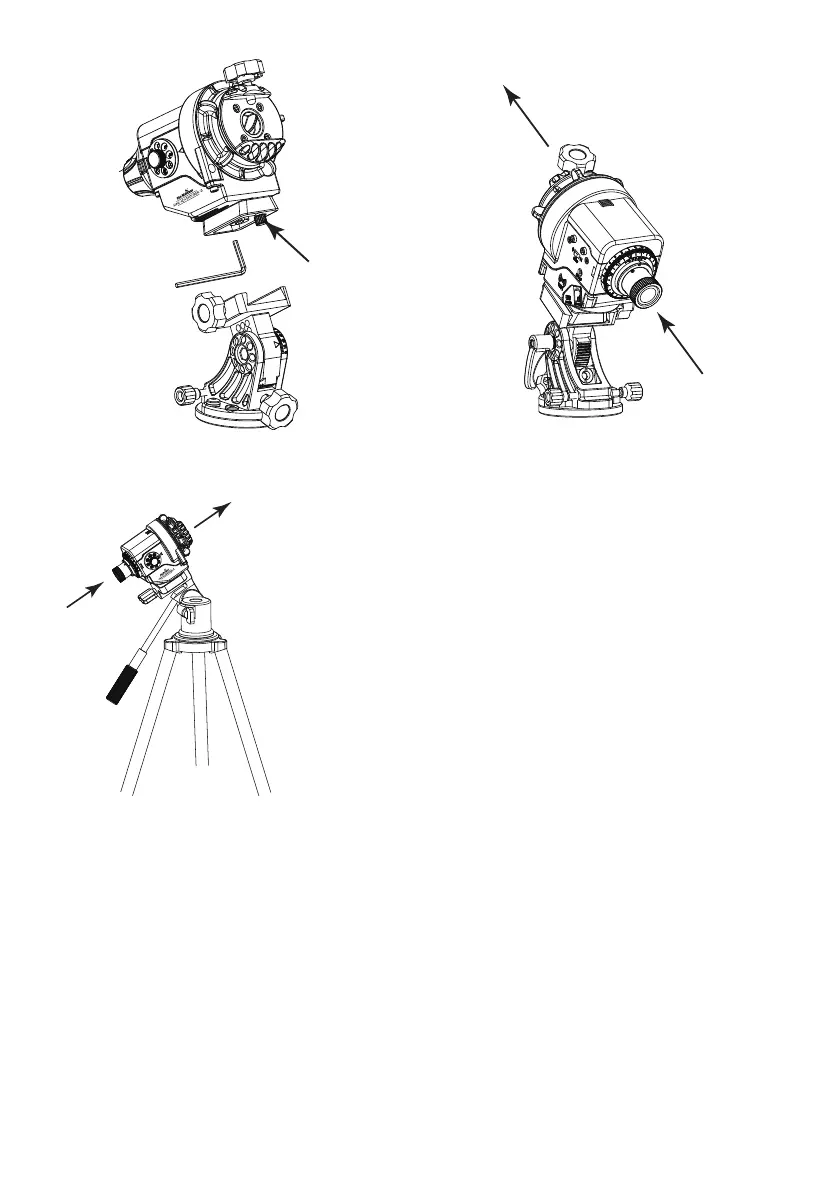

With Tilt-head/ Ball-head: Make sure the 1/4" to 3/8"
Convert Screw Adapter is in the 3/8" threaded socket at
the bottom of the Star Adventurer 2i. If it is not, use an
Slot Screwdriver to install it. Mount the Star Adventurer
2i to the quick release plate on the tripod. Then point the
Polar Scope to the direction of the North Pole (For Northern
Hemisphere observing) or South Pole (For Southern
Hemisphere observing) (Fig 5). Then complete the polar
alignment process (Please see Polar Alignment session for
reference).
Please DO NOT move the tripod or change the angle of Equatorial Wedge or tilt-head
in order to keep the polar alignment. IF you did, please redo the polar alignment
process.
North/South Pole
Stopper
North/South Pole

SKY-WATCHER Star Adventurer 2i Specifications

General

Payload Capacity	5 kg
Tracking Modes	Sidereal, Solar, Lunar
Wi-Fi	Yes
Mount Type	Equatorial
Latitude Adjustment	0° to 70°
Weight	1.2 kg
Smartphone Control	Yes
Tracking Rates	Sidereal, Solar, Lunar
Power Source	4 x AA batteries or external 5V USB
Connectivity	USB
Battery Life	Up to 72 hours
Compatibility	Compatible with most DSLR cameras
App Compatibility	iOS and Android
