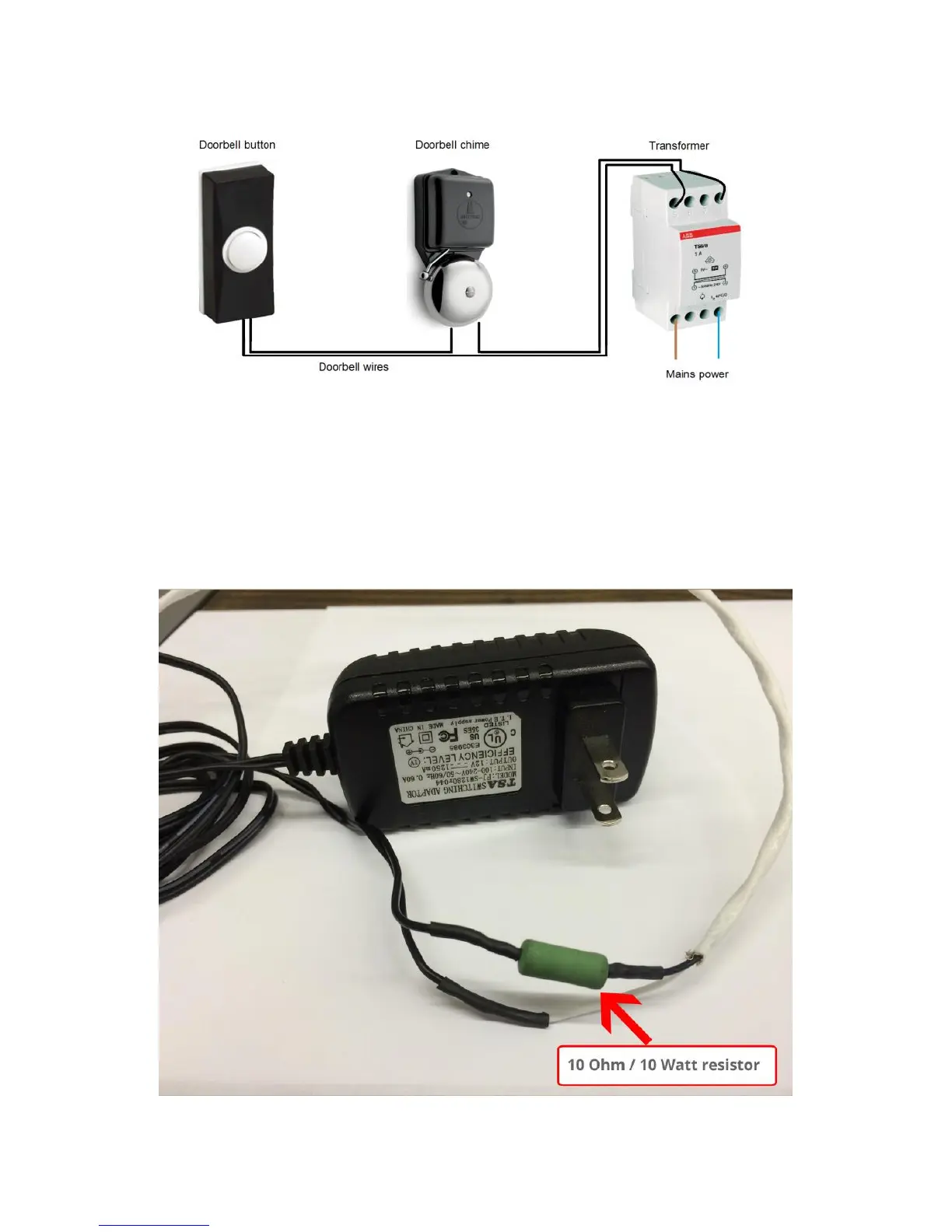

Image 5 – Most common existing doorbell connection
2.3.2 Power SkyBell using adapter without doorbell chime
SkyBell is designed to work with a doorbell transformer and doorbell chime. If you do
not have a doorbell chime you need to make use of a 10 ohm / 10 W resistor together
with a 12V DC power adapter, like this:
Image 6 – Power adapter with resistor is necessary if you do not have a doorbell
chime
