Receiver
Receiver Status light Receiver Status
Solid Green light Communication is good
Green light Slow flash Disconnect from remote controller
Green light Quick flash Frequency matching mode
Solid Red light C.Bus mode
Red light Slow flash Upgrading
Red light Quick flash Self-check failed,please try again or return
factory

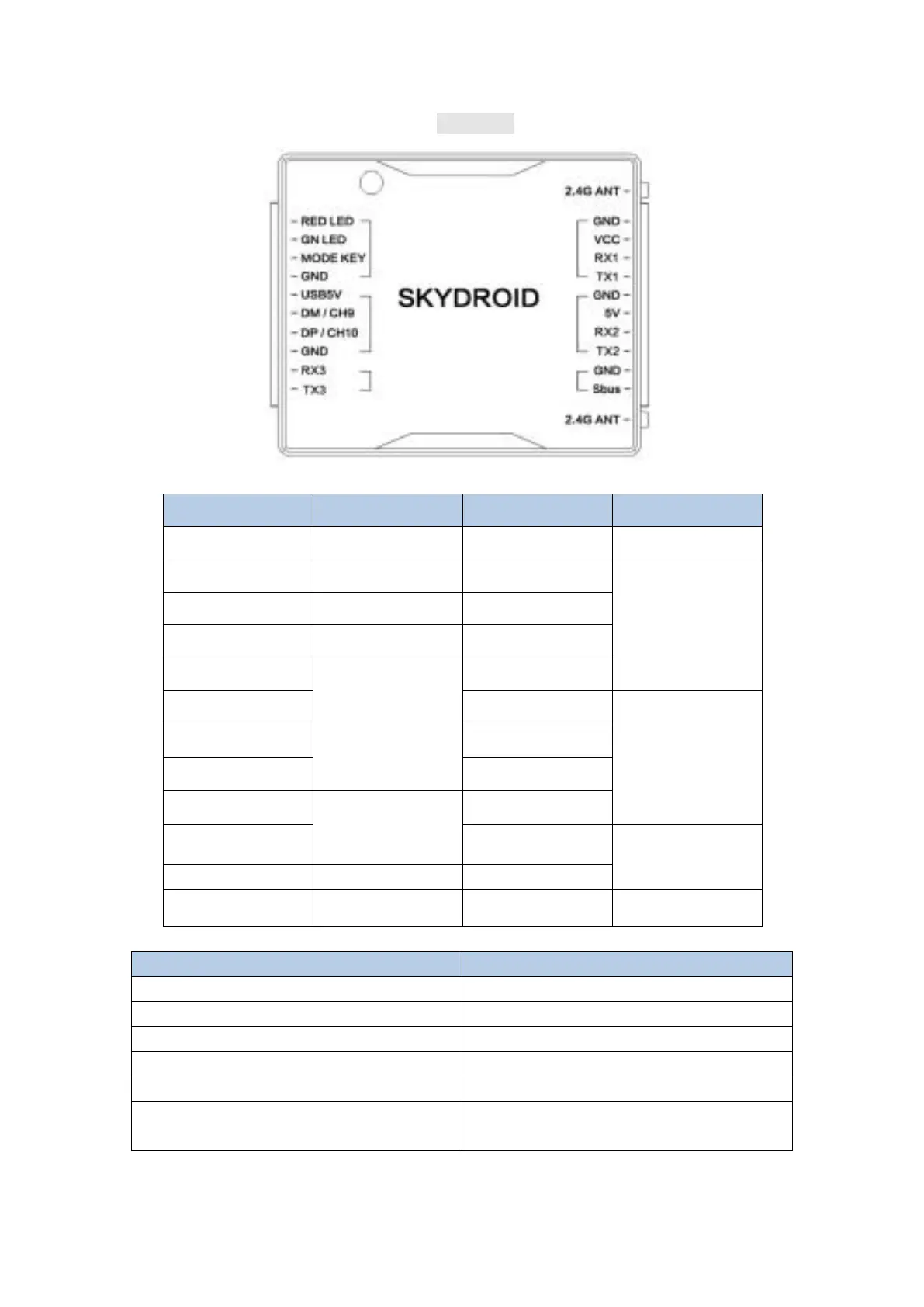

Name Description Name Description
RED LED Red Led 2.4 ANT Antenna
GN LED Green LED GND
Camera interface
MODE KEY Mode Key VCC
GND GND RX1
USB 5V
USB Upgrade
Interface
TX1
DM/CH9 GND
Data Transfer
Interface /CBUS
DP/CH10 5V
GND RX2
RX3
Expansion
Interface
TX2
TX3 GND
SBUS
SBUS
2.4G ANT Antenna
