Skyjack 4632 - Page 110

SECTION 6, Page 21SJIII Series - The Conventionals 129919

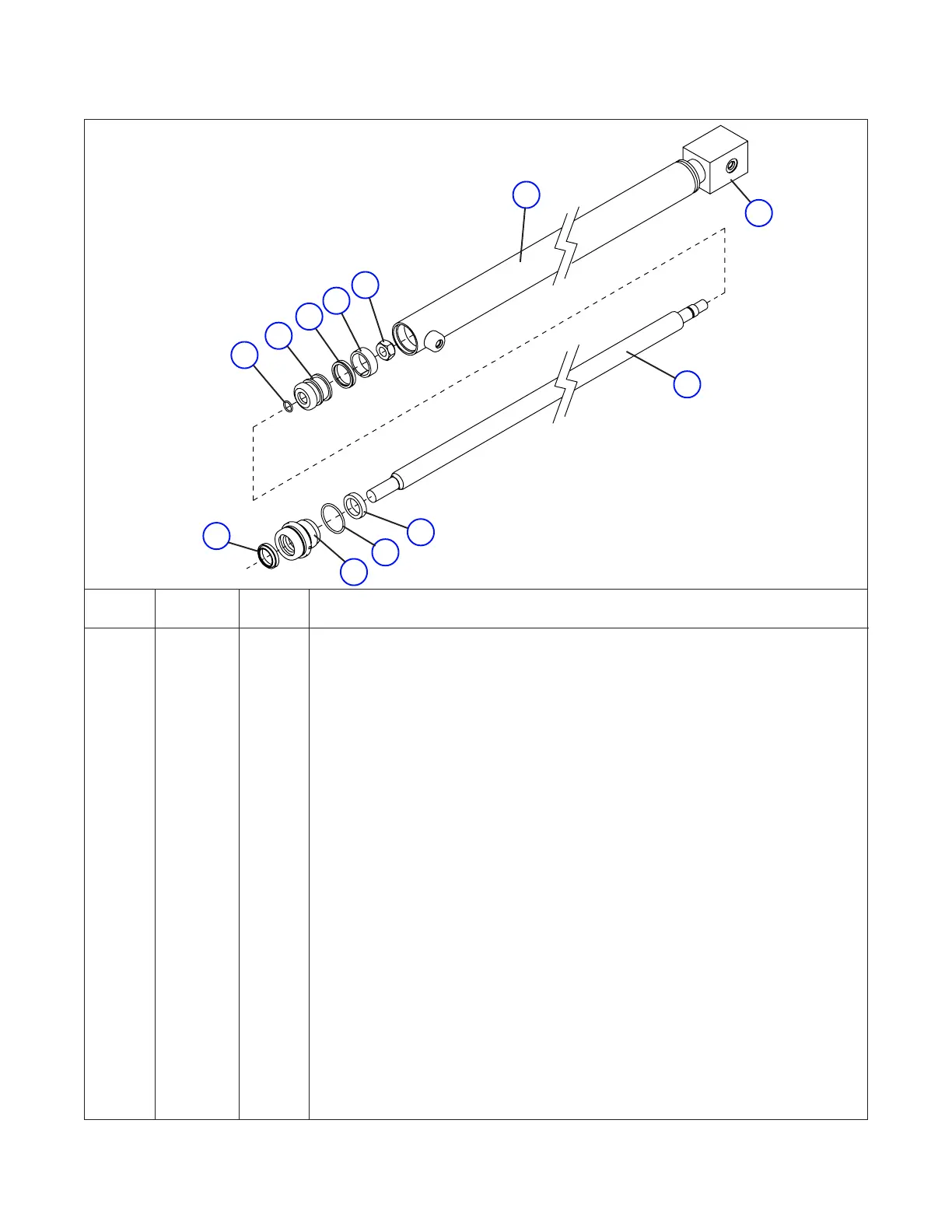

Figure 6.1-11. Powered Extension Cylinder Assembly
Index
No.
Skyjack
Part No.
DescriptionQty.
10188AA
11
10
9
8
7
6
5
2
1
4
3
A 127100 1 ASSEMBLY, Powered Extension 6 ft Cylinder
1 127099 1 • WELDMENT, 6' power deck cylinder barrel
2 103830 1 • NUT, Hex head 5/8”-11 Gr. C
*3 106452 1 • SEAL, Piston wear ring
*4 103825 1 • SEAL, Piston
5 117942 1 • PISTON, cylinder p.deck
*6 110976 1 • SEAL, ‘O’ ring
7 127097 1 • ROD, 6' power deck cylinder
*8 108798 1 • SEAL, Rod
*9 120436 1 • SEAL, ‘O’ ring
10 125698 1 • GLAND, power deck cylinder
*11 106449 1 • SEAL, Rod wiper
12 108052 1 • PLUG, Expander (Inside block)
* 107396 AR KIT, Seal repair
* Part of seal repair kit
