SECTION 3, Page 25SJIII Series - The Conventionals 129919
A B C D E F G H
V
Z
Y
X
W

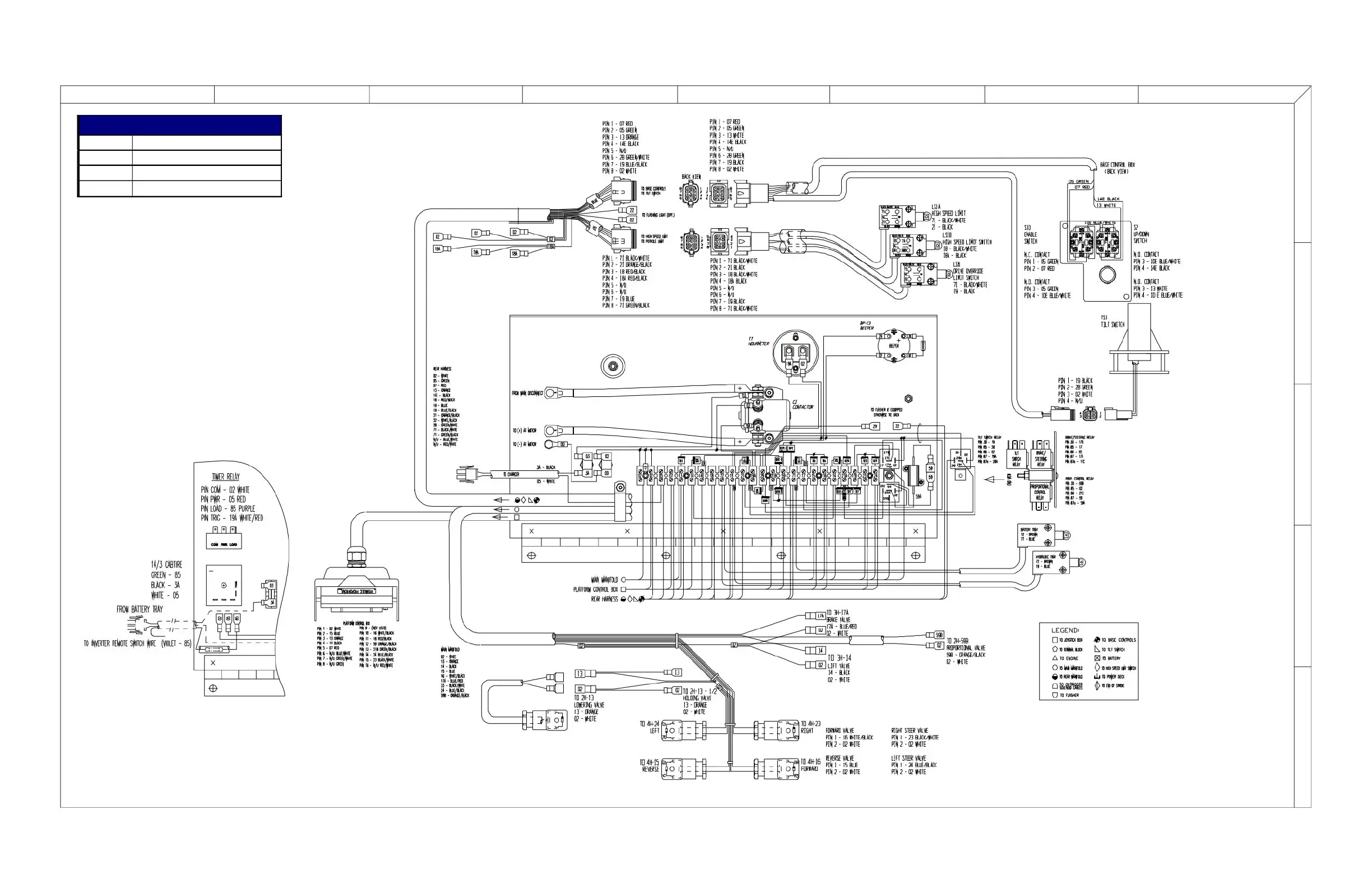

Figure 3.4-2c. Electrical Panel Diagram - ANSI/CSA Models Equipped With All Options
(Refer to Serial No. Breakdown chart)
Refer to following page(s) to locate model,
serial number and respective diagram
INVETER OPTION
ALTERNATIVE INSTALLATION
M132410AF M132626AD
Serial Breakdown Reference Chart
Model Serial Number
3220 60000967 & Above
3226 27002840 & Above
46XX 70003078 & Above
Figure 3.4-2a Figure 3.4-2b
AI
To Next Page
