SECTION 5, Page 10 SJIII Series - The Conventionals 129919
Wire Chart
Color From To
White/Red Steer Left Pin #1
White/Green +24V Steer Common Pin #2
White Steer Right Pin #3
Yellow Forward/Up (S2-NO) Pin #4
White/Black +24V Input Pin #5
Gray Reverse/Down (S1-NO) Pin #6
Blue PWM Out (A) Pin #7
Black Ground Pin #8
White/Blue Enable Switched Power Pin #9
60058AA

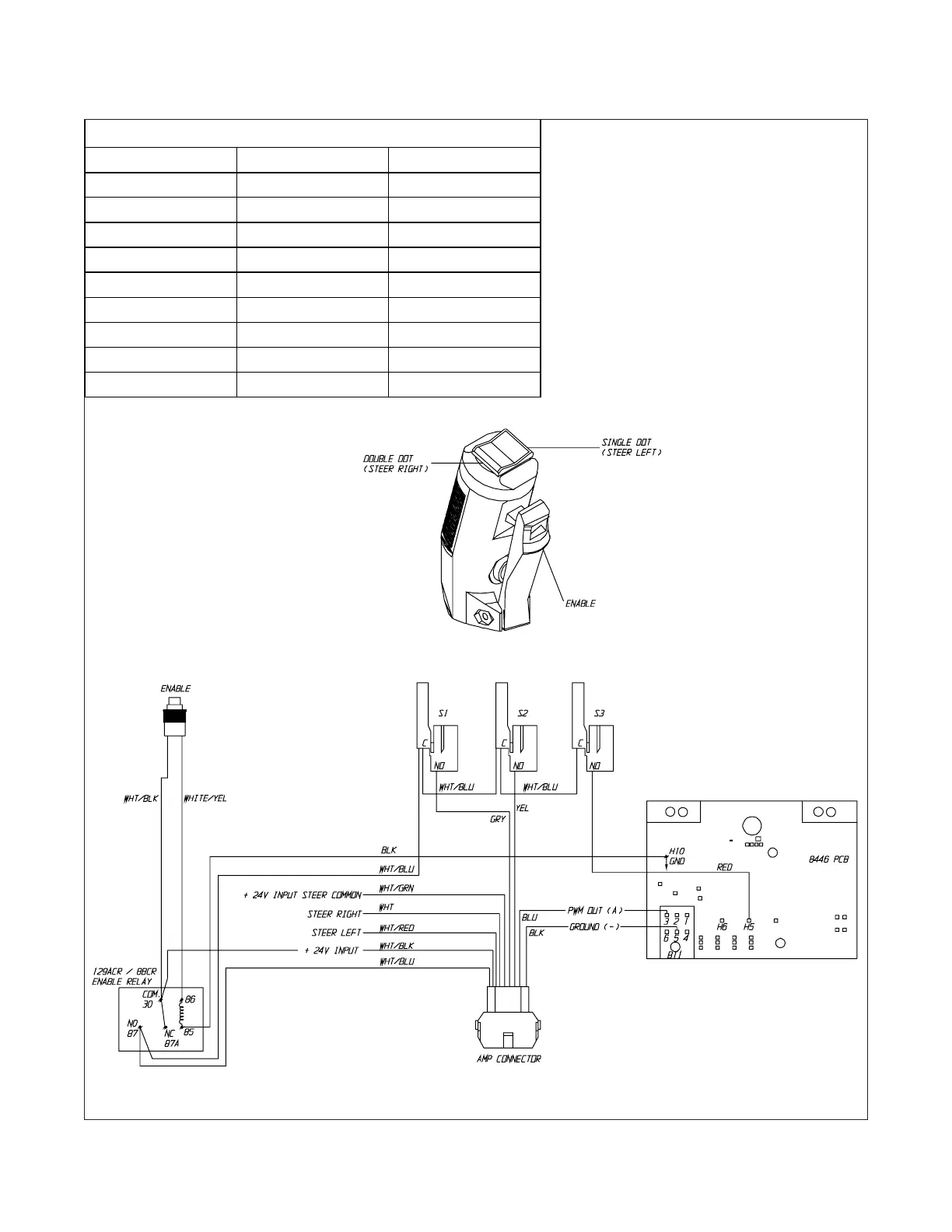

Figure 5-2. OEM Joystick Switch Wiring (Equipped with Enable Relay)
50276AA
To Next Page
