SJ 46A & SJ 46AJ
December 2007 Page 59
Section 2 - Operation Diagrams

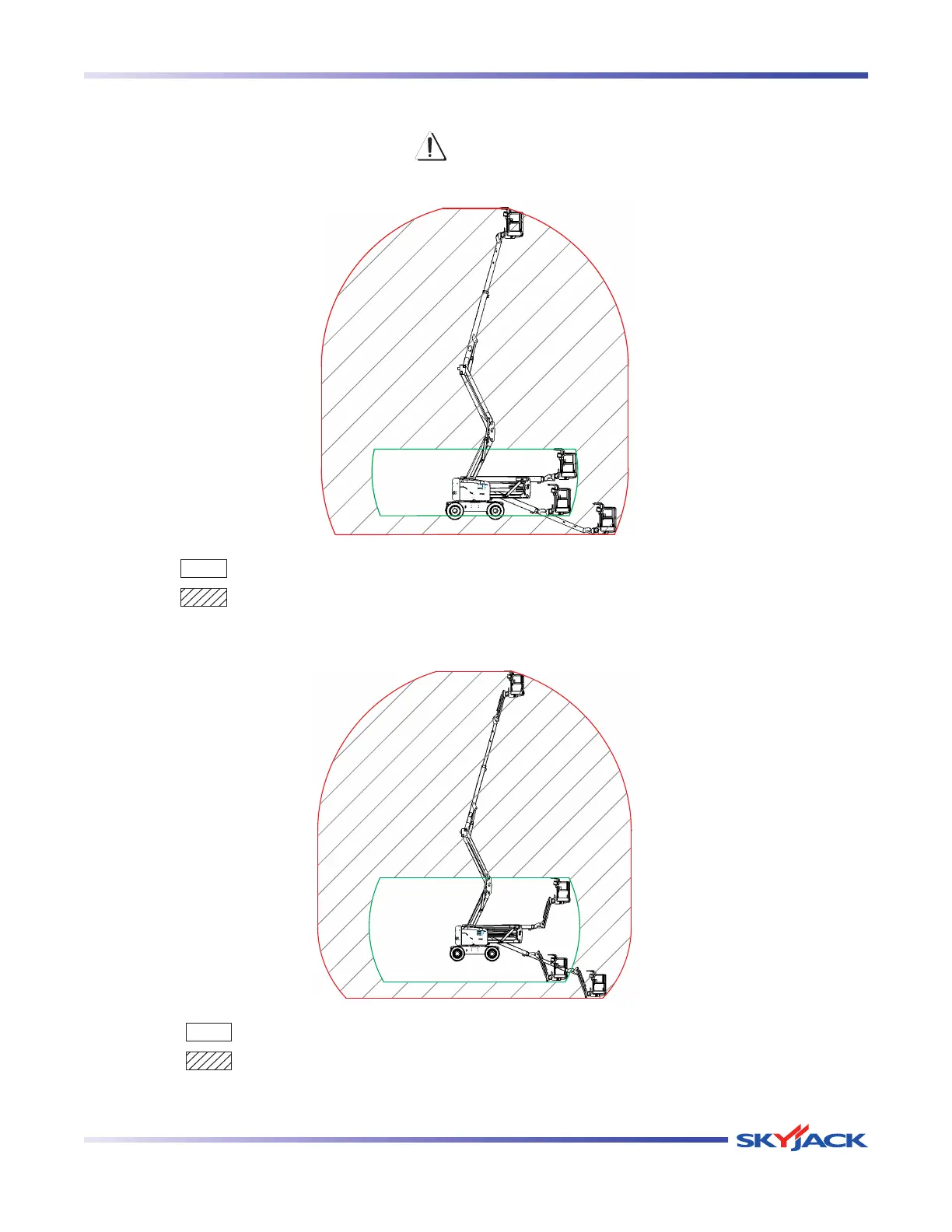

Diagram 2.3 Axle Oscillation Diagrams
WARNING
Do not raise the platform in work mode if it is not on a firm level surface.
Axle oscillation free (travel mode) - drive speed 7.7 km/h (4.8 mph) max.
Axle oscillation locked (work mode) - drive speed 0.8 km/h (0.5 mph) max.
Axle oscillation free (travel mode) - drive speed 4.8 mph (7.7 km/h) max.
Axle oscillation locked (work mode) - drive speed 0.5 mph (0.8 km/h) max.
Figure 2-21. Axle Oscillation - SJ 46A
Axle oscillation locked (work mode) - drive speed 0.8 km/h (0.5 mph) max.
Axle oscillation free (travel mode) - drive speed 7.7 km/h (4.8 mph) max.
Axle oscillation free (travel mode) - drive speed 4.8 mph (7.7 km/h) max.
Axle oscillation locked (work mode) - drive speed 0.5 mph (0.8 km/h) max.
Figure 2-22. Axle Oscillation - SJ 46AJ
