154
Section 5 – Procedures Axles

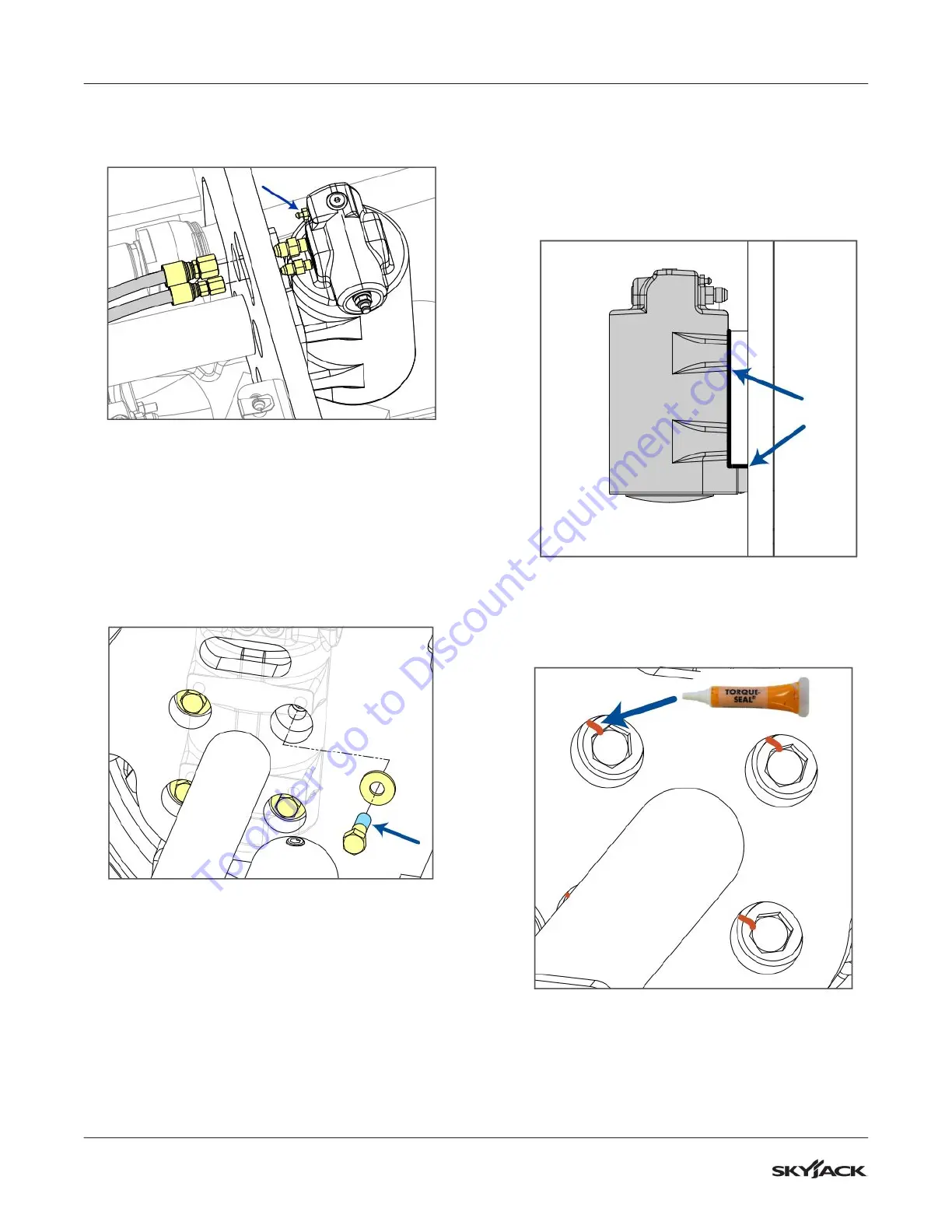

4. Remove and set aside the cylinder fittings,
ensuring they stay clean.
5. Remove and throw away the bolts and washers
securing the cylinder to the chassis. Lift the
cylinder away.
6. Lift a new cylinder into place and install new
bolts (1/2"-13 x 1-3/4" grade 8) and 1/2”
hardened washers, applying liquid blue Loctite
242 or 243 to the lower half of the bolts before
installing them. Hand tighten the bolts.
7. Adjust the oscillating cylinder position until
there is continuous contact between the cylinder
mounting surface and the mounting plate, and
between the mounting plate and the cylinder
shoulder, with no gaps. Torque the bolts to 108
Nm (80 ft-lbs).
No gaps
8. Apply a line of torque seal to each bolt extending
from the bolt head over the washer and to the
chassis wall.
