Labels Section 2 - Operation
Models SJ46AJ & SJ51AJ

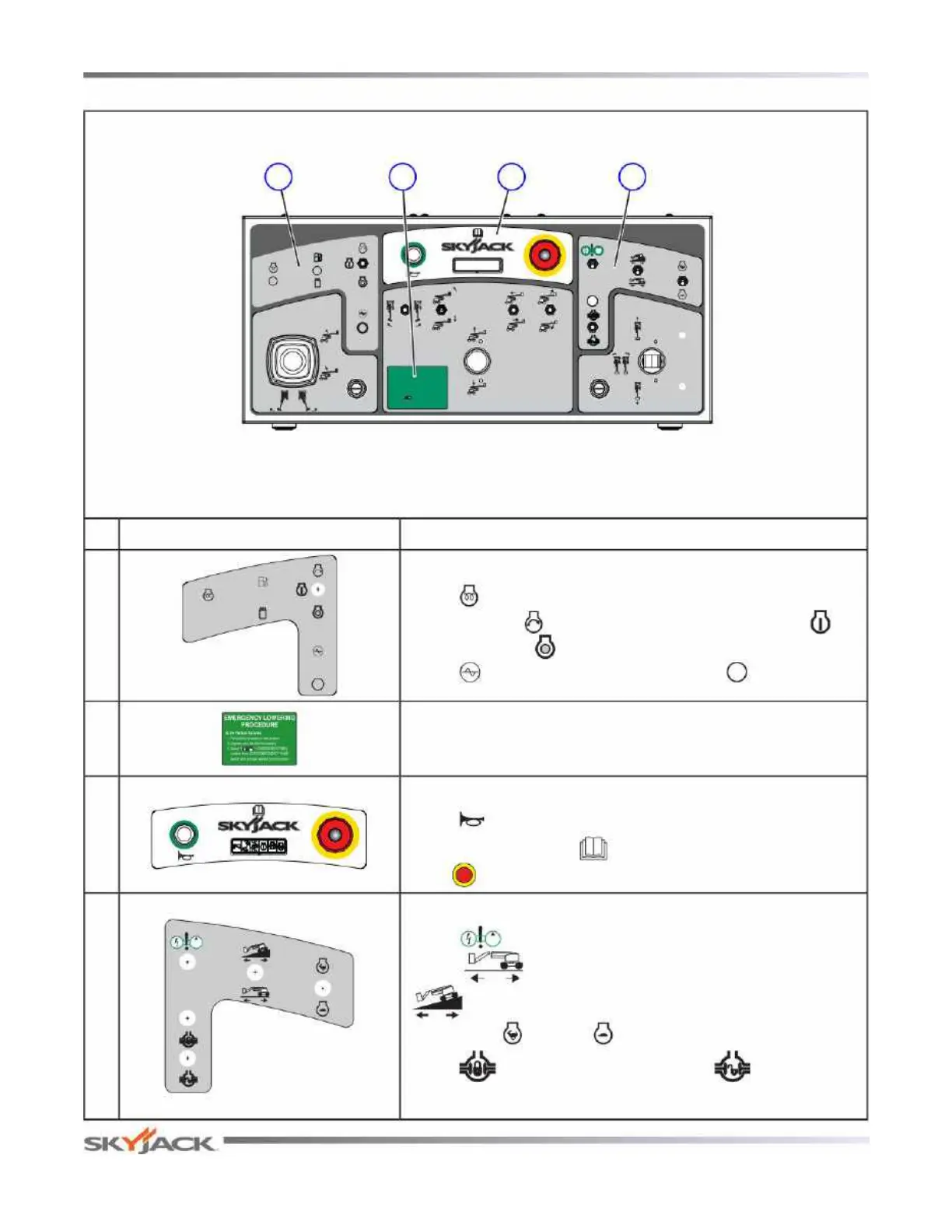

Platform Control Console
No. Label Pictorial Description
1
Glow Plugs/Start Engine
Select “ ” to energize glow plugs.
Push and hold “ ” to start engine and then return to “ ” on
position or select “ ” to turn engine off.
Select “ ” to turn hydraulic generator on or “ ” to turn it off.
2
Emergency Lowering Procedure
Follow procedure outlined in label to lower the platform.
3
E-Stop/Horn
Select “ ” to sound horn.
Read operating manual “ ”.
Push “ ” emergency stop to stop engine and disable controls.
4
Engine Controls/Emergency Power Unit
Select “ ” to enable emergency power unit.
Select “ ” low torque when driving on level ground or
“ ” high torque when driving on a slope.
Select either “ ” high or “ ” low engine throttle speed.
Select “ ” to engage differential lock or “ ” to disengage
differential lock.
149432AA149432AA
At Platform Controls:
1. Pull out emergency stop button.
2. Depress and hold foot switch.
3. Activate emergency pump switch.
4. Activate desired boom function.
EMERGENCY LOWERING
PROCEDURE
Platform Control Console
41 32
