SJ46AJ SJ51AJ SJ63AJ
December 2007 Page 95
Section 2 - Operation Labels
Models SJ46AJ & SJ51AJ

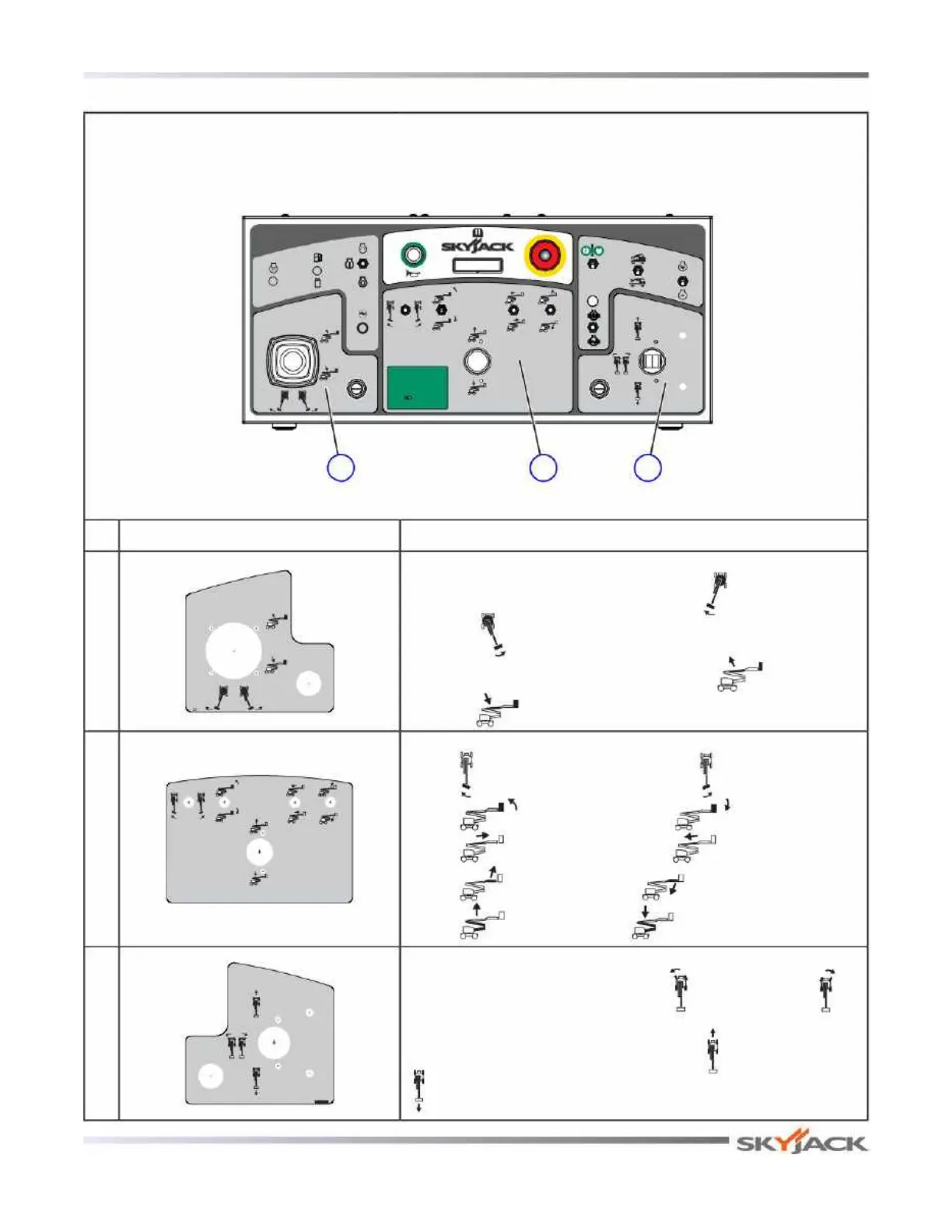

Platform Control Console (Continued)
No. Label Pictorial Description
5
Boom/Turret Controller
Push and hold controller in this direction “ ” to rotate turret to
the left or “ ” to rotate turret to the right.
Push and hold the controller in this direction “ ” to raise main
boom or “ ” to lower main boom.
6
Boom/Jib/Platform Controls
Select “ ” to rotate platform to the left or “ ” to the right.
Select “ ” to tilt platform up or “ ” down
Select “ ” to extend y boom or “ ” to retract y boom.
Select “ ” to move jib up or “ ” to move jib down.
Select “ ” to raise riser or “ ” to lower riser.
7
Drive/Steer Controller
Press rocker switch in this direction“ ” to steer left or “ ” to
steer right.
Push and hold controller in this direction “ ” to drive forward or
“ ” to drive backward.
149432AA149432AA
At Platform Controls:
1. Pull out emergency stop button.
2. Depress and hold foot switch.
3. Activate emergency pump switch.
4. Activate desired boom function.
EMERGENCY LOWERING
PROCEDURE
Platform Control Console (Continued)
5 6 7
