Telescopic Boom Series
Models SJ61T & SJ66T
194312
December 2007 Page 57
Section 3 - System Component Identification and Schematics Service and Maintenance

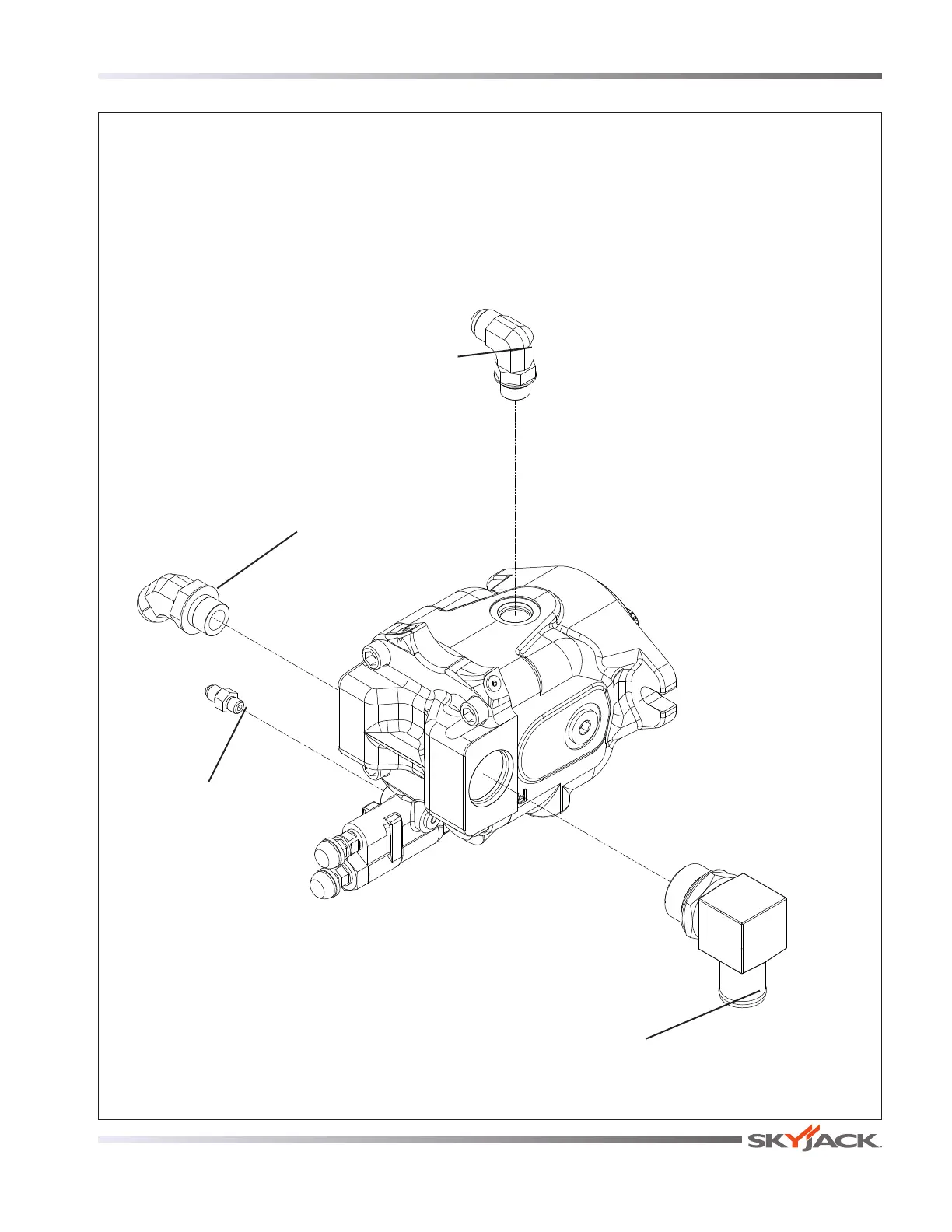

3.9 System Pump and Port Identications
Port P
To High Pressure Filter
L
To Hydraulic Tank
S
To Hydraulic Tank
X
To Main Manifold
M163595AA
