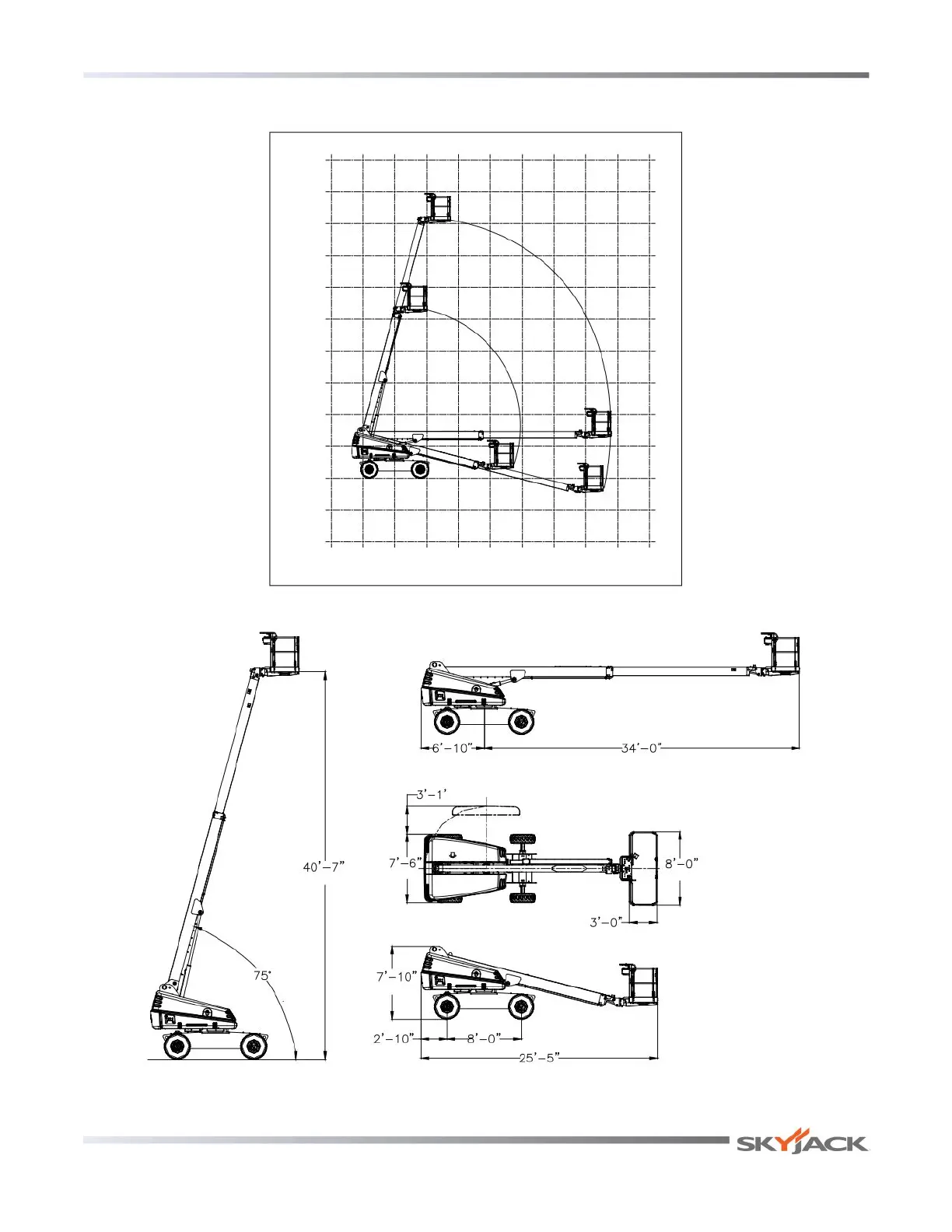

Diagram 3.1 Dimension and Reach Diagram - SJ 40T
- 10
(- 3.05)
- 5
(- 1.52)
0 5
(1.52)
10
(3.05)
15
(4.57)
20
(6.10)
25
(7.62)
30
(9.14)
35
(10.67)
40
(12.19)
Feet (meters)
- 10
(- 3.05)
- 5
(- 1.52)
0
5
(1.52)
10
(3.05)
15
(4.57)
20
(6.10)
25
(7.62)
30
(9.14)
35
(10.67)
35
(10.67)
40
(12.19)
45
(13.72)
50
(15.24)
Figure 3-20. Reach Diagram - 40T
(2.08 m) (10.36 m)
(0.94 m)
(12.37 m)
(2.27 m)
(0.91 m)
(2.44 m)
(2.39 m)
(0.86 m)
(2.44 m)
Figure 3-21. Dimension - 40T
SJ 40T & SJ 45T
