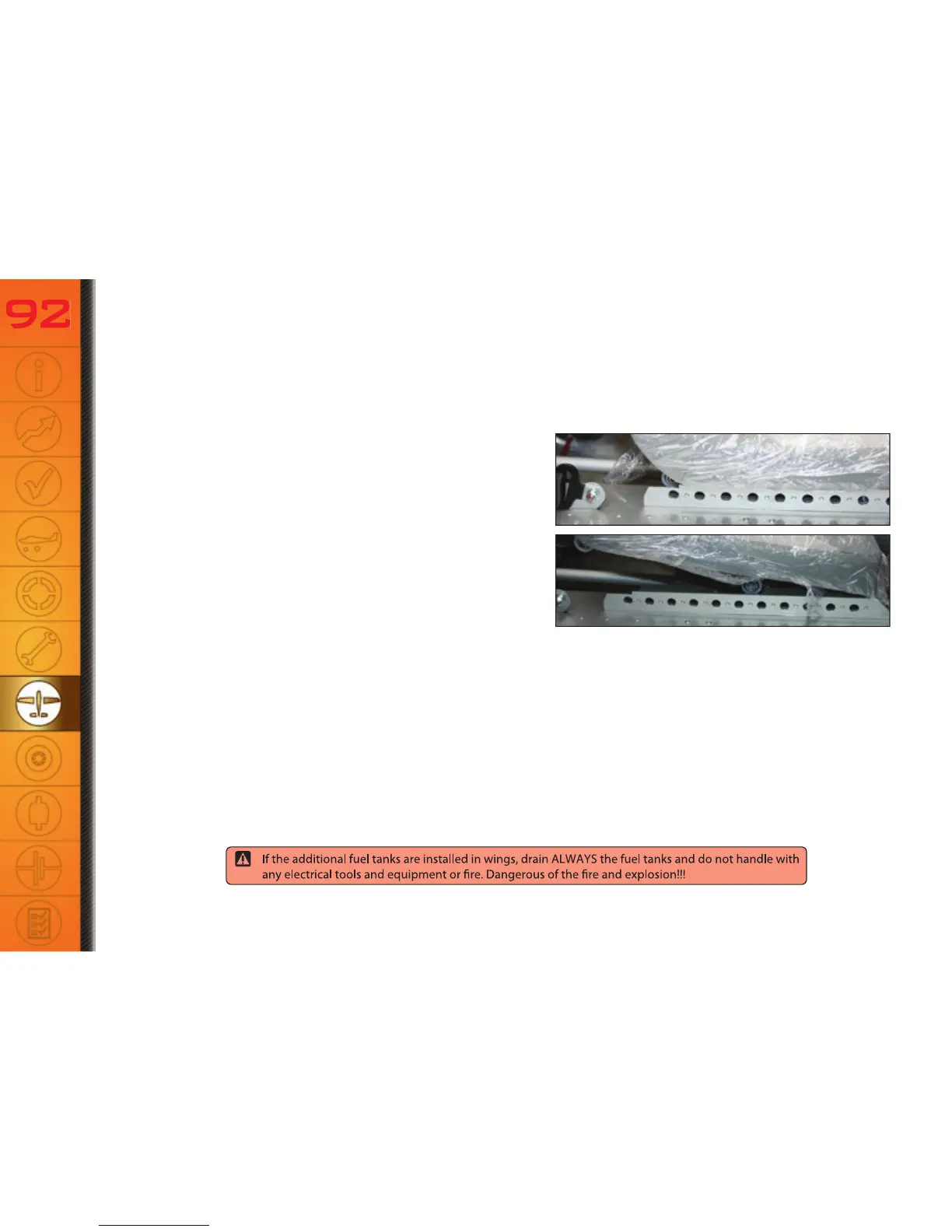

Removal of seats2.3.
- Press lever of the locking mechanism to release the seat and
slide back to rear position until seat rollers reach stops
- Lift up and pull forward the back of the seat about 25 mm
(0.984 in)
- Push backwards and slide out the front rollers from their
guides and lift the seat out
Replace in opposite way.
Disassembly and assembly of outer wings2.4.
Disassembly2.4.1.
Disassembly is not allowed in dust environment.
- Remove covering strips (see B2-2.1) and seats (see B2-2.3)
- Remove covering metal sheets underneath out of the cockpit
- Uncouple the ailerons control pull-rods from angled levers - bolt M5, nut and pin
- Disengage fl ap control coupling - outer pivot 4 mm (0.157 in) diameter with a washer and a pin – shaft coupler
stays in the central section
Removal of inspection covers on the tail:
- Loose the screws on the cover
- Remove the cover
Replace in opposite way.
