Skytrac DSAT-300 Series Battery Replacement Instructions

SkyTrac Systems Ltd.
Document Revision 01.000 DOC0595 Page 5 of 21
Restricted Proprietary and Confidential Information

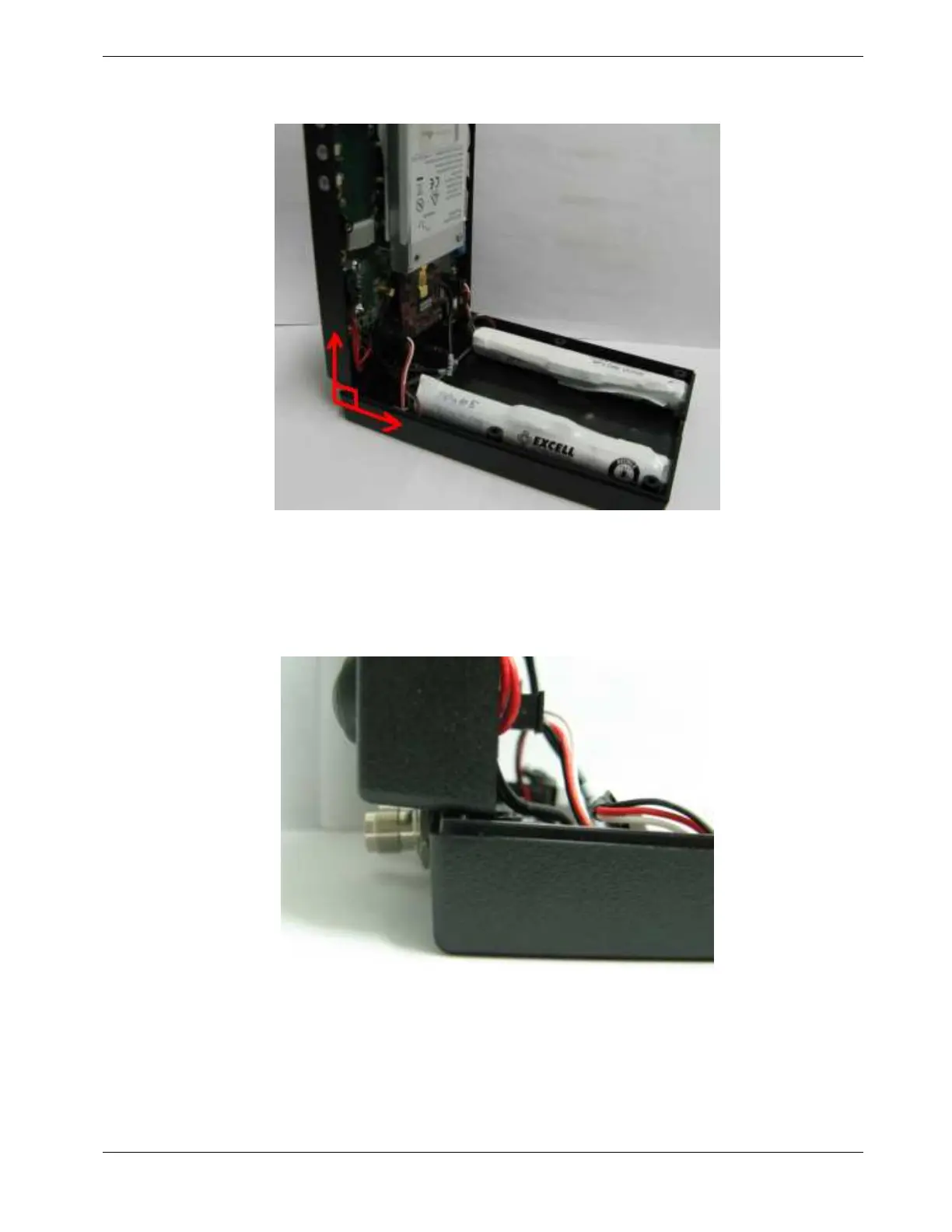

3. Hold the top enclosure perpendicular to the bottom enclosure as shown in Figure 3 .
Figure 3 – Perpendicular Position
Note: It is recommended to ensure that the Top Enclosure is held (or rested against a
wall) on top of the bottom enclosure similar to the Figure below in order to avoid the
connectors otherwise the connectors can short components on the microprocessor.
Figure 4 – Recommended Enclosure “Resting” Position
