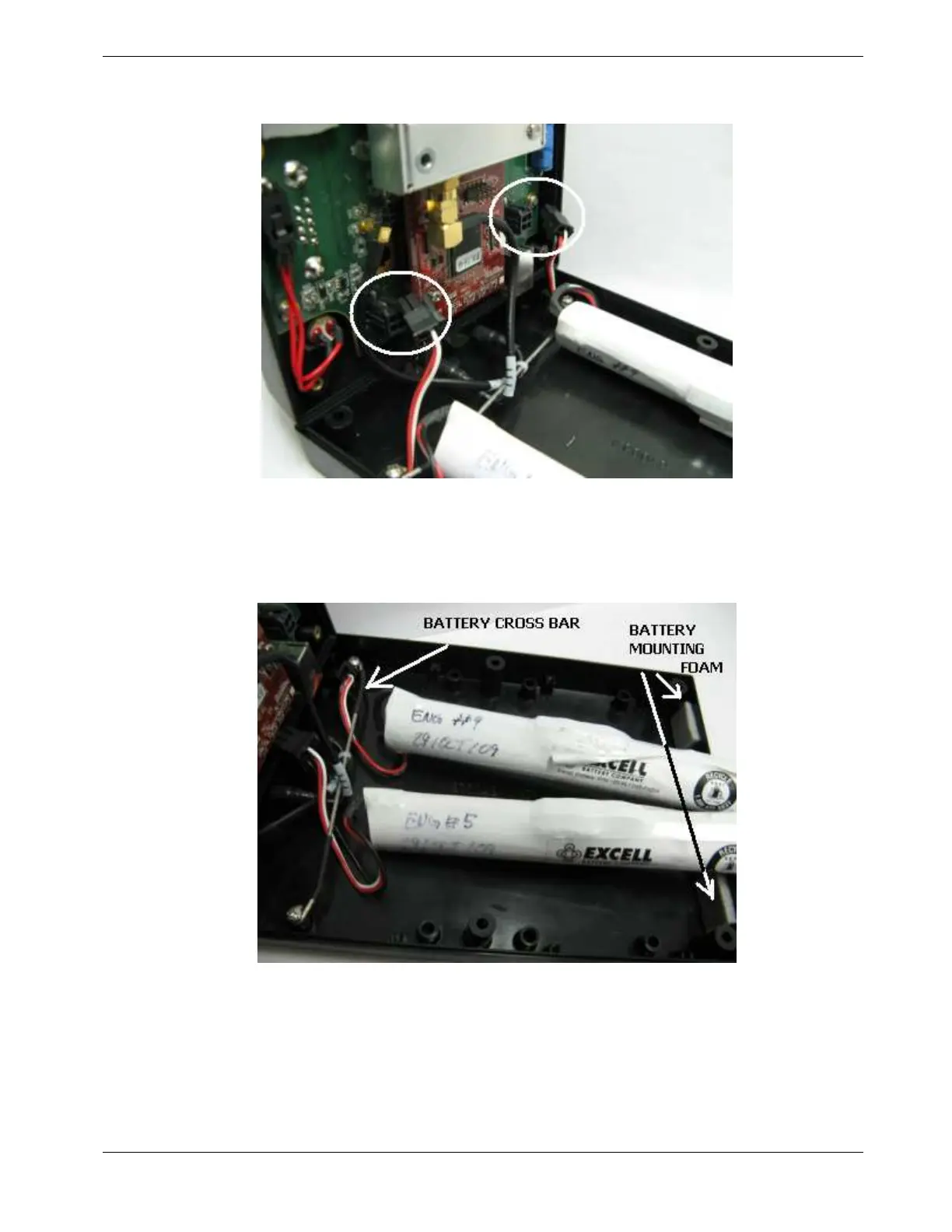

4. Disconnect the Batteries from the PCB.

Figure 5 – Disconnecting the Batteries

5. Release the batteries from between the battery cross bar and battery mounting

foam.

Figure 6 – Battery Release
