Skytrac DSAT-300 Series Battery Replacement Instructions

SkyTrac Systems Ltd.
Document Revision 01.000 DOC0595 Page 8 of 21
Restricted Proprietary and Confidential Information

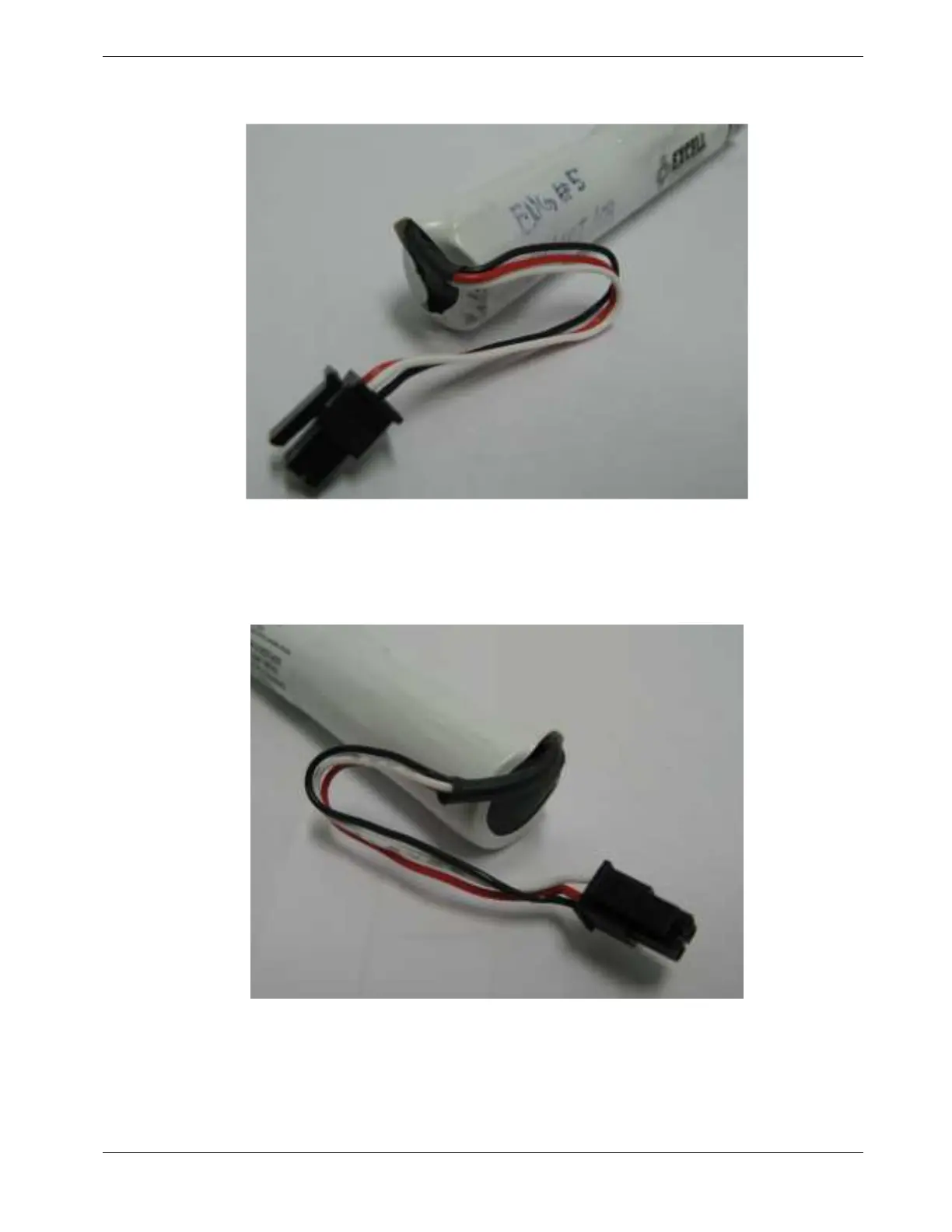

8. Bend the cables to the side with a loop as shown in Figure 9 .
Figure 9 – Bottom Battery Cable Bends
9. Repeat steps 7 and 0 for the second battery but to the left this time to get a battery
with cables bent to the left as shown in Figure 10 .
Figure 10 – Top Battery Cable Bends
