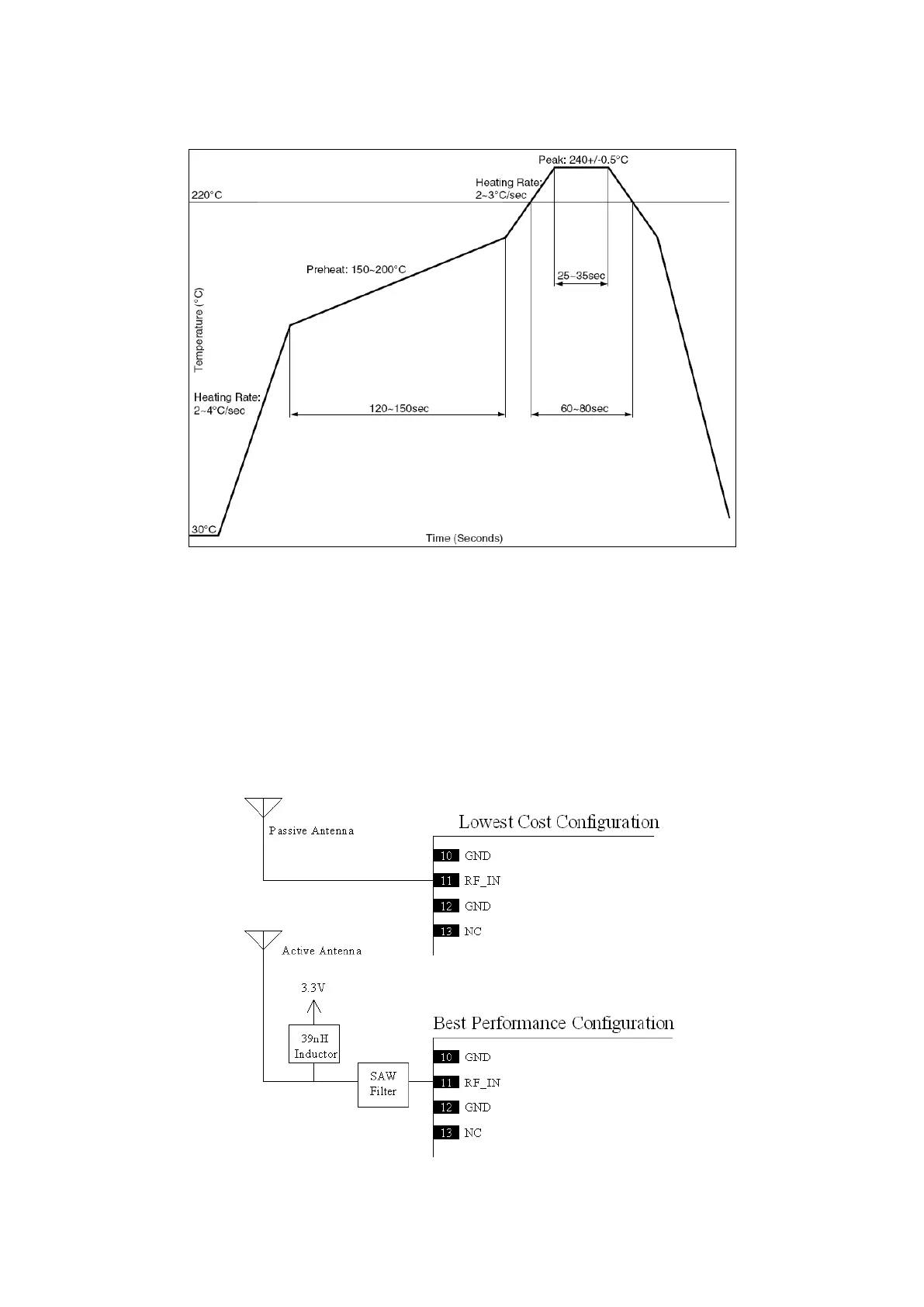

RECOMMANDED REFLOW PROFILE
The reflow profile shown above should not be exceeded, since excessive temperatures or transport times during
reflow can damage the module. Cooling temperature fall rate: max 3°C / sec
ANTENNA SECTION CONSIDERATION
The PX1100S can be used with active antenna or passive antenna. Below are possible design options.
