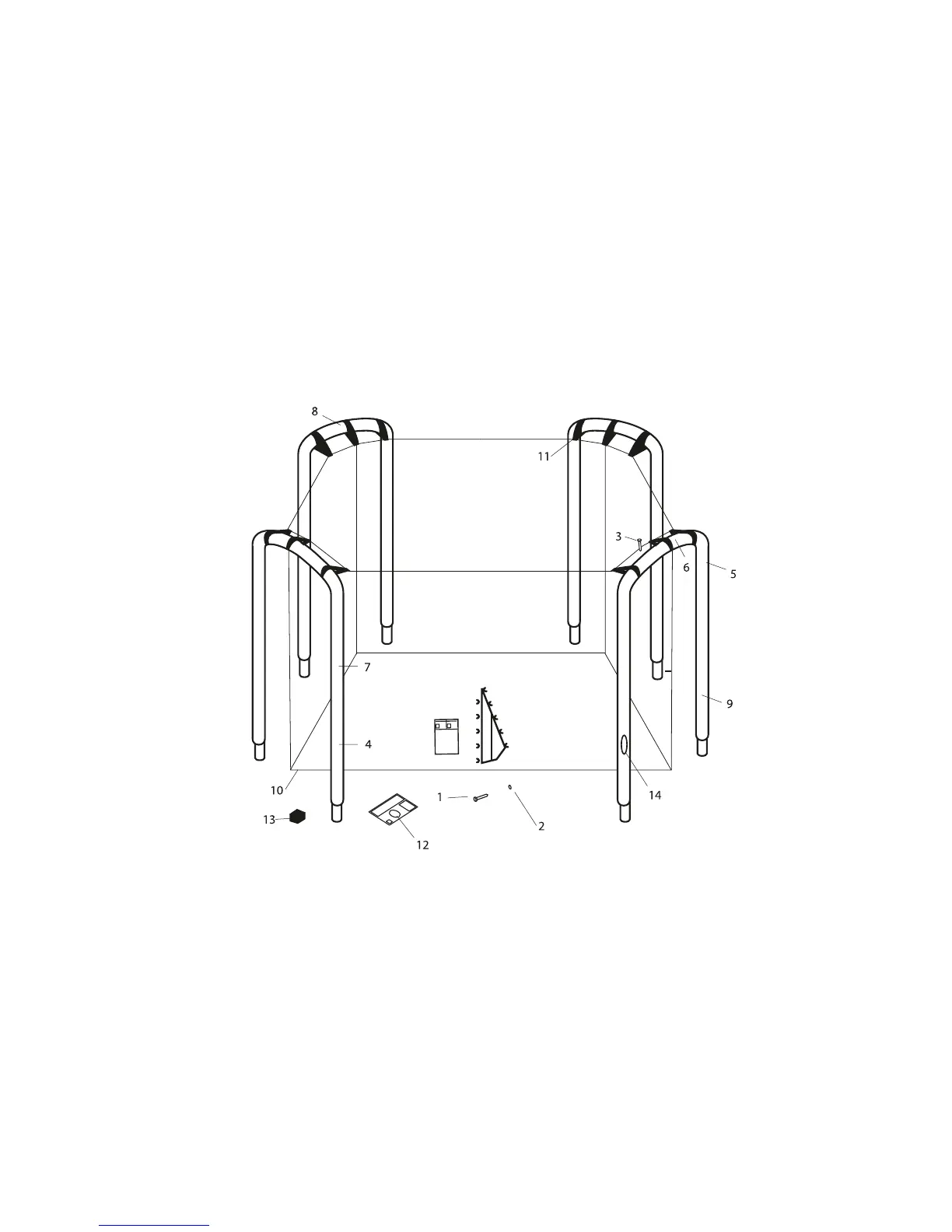

EXPLODED DRAWING AND PARTS LIST
Key Key
No. Qty. Description No. Qty. Description
1 8 Bolt
2 8 Lock Nut 8 4 Short Foam Sleeve
3 24 Self-tapping Screw 9 8 Long Foam Sleeves
4 8 Straight Tube 10 1 Netting with attached Hardware
5 8 L-corner tube 11 12 Strap with D-rings
6 4 Curved Tube 12 1 User’s Manual
7 8 Middle Tubes 13 8 End Cap
14 28 Foam
Specifications are subject to change without notice.
ORDERING REPLACEMENT PARTS
To order replacement parts, visit our web site at www.skywalkertrampoline.com or call our toll-free Customer Care
Hot Line at 1-866-603-Jump (5867), Monday through Friday, 8 a.m. until 5 p.m. Mountain Time (excluding holi-
days). To help us assist you, please provide the following information when calling:
• the MODEL of the trampoline (see the front cover of this manual)
• the KEY NUMBER and DESCRIPTION of the part (see the PARTS LIST above)
• the quantity needed
• the desired method of shipping.
