15

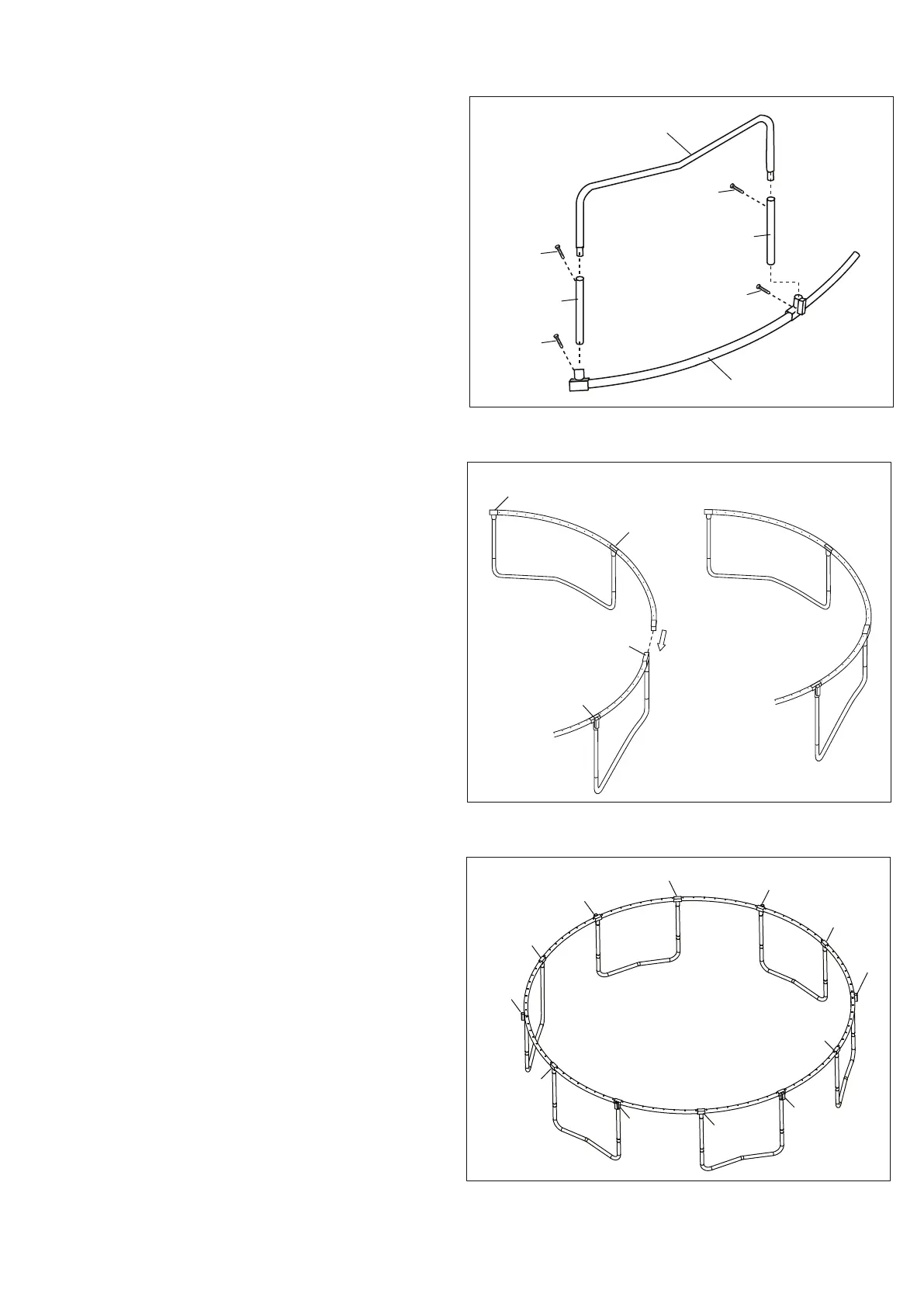

2. Insert the Leg Brace(4) into two Leg Extensions(3)
as shown, then tighten with two M4.8x16mm Self-
tapping screws(15).
Press down on both Leg Extensions(3) at the same
time and fully insert them into the T-joint and Socket ,
then tighten by two M4.8x16mm Self-tapping
screws(15).
Repeat above assembly steps until six frame pieces
are completed.
then flip the trampoline frame pieces over so that the
legs are now holding the trampoline frame pieces up.
15
15
15
Locate two frame pieces as shown and then fully
connect them together.
T-joint
Socket
Socket
Repeat above step 3 in the same way, you should
now have a free standing frame as shown.
Socket
T-joint
T-joint
T-joint
T-joint
T-joint
T-joint
Socket
Socket
Socket
Socket
Socket
4
1
3.
T-joint
3
3
3
2
16
To Next Page
