STEP 3
Leg Brace
(x6)
3
STEP 4

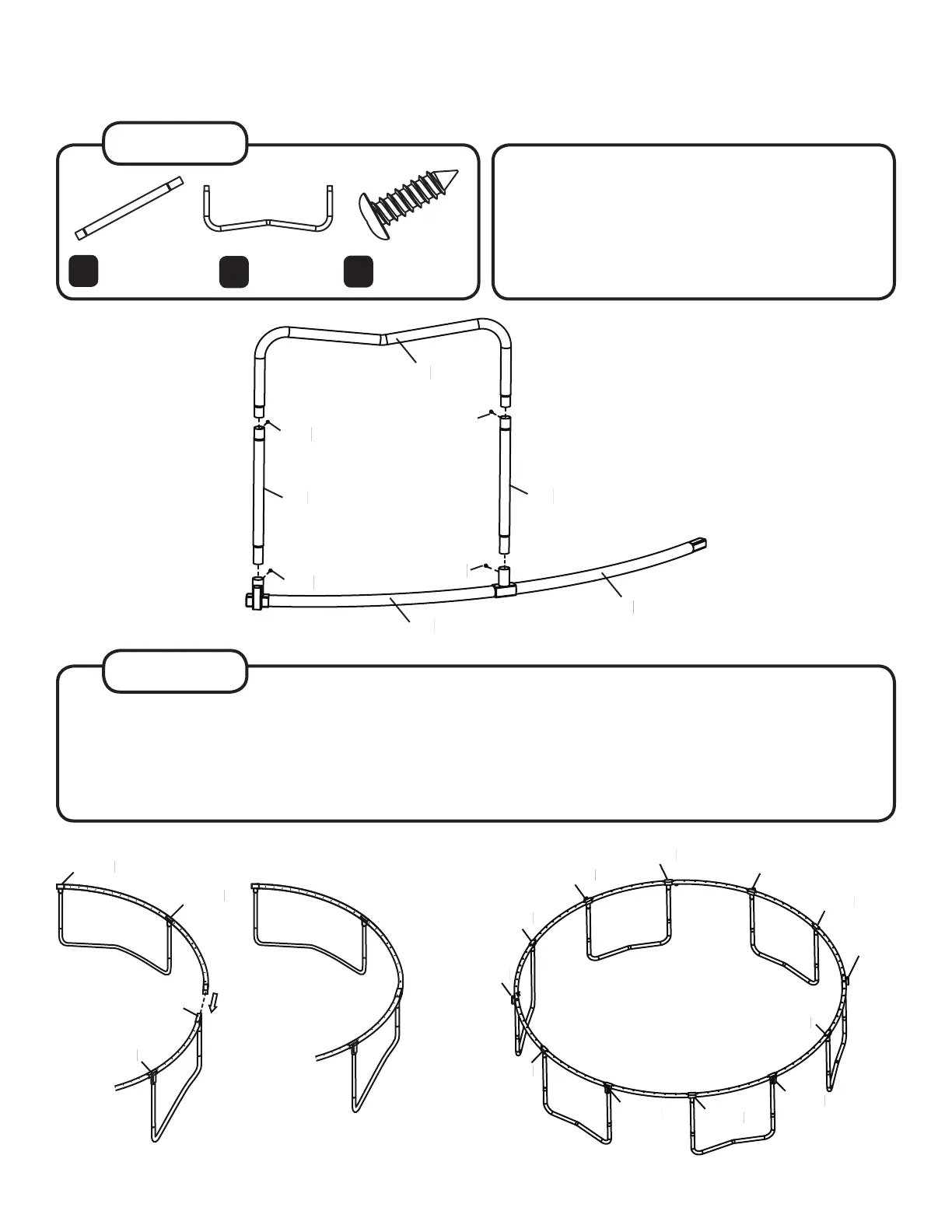

Insert a leg brace (4) into 2 leg extensions (3)
and tighten with 2 self-tapping screws (15). Insert
both leg extensions into the T-joint and socket at
the same time, and tighten with two self-tapping
screws. Repeat this step until you have 6 frame
pieces assembled.
Self-tapping
Screws (x24)
15
This step is a breeze! (But it is a good idea to grab a friend to help). Just flip the 6 frame pieces so that the legs
are now supporting the frame. Now connect 2 frame pieces together. Continue connecting frame pieces until
you have a free-standing frame. (And it might even resemble a trampoline now!)
Remember: Make sure the T-joints and sockets are alternating!
T-joint
T-joint
Socket
Socket
Leg Extension
(x12)
4
T-joint
T-joint
T-joint
T-joint
T-joint
T-joint
Socket
Socket
Socket
Socket
Socket
Socket
(1)
(2)
(3)
(3)
(15)
(15)
(15)
(15)
(4)
