Skyworth 42E66A - Back Panel

EXTERNAL SCHEMATIC AND INSTALLATION

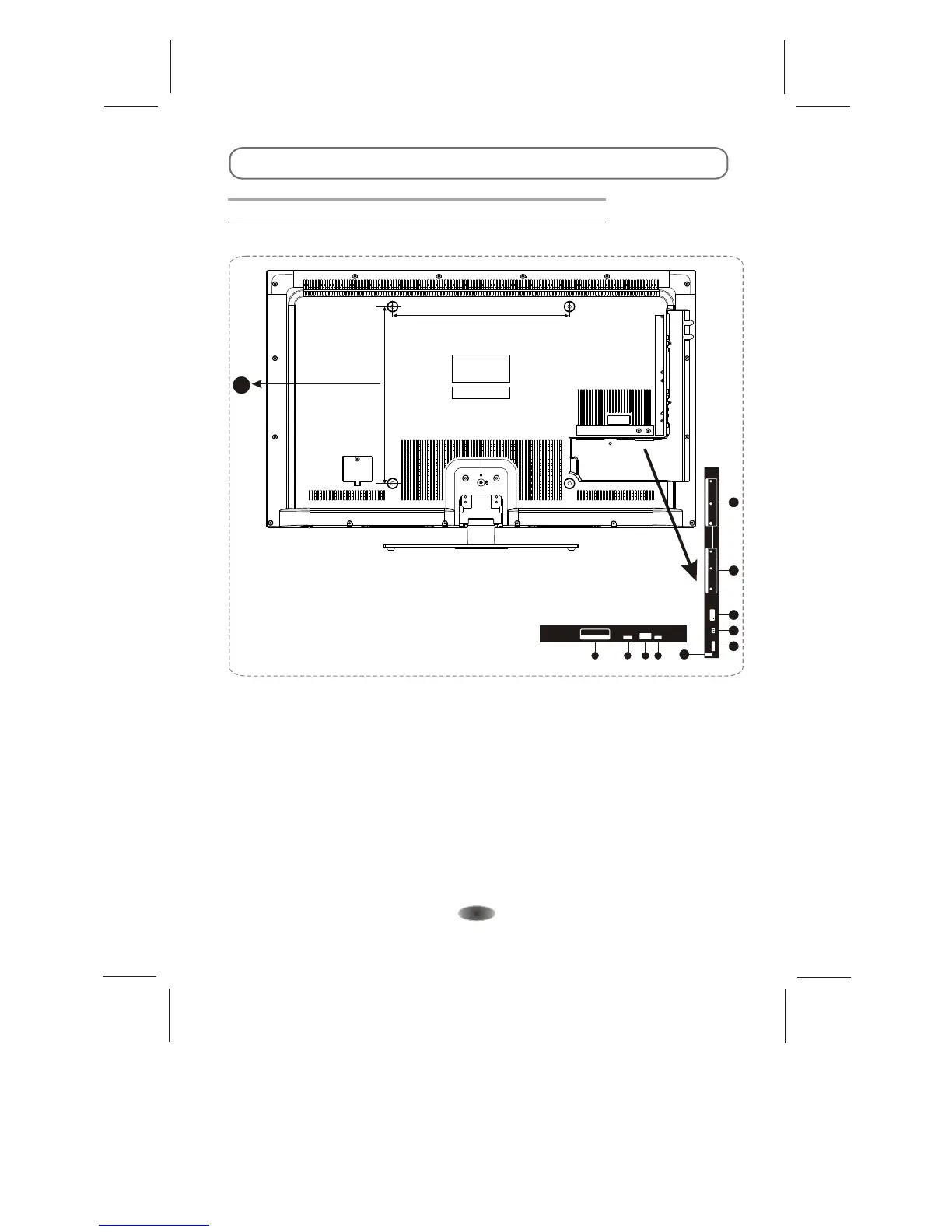

Back Panel
Note: The graphics are for representation only.
-7-
1. HDMI1\HDMI2\HDMI3:Connect HDMI input signal from signal source such as DVD.
2. PC IN: Connect a PC via a VGA cable.
3. PC AUDIO IN: Audio input when the signal is DVI timing.
4. RF IN: Connect a coaxial cable to receive signal from the antenna or cable.
5. (Component input): Connect signal from signal source such as DVD.
Share the same AUDIO input with AV IN.
6. AV IN: Connect AUDIO and VIDEO input signal from signal source such as DVD.
7. USB: USB port.
8. EARPHONE: Audio output, speakers will be muted
9. S/PDIF: Use an AV cable to connect your TV to a compatible audio receiver.
10.Wall Mounting Holes:The four holes can be used to fix your wall mounting plate.
use the M6 screw to install the mounting plate.
for PC and audio input for HDMI
YP P YP P
BR BR
the earphone is plugged in.
Please unscrew first and then
1
2
3 4
PC
AUDIO IN
PC IN RF IN
HDMI3
HDMI2
HDMI IN
9
HDMI1
VIDEO RIGHT
LEFT
AV IN
USB1
USB
5V 500mA
YP
r
P
b
YPbPr IN
1
8
7
6
5
S/PDIF
10
400MM
400MM
