1.3.3 Autonomy
To determine the autonomy of your AES and interpret the battery code dates, consult our website:
www.slat.com
1.3.4 Authorized battery capacities (Ah/20h – 1.75V/ elt)
24
V
48
V
50W 7 to 38Ah 2.1 to 12Ah
75W 7 to 55Ah 2.1 to 12Ah
100W 7 to 55Ah 2.1 to 12Ah
150W 7 to 86Ah 2.1 to 12Ah
200W 7 to 110Ah 4 to 65Ah
300W 7 to 166Ah 4 to 65Ah
400-600W 12 to 225Ah 4 to 140Ah
Check that the batteries are in conformit
y
with the standards effective in the countries where the
y
are used.
2 Installation of your equipment

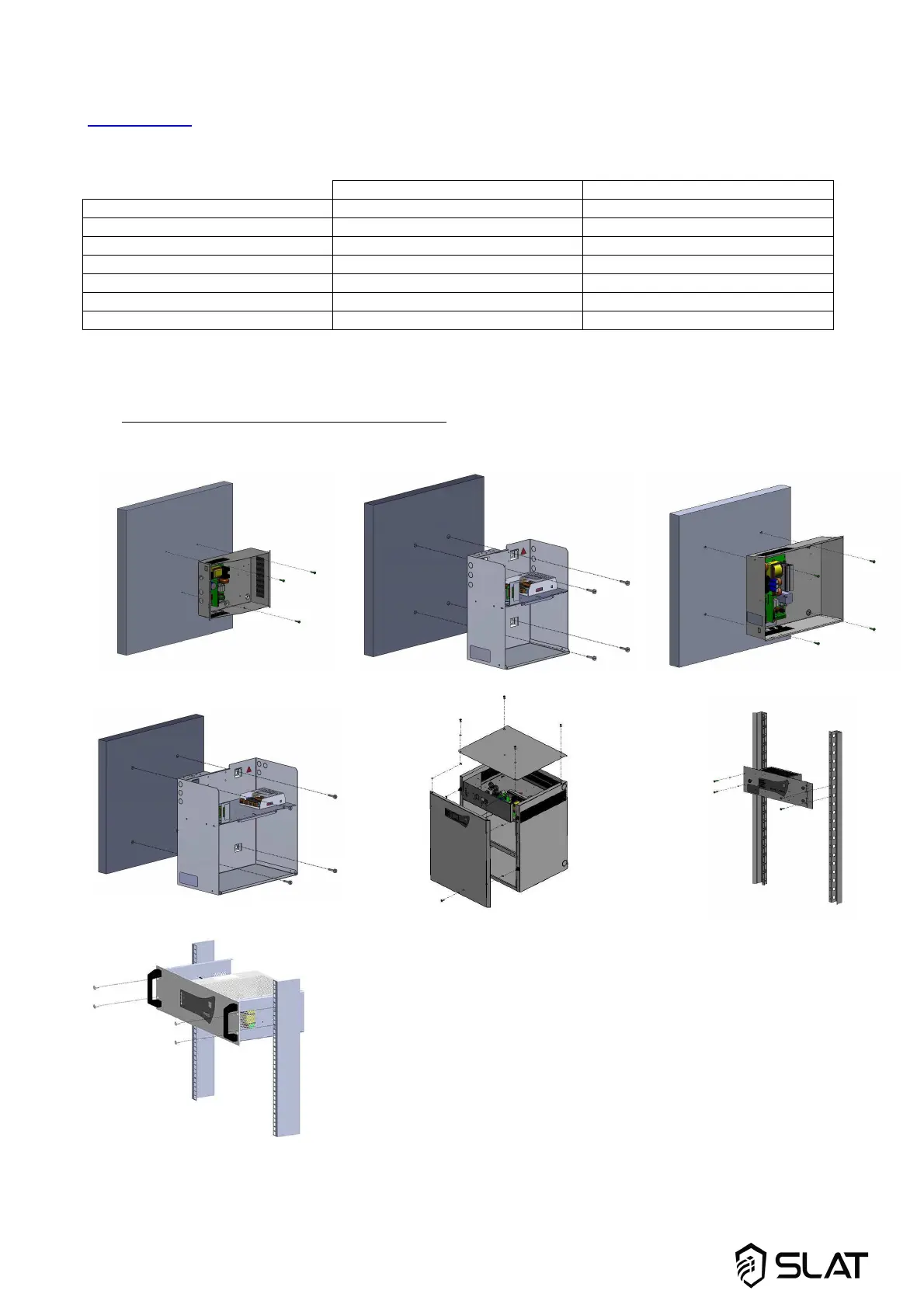

2.1 Mounting and cabinet dimensions (dim.: LxHxW mm)
C24 - Dim : 322x248x126mm - IP 30
C38 – Dim : 289x350x189mm - IP 31
C48 – Dim : 425x345x120mm - IP30
C85
–
Dim : 408x408x224mm
–
IP31
C180 – Dim : 505x610x430mm – IP31
Rack F3U – Dim : 482x133x110mm – IP30
Rack 3U
–
Dim : 483x132x235mm
–
IP30
