Sleipner SM901970 - Specifications

5
519 6
4 2 0 21
-
MC_0274
Thruster Measurements
Measurement
code
Measurement description
mm inch
H Height 194.3 7.6
L Length 205 8.1
W Width 79 3.11
+ W Width including fasteners 90 3.54
(a) Attachment hole from the top 51.5 2.03
(b) Attachment hole from the bottom 92.8 3.65
(c) Attachment hole from the side 37.5 1.5
(d) Distance between attachment hole 121.8 4.8
(e) Attachment hole from the side 45.7 1.8
AMS
MG_0321
H
W
+W
L
(a)
(b)
(c) (d) (e)
MG_0327

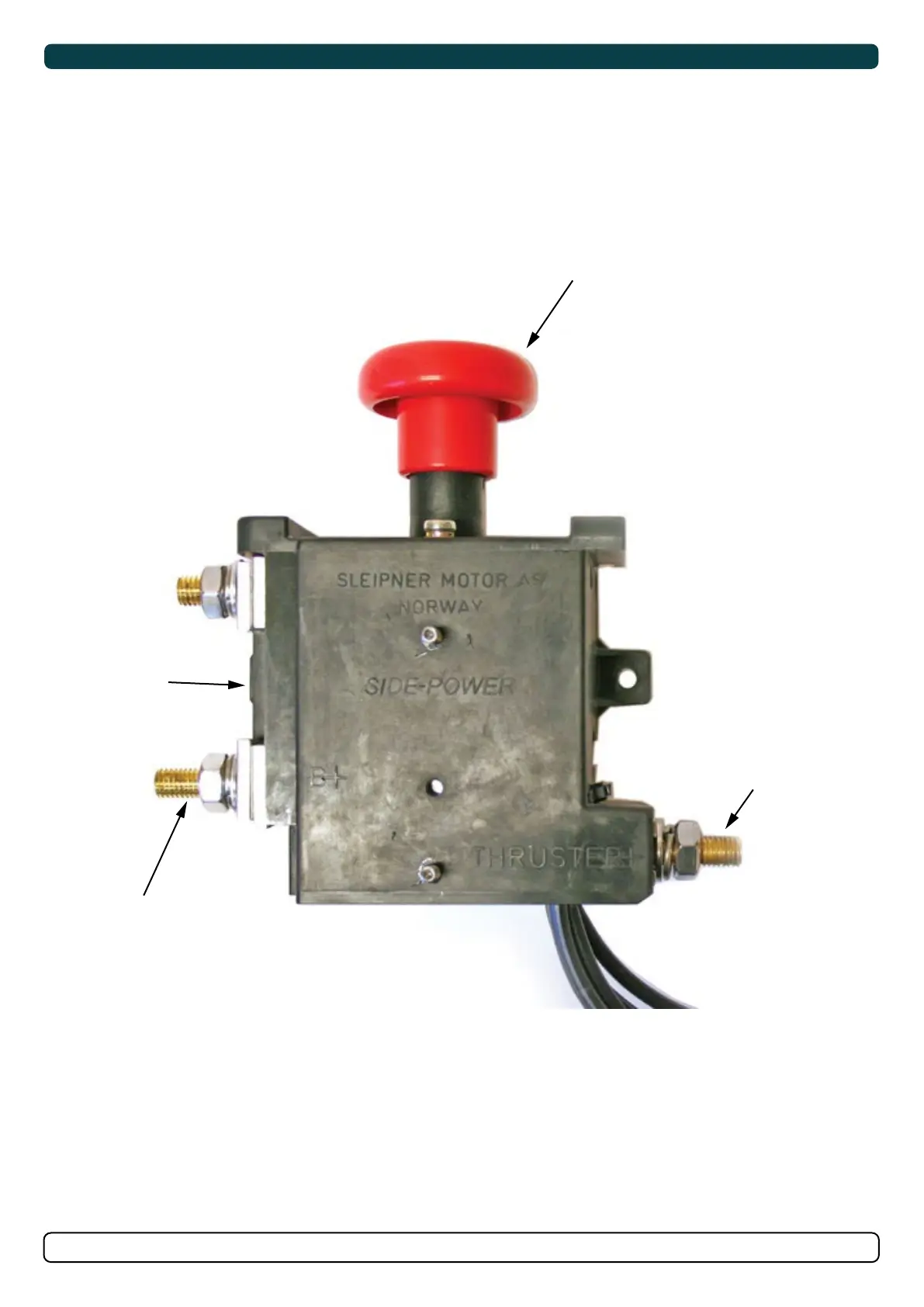

Manual over ride button.
Push to shut OFF
Pull to activate ON
Fuse holder
Main cable(s) from battery(ies)
Main cable(s) to the thruster
Automatic Main Switch
