Installation of clock thermostat
To control accurately the ambient temperature,
the clock thermostat must be installed 1,5 m.
above the floor, on an internal wall shaded from
direct sunlight and from all thermal influences
such as : television, lamps, heater, etc.
The clock thermostat is delivered with a base. With
this accessory, you can simply put it on a furniture.
It is important to check that no external influence
will perturb it (heater, window etc.).
You can also install it on an internal wall.
• Therefore,take out its wall mounting base.
• Fix it to the wall.
• Then replace the product on its base.
Kit RF clock thermostat
and receiver
Wireless clock thermostat and
wall-mounting receiver
9419-218-20/04.10
Wireless clock thermostat,weekly cycle and
IP43 wall-mounting receiver
The RF clock thermostat and receiver kit has been
designed to offer you comfort and energy savings. It
will be easily installed in your home and will control
the ambient temperature according to the program. It
will control through radio waves the RF receiver which
may be fitted close to the boiler or the heating system.
The RF clock thermostat and receiver kit will control
the ambient temperature according to 3 temperature
levels.
• Comfort temperature:this is the temperature for
your hours of presence.
• Reduced temperature:this is the temperature for
your brief absences or during the night.
• Frost protection temperature:this is the minimum
temperature for long absences. It protects your
dwelling from the risk of frost.
FR DE
IT ES NL CZ
GB
The IP43 wall-mounting receiver
The IP43 wall-mounting receiver can be easily installed close to the boiler. The RF clock thermostat will
control the ambient temperature in the dwelling and will transmit ON and OFF signals to the receiver.
햲 Pushbutton for configuration and priority
setting.
햳 Indicator of Power on and coding light.
LED on = product is powered on.
This LED flickers during coding operations
햴 Operation indicator light.
The LED is on when receiver’s output
contact is closed = ON.
!
Important : the transmitter and receiver
assembly is factory coded and is therefore
immediatelyoperational.There is no need to
recode.
Inserting or re-inserting the batteries
This clock thermostat is equipped with a warning light to indicate when the batteries need replacing.
As soon as this indicator lights up at the bottom right-hand side of the display panel, replace the bat-
teries (use two 1.5V LR6 alkaline batteries, life is approximately 12 months).
The device remains programmed for 60 seconds while batteries are being replaced.
Reset
Before beginning the programming of the device,
please slide cover down and press RESET with
the tip of a pen.

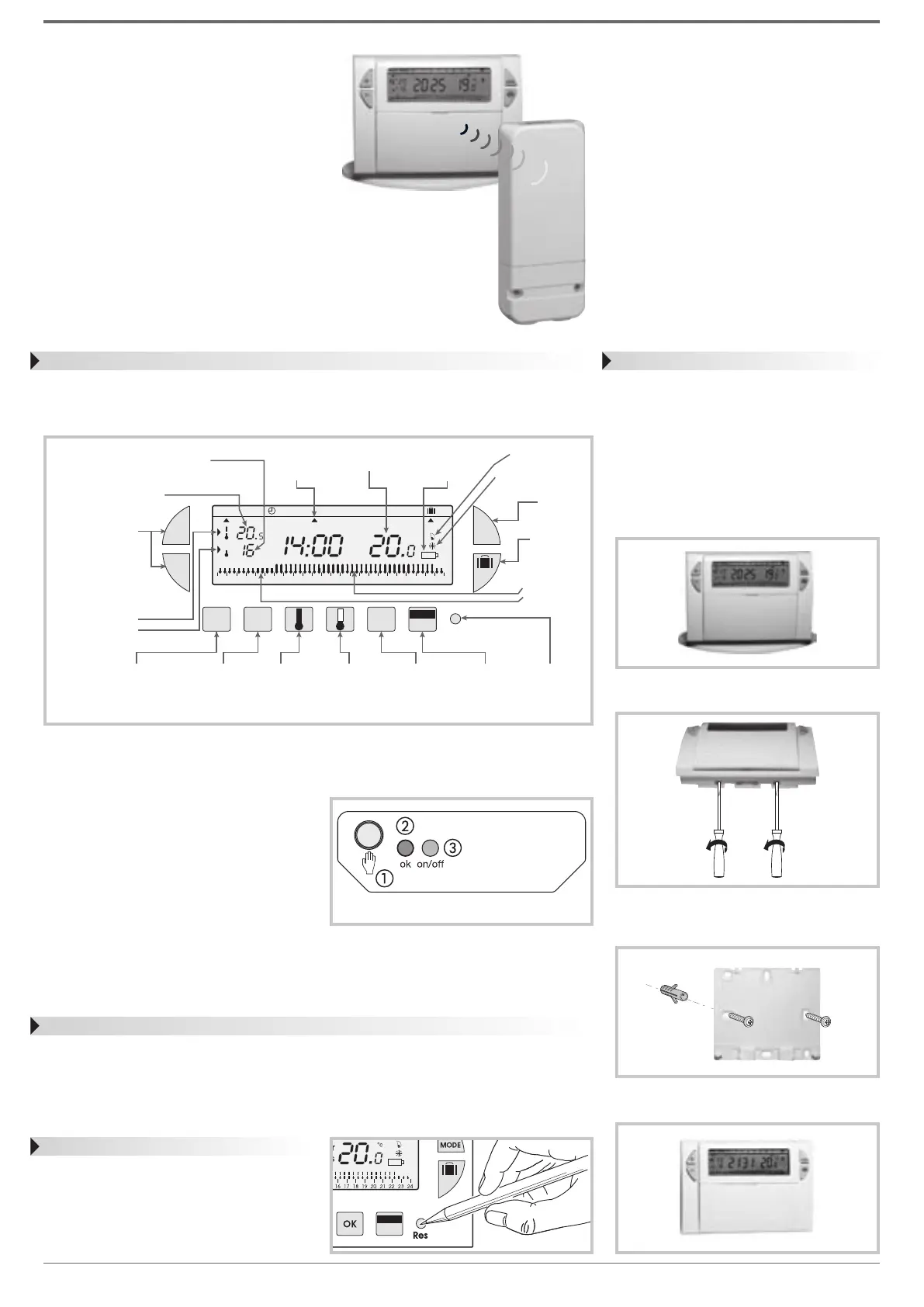

Product presentation
The clock thermostat
Easy to install,easy to program,the RF clock thermostat and receiver kit will allow you to control your-
heating system in accordance with your way of life.
Auto Manu 1234567
¡c
¡c
¡c
+
-
OK
PROG
P1-P4
DAYS
1-7
MODE
0000
h
Res
timer
days
+/– buttons for
adjusting settings
Ambient
temperature
Warning light
to indicate
battery wear
Prolonged
absence
(holidays)
Comfort
temperature
setting
Reduced
temperature
setting
Validation Hour
counter
setting
RESET
Comfort
temperature
Reduced
temperature
P1 to P4
programme
selection
Viewing of
comfort and
economical
periods
Pointer
indicating day
of the week
Heating or
air conditioning
start-up indicator
Mode
selection
Days of the
week selection
(1=Monday, 2=Tuesday....
7=Sunday)
Indicator for
current
temperature level
comfort
or reduced
0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24
0000
h
