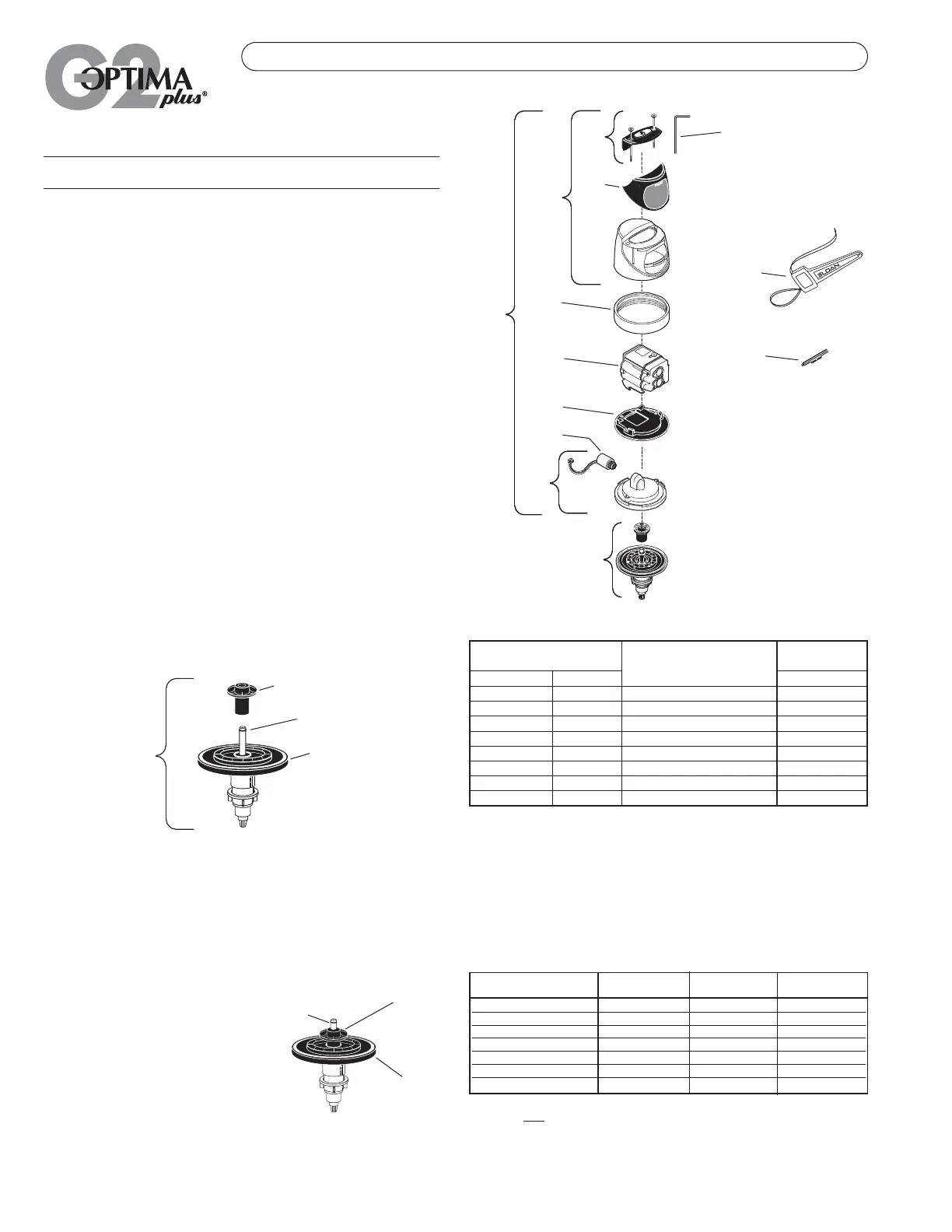

SENSOR MODULE COMPONENT PARTS
Item Code Part
No. No. No. Description
1. 0325160 EBV-138-A G2 Cover/Ring/Sensor Assembly — Water Closet
0325161 EBV-139-A G2 Cover/Ring/Sensor Assembly — Urinal
0325166 EBV-149-A G2 Cover/Ring/Sensor Assembly —
Water Closet w/ Zurn Ring
0325167 EBV-150-A G2 Cover/Ring/Sensor Assembly —
Urinal w/ Zurn Ring
2. 0325168 EBV-142-A Cover Assembly
3. 0325172 EBV-130-A Override Button Assembly (includes screws &
hex wrench)
0325170 EBV-132-A Screws (2) and Hex Wrench Only
4. 0325169 EBV-131 Lens Window Cover
5. 0325804 EBV-14 Locking Ring
3325524 EBV-31-A Locking Ring — for Zurn Valves
6. 3325450 EBV-129-A-C G2 Electronic Module — Water Closet
3325451 EBV-129-A-U G2 Electronic Module — Urinal
7. 0325171 EBV-134 Cover Rest Plate
8. 3325456 EBV-145-A G2 Inside Cover Assembly (includes solenoid)
9. 3325453 EBV-136-A Solenoid (For G2 Modules only)
10. SEE CHART Flex Tube Diaphragm Kit
Accessories
11. 0325107 EBV-91 Trimpot Adjustment Screwdriver
12. 0325823 EBV-22 Strap Wrench
13. 0325159 EBV-137 7/64” Hex Wrench
FLEX TUBE DIAPHRAGM INSIDE PARTS KITS
5325056 EBV-83 O-ring — 6 per package
REGULATORS
The flush volume of the Flex Tube
Diaphragm Kit is control by the
Regulator. Regulators are identified by
color. Some Flex Tube Diaphragm Kits
are supplied with multiple Regulators.
The installer must make sure the
proper Regulator is used when
installing the Flex Tube Diaphragm Kit.
SENSOR OPERATED FLUSHOMETERS
2
3
4
5
1
7
8
9
12
11
13
6
10
0-RING
REGULATOR
(MUST BE INSTALLED
PAST 0-RING)
FLEX TUBE
DIAPHRAGM
† The EBV-1020-A and EBV-1022-A Kits are supplied with multiple Regulators.
‡ A 0.5 gpf (1.9 Lpf) Urinal kit can be converted to a 1.0 gpf (3.8 Lpf) by cutting and removing
the smooth A-164 Flow Ring from the Guide.
§ For a 4.5 gpf (17 Lpf) Water Closet flush use the EBV-1020-A Kit with the White Regulator,
and cut and remove the A-164 Flow Ring from the Guide.
Color of Regulator to be used with Flex Tube Diaphragm to obtain the listed flush volume.
FLEX TUBE
DIAPHRAGM KIT †
APPLICATION
REGULATOR
KIT NO. CODE NO.
COLOR
EBV-1023-A 3325003 URINAL-0.5 gpf/1.9 Lpf GREEN
EBV-1022-A 3325000 URINAL-1.0 gpf/3.8 Lpf ‡ GREEN
EBV-1022-A 3325000 URINAL-1.5 gpf/5.7 Lpf BLACK
EBV-1020-A 3325001 URINAL-3.5 gpf/13.2 Lpf WHITE
EBV-1020-A 3325001 CLOSET-1.6 gpf/6.0 Lpf GREEN
EBV-1021-A 3325014 CLOSET-2.4 gpf/9.0 Lpf BLUE
EBV-1020-A 3325001 CLOSET-3.5 gpf/13.2 Lpf WHITE
EBV-1020-A 3325001 CLOSET-4.5 gpf/17.0 Lpf § WHITE
REGULATOR (Sold 6 per package)
The EBV-1020-A and EBV-1022-A Kits are supplied with multiple Flush Volume Regulators.
The Installer must
use the correct Regulator when installing the kit.
FLUSH VOLUME REGULATOR PART CODE
AND FIXTURE COLOR NO. NO
URINAL-0.5 gpf/1.9 Lpf GREEN EBV-95 5325122
URINAL-1.0 gpf/3.8 Lpf GREEN EBV-95 5325122
URINAL-1.5 gpf/5.7 Lpf BLACK EBV-102-2 5325129
URINAL-3.5 gpf/13.2 Lpf WHITE EBV-102-1 5325130
CLOSET-1.6 gpf/6.0 Lpf GREEN EBV-95 5325122
CLOSET-3.5 gpf/13.2 Lpf WHITE EBV-102-1 5325130
CLOSET-2.4 gpf/9.0 Lpf BLUE EBV-101 5325128
FLEX TUBE
DIAPHRAGM
KIT
REGULATOR
FLEX TUBE DIAPHRAGM
O-RING (Part # EBV-83)
