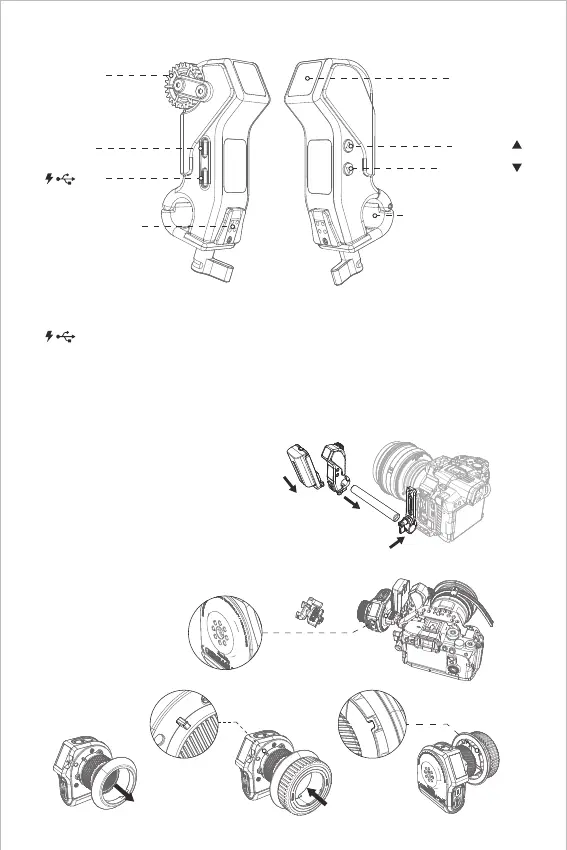

4. Wireless Receiver Motor
OLED Screen
φ15mm Rod Opening
M0.8 Gear
REC Port
Port
Battery Plate Port
Up / Down Button: 1. Channel Adjustment; 2. Motor Number Adjustment.
REC Port: Connect the camera REC port for wired control.
Port: Power supply and communication Port.
Battery Plate Port: Used with Battery Plate (ID: 3777), compatible with NP-F batteries.
Instruction of Product Installation and Power Supply
1. Installation Guide for Wireless Receiver Motor
Install the Wireless Receiver Motor on
the camera side by use of the included
accessories.
①
②
③④
Handgrip Adapter
Up Button
Down Button
2. Installation Guide for Wireless Handwheel Controller
2.1 Install the Wireless Handwheel Controller on the camera side by
use of the Handgrip Adapter via 1/4"-20 threaded hole.
2.2 Marking Disk Replacement / Installation.
Align with the
slot for installation
4
