USB-C to D-Tap Cable
DC 5521
4.1 Use the USB-C to D-Tap Cable (ID: 3266) or USB-C to DC Cable (ID: 3268) to connect the
V-mount battery for powering the Wireless Receiver Motor
Wireless Receiver
Motor Port indication
Safety lock is in locking

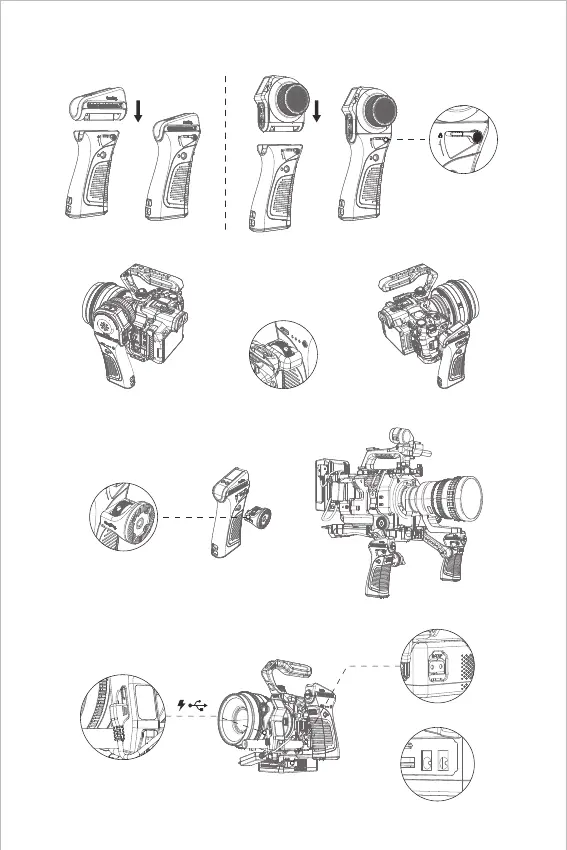

3. Installtion Guide for Wireless Handgrip
4. Instruction for Wireless Receiver Motor Power Supply
3.1 Combined Installation of Electronic Controller Module, Wireless Handwheel Controller, and
Wireless Handgrip.
3.2 The Wireless Handgrip is suitable for both left and right hands.
3.3 Installation Guide for Shoulder Rig Adapter,
VCT-14 Extension Arm, and ARRI Rosette
Handgrip AdapterLeft hand holding Right hand holding
Shoulder Rig Adapter Wrench Reinforce
5
