SmallRig MagicFIZ - REC Wiring and Control

Wireless Receiver Motor
Port indication

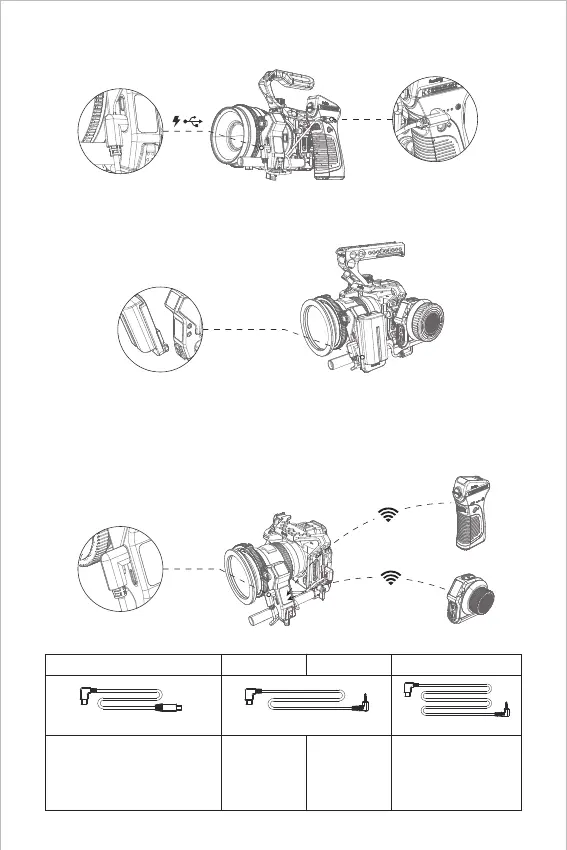

4.2 Use the standard USB-C to USB-C cable to connect the Wireless Handgrip for powering the
Wireless Receiver Motor, achieving the cabled control.
4.3 Power the Wireless Receiver Motor through the Battery Plate.
5.1 Connect one end of the control cable with the Wireless Receiver Motor and the other end with
the camera; wirelessly control the video REC recording through the
Wireless Handwheel Controller and Electronic Controller Module.
Wired control and power
supply of the Wireless Handgrip
Wired Control of the
Wireless Handwheel Controller
Powered by the Battery Plate
Compatible with NP-F batteries
Wireless Receiver
Motor REC Port
REC
5. Instruction for REC Wiring
Sony Z CAMPanasonic
FUJIFILM
A7, A7R, A7S, A7II, A7RII, A7SII, A7SIII,
FX3, A7III, A7RIII, A7IV, A7R IV, A9, A9 II,
A5100, A6000, A6100, A6300, A6400,
A6500, A6600, RX100 III, RX100IV,
RX100V, RX100 VI, RX100 VII
ID: 2971 ID: 3325ID: 2970
X-T3, X-T4,
X-T20, X-T30
S5, S1, S1R, S1H,
BS1H, GH4, GH5,
GH5S, GH6, G9,
G95
E2, M4, S6
BGH1(Panasonic)
