This document provides instructions for the Smart Electric Curtain, model WPC010, with motor P361-US, version 1.0, dated 20200915. It covers installation, operation, and integration with smart home systems.

Function Description

The Smart Electric Curtain is an automated curtain system designed for indoor use. It features a telescoping rod that can be adjusted to various widths, allowing for center-open curtain operation. The system is controlled via a remote control and can also be integrated with the "Tuya Smart" app for smartphone control, as well as voice control through Alexa. Key functionalities include opening, closing, and stopping the curtain at desired positions, setting limit positions, and enabling/disabling manual mode. The system is designed to automate the opening and closing of curtains, enhancing convenience and smart home integration.

Important Technical Specifications

Model: WPC010
Motor: P361-US
Version: 1.0
Date: 20200915
Telescoping Rod Width:
- Minimum: 6.52 cm
- Maximum: 400 cm (with an intermediate size of 220 cm shown)
Curtain Height Compatibility: Less than 3 meters
Motor Working Temperature: -10 ℃ to +50 ℃
Remote Control Battery: 3V (CR2032) (Battery not included)
Wi-Fi Connectivity (for Tuya Smart app): Requires 2.4GHz Wi-Fi network (not compatible with 5GHz Wi-Fi for initial setup)

Usage Features

Installation and Setup

The manual provides detailed steps for installation, including:

Preparation: Lists necessary tools such as a pencil, screwdriver, scissors, spirit level, tape measure, drill, and gloves. It emphasizes that installation should ideally be done by two people.
Adjusting Curtain Rod: Involves unlocking the rod (steps 01 and 03) and adjusting its width (step 02, marked 'W').
Adjusting Truck: Step 04 and 06 show how to adjust the truck using screws, noting that only one side has adjustment screws. Step 05 illustrates the left and right movement of the truck.
Hanger Installation: Step 07 details how to install hangers (part 'd' x36) and clips (part 'c' x2) onto the curtain rod.
Truck Trim Stripe Installation: Step 08 shows how to install the trim stripe (part 'f' x1) along the curtain rod, indicating it needs to be cut to length.
Brackets Installation: Step 09 provides instructions for installing brackets (part 'a' and 'b') at specific intervals (10mm, 50cm, 50cm, 50cm, 50cm, 50cm, 10mm) for both side-wall and ceiling-wall installations. It shows how to attach the brackets and secure them.
Side-Wall Installation (P12-P15):
- Step 01: Shows installation of side-wall brackets (part 'e' 3pcs/M) with dimensions (10cm length, 5cm height, 3.5cm depth). It also shows how to secure the curtain rod to these brackets using screws (part 'h').
- Step 02: Illustrates marking positions for drilling on the wall.
- Step 03: Details drilling and securing the brackets to the wall using screws and anchors (part 'g2').
Ceiling-Wall Installation (P16):
- Step 01: Shows the overall setup for ceiling installation.
- Step 02: Illustrates marking positions for drilling on the ceiling.
- Step 03: Details drilling and securing the brackets to the ceiling using screws and anchors (part 'g1').
Curtain Installation (P17): Shows how to attach the curtains (part 'm') to the installed hangers.
Motor Installation (P18): Provides a step-by-step guide on how to insert and secure the motor into the curtain rod, including rotating it 90 degrees.
Side-Wall Valance Installation (Optional, P19):
- Step 01: Instructs to bend the two valance rails (part 'L' x2) to 90 degrees along the dotted line.
- Step 02: Shows the valance rail attached to the curtain system.
- Step 03: Illustrates the final appearance with the valance.
Ceiling-Wall Valance Installation (Optional, P20):
- Step 01: Shows the valance bracket (part 'k') and valance rail (part 'L') for ceiling installation.
- Step 02: Illustrates the valance rail attached to the curtain system.
- Step 03 & 04: Details securing the valance brackets to the ceiling using screws and anchors (part 'g1').

Remote Control Operation

Remote Control Layout (P21): The remote control features channels (1-6), signal light, Up/Open, Stop, and Down/Close buttons. Channels 1-5 are for individual control, while channel 6 is undeveloped.
Set Limit Position Instruction (P23-P25):
- Clear Limit Position: Long press the connecting button on the motor for 3 seconds until the indicator light flashes, then long press again until the light turns off.
- Manual Open/Close: Manually open or close the curtain to the desired fully open or fully closed position.
- Remote Control Connection:
  1. Long press the connecting button on the motor for 3 seconds (red light on).
  2. Select a channel on the remote control.
  3. Press the connecting button on the motor again (red light flashing).
  4. Press the "Stop" button on the remote control. The motor's red light will stop flashing, indicating successful connection.
  5. Repeat for additional curtains, selecting a different channel each time. Note: Resetting the limit position is required after adjusting the truck length.
Delete Remote Control (P26): Long press the connecting button on the motor, then long press the "Channel +" and "Stop" buttons on the remote control for 5 seconds.

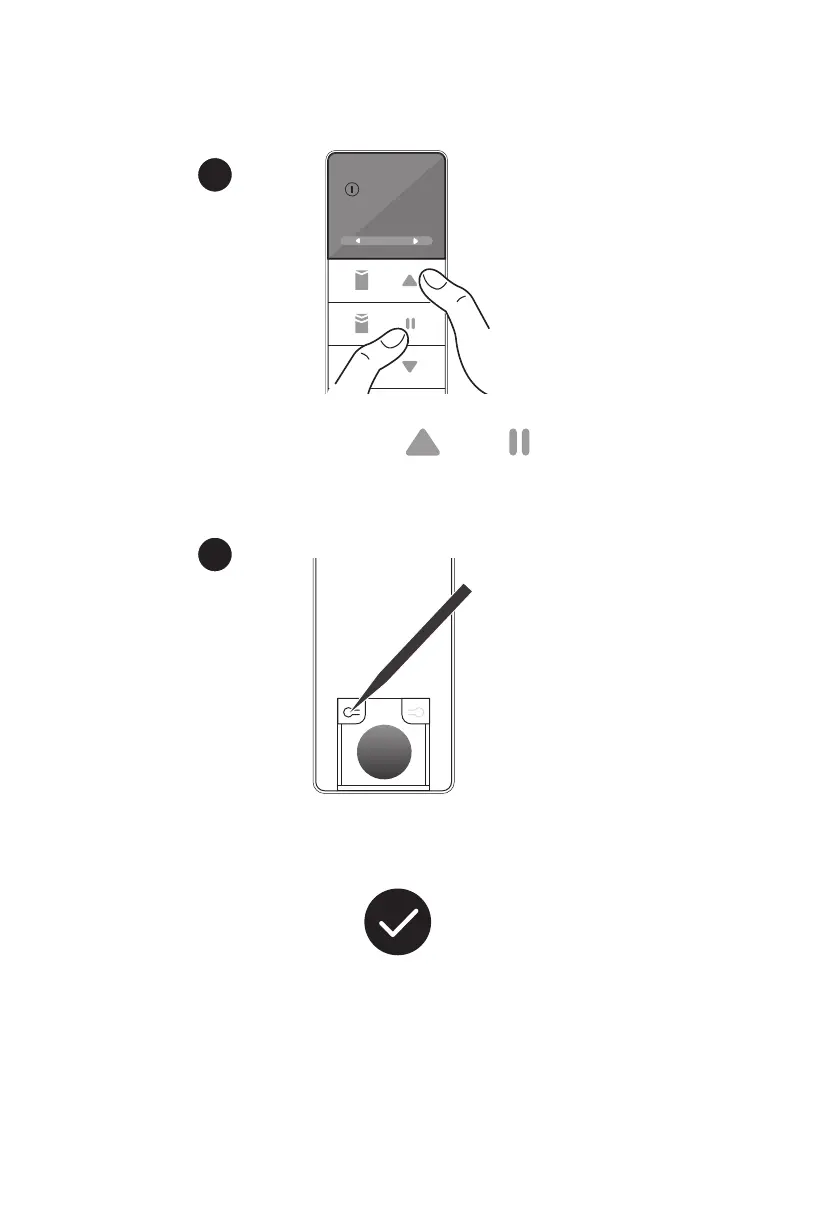

Enable Manual Mode (P27): Long press the "Channel +" and "Stop" buttons on the remote control for 5 seconds, then press the connecting button on the motor within 5 seconds.
Disable Manual Mode (P28): Long press the "Channel -" and "Stop" buttons on the remote control for 5 seconds, then press the connecting button on the motor within 5 seconds.

Smart Home Integration

"Tuya Smart" App User Manual (P29-P32):
1. Search and Download: Search for "Tuya Smart" app on your smartphone.
2. Add Device:
  - Ensure phone is connected to 2.4GHz Wi-Fi.
  - Open the app, click "+" to add a device.
  - Select "Curtain" under "Small Home Appliances".
  - Reset the device by quickly pressing and holding the motor's connecting button 4 times until the LED light flashes.
  - Confirm the indicator is rapidly blinking in the app and proceed.
  - Enter Wi-Fi password.
  - The app will scan, register, and initialize the device.
  - Once added, the device will appear in the app.
3. App Interface: The app allows control of the curtain (open, close, stop), displays current state (e.g., 50%), and offers options for scheduling and settings.
Alexa & Voice Control (P33-P36):
1. Link Tuya Smart to Alexa:
  - Open the Alexa app and search for "Tuya Smart" skill.
  - Enable the skill.
  - Link your Tuya Smart account by entering your credentials.
  - Once linked, close the window to discover smart home devices.
2. Discover Devices: In the Alexa app, initiate device discovery. Alexa will search for and connect to your Smart Electric Curtain.
3. Voice Commands: Once discovered, you can use voice commands like "Alexa, turn on hallway light" (example provided, implying "Alexa, open the curtain" or "Alexa, close the curtain" would be applicable).

Maintenance Features

Safety Precautions (P2):
- Do not use outdoors or in high-temperature environments. Avoid direct sun exposure.
- Do not impact or drop parts; do not disassemble or repair.
- Do not use volatile chemicals (thinners, benzene) to clean parts, as this may cause fire or damage.
- Follow wiring diagrams during installation.
- Avoid splashing water on the shade rail or motor to prevent problems, leakage, or fire.
Battery Replacement (P21): The remote control uses a 3V CR2032 lithium cell battery, which is not included. Instructions for replacing the battery are implied by the diagram showing the battery compartment.
Resetting Limit Position: The manual explicitly states that the limit position needs to be reset after adjusting the truck length, which is a key maintenance step for proper operation.
